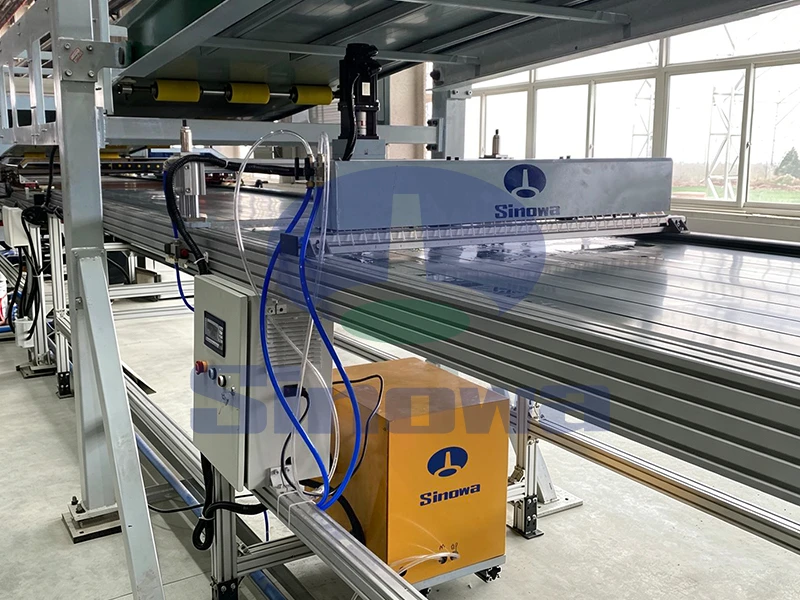

Compressed Air Supply Requirement For PU Sandwich Panel Line Operation

Sep 22, 2026

Compressed air acts as a core power source for the full operation of PU sandwich panel production lines, supporting pneumatic components, material spraying, and molding processes. Stable and qualified air supply directly ensures production continuity, product surface quality and dimensional accuracy while reducing equipment failure and maintenance risks in daily manufacturing.

The normal operation of a PU sandwich panel production line relies heavily on continuous and stable compressed air output, as nearly all pneumatic actuating units in the production process rely on this power medium. From the feeding stage of upper and lower metal sheets to the final cutting and stacking of finished panels, compressed air provides power for cylinder stretching, clamping, positioning and resetting actions. In the sheet unwinding and leveling process, pneumatic tension control devices adjust the tightness of metal materials in real time through air pressure changes, avoiding material deviation and wrinkling that may affect the flatness of finished sandwich panels. During the core material laying and compounding process, pneumatic positioning fixtures fix the relative position of metal sheets and PU foam materials, ensuring consistent overall dimensions of each panel product. Unstable air pressure will cause jitter and inaccurate stroke of pneumatic components, leading to frequent positioning errors, material misalignment and unqualified finished products. Therefore, maintaining a stable basic air pressure output is the fundamental prerequisite for standardized and continuous production of PU sandwich panels, and any fluctuation in air supply will directly interfere with the assembly and compounding accuracy of panel raw materials.

Compressed air purity is a key indicator that determines product quality and equipment service life in PU sandwich panel production, as impure air containing moisture, oil mist and solid particles will cause multiple adverse impacts on the production process. In the PU foam spraying and foaming stage, water and oil impurities in compressed air will react with polyurethane raw materials, destroying the uniform foaming structure of the PU core layer. This problem will lead to uneven internal density of the sandwich panel, local hollowing and poor bonding tightness between the core layer and metal sheets, greatly reducing the thermal insulation and mechanical properties of finished products. Meanwhile, solid particles in the air will wear precision pneumatic valves, nozzles and cylinder sealing parts inside the production line, causing component blockage, air leakage and flexible failure over time. Damaged spraying nozzles will result in uneven PU material spraying, while worn cylinder seals will cause insufficient power output and inaccurate equipment actions. Regular purification of compressed air and maintenance of filtering equipment can effectively eliminate these hidden dangers, ensure the purity of air participating in production, and stabilize the bonding quality and structural performance of PU sandwich panels.

Reasonable compressed air pressure matching for different production processes is essential to balance production efficiency and product qualification rate, as different working stations of the PU sandwich panel line have differentiated air pressure demand. The low-load links such as material conveying and preliminary positioning only require relatively low and stable air pressure to complete flexible actions, and excessive pressure will cause excessive impact force of components, resulting in material deformation and equipment vibration. The core production links including PU high-pressure foaming, material compounding and finished product cutting need medium and high air pressure to ensure sufficient power output. Especially in the foaming injection stage, stable high air pressure can ensure uniform mixing and rapid filling of polyurethane raw materials, making the foam core layer closely bonded with metal plates without gaps. Insufficient air pressure in this link will lead to incomplete foaming, slow material filling and loose core structure, while sudden pressure surge will cause excessive foaming, panel surface bulging and dimensional deviation. Enterprises need to adjust and stabilize the air pressure range according to the actual operating state of each process station, realizing precise air supply matching for different production links.

Continuous air supply stability is crucial for the long-term uninterrupted operation of PU sandwich panel production lines, and intermittent air supply or frequent pressure fluctuation will seriously restrict production continuity. The PU sandwich panel manufacturing process is a continuous assembly line operation with tight connection between front and rear processes. Once the compressed air supply is interrupted or the pressure drops sharply, the operating pneumatic components will stop working instantly, leading to sudden shutdown of feeding, foaming, compounding and cutting processes. Sudden shutdown will not only interrupt the production rhythm and reduce hourly output, but also cause unformed PU foam materials to solidify in the equipment pipeline and mold, resulting in pipeline blockage and mold adhesion problems. In addition, frequent start-stop of equipment caused by unstable air supply will increase mechanical wear of motors, cylinders and transmission parts, shorten the service life of production equipment, and greatly improve the frequency of daily maintenance and failure shutdown. Maintaining stable air supply volume and pressure without fluctuation is the key to realizing long-term stable and high-efficiency operation of the production line.

Scientific compressed air system maintenance and daily management can effectively maintain the stability and purity of air supply, and reduce hidden dangers caused by air supply problems in PU sandwich panel production. Daily inspection work should focus on the operating state of air compressors, air storage tanks and filtering and drying equipment, to ensure that all equipment is in normal working condition without abnormal noise, air leakage and blockage. It is necessary to regularly discharge condensed water and impurities accumulated in the air storage tank and filter device, so as to prevent moisture and dirt from entering the production pipeline with compressed air and affecting product quality and equipment operation. Regular detection of air pressure stability and air supply flow is also required, and timely adjustment of equipment parameters should be made according to the actual production load to avoid insufficient or excessive air supply. In addition, regular replacement of filter elements and maintenance of drying equipment can continuously ensure the high purity of compressed air, reduce component wear and failure probability, and create a stable air supply environment for the long-term high-quality operation of the sandwich panel production line.

Optimization of compressed air supply configuration can further improve the overall production performance and economic benefits of PU sandwich panel lines. According to the production scale and operating load of the assembly line, reasonable selection of air supply equipment power and pipeline layout can avoid redundant energy consumption and insufficient air supply at local stations. Optimized pipeline design can reduce pipeline resistance and air pressure loss in the transmission process, ensuring that the air pressure of each terminal production station meets the process requirements. For production lines with high continuous operation load, configuring buffer air storage devices can effectively balance instantaneous air pressure changes during peak production periods, avoid pressure drop caused by simultaneous air consumption of multiple stations, and maintain consistent production process parameters. A well-optimized compressed air supply system can not only stabilize product quality and reduce equipment failure rate, but also save energy consumption and production costs, helping enterprises achieve stable and efficient standardized production of PU sandwich panels.
