sandwich panel line
The basic structural composition of a mature foam core sandwich panel line follows a sequential production logic, and each functional module maintains precise mechanical and electrical coordination to ensure the continuity and stability of the whole production process. The sandwich panel production line can be divided into multiple core functional units according to the production sequence, covering raw material feeding unit, surface material pretreatment unit, foam core continuous foaming unit, high-precision gluing unit, pressure composite molding unit, constant temperature curing unit, cooling shaping unit, fixed-size cutting unit and finished product conveying and sorting unit. Every unit is equipped with independent driving components, sensing detection devices and parameter adjustment modules, and all units are connected through synchronous transmission systems to realize the linkage operation of the whole line. In terms of overall mechanical layout, the production line adopts a horizontal linear arrangement structure, which not only saves factory space and facilitates daily equipment maintenance, but also simplifies the material transmission path between processes, avoiding intermediate transfer losses and surface damage of semi-finished products caused by repeated handling. The rack of the production line is made of high-strength metal materials with anti-deformation and anti-corrosion treatments, which can maintain stable mechanical performance under long-term continuous operation and complex indoor environmental conditions, effectively extending the overall service life of the equipment.
The raw material feeding unit is the starting link of the entire production process, undertaking the task of stable and quantitative supply of surface materials and foam core raw materials. For the surface layer of sandwich panels, common raw materials include metal color plates, aluminum alloy sheets and fiber-reinforced flat plates, which are stored in a coiled state and installed on the automatic feeding rack of the foam core sandwich panel production line. The feeding rack is equipped with an automatic unwinding device and a tension control system. During the operation, the tension sensor monitors the tightness of the surface material in real time, and the servo motor dynamically adjusts the unwinding speed to prevent the surface material from generating wrinkles, stretching deformation or offset deviation in the transmission process. For foam core raw materials, the feeding system adopts sealed quantitative conveying equipment to transport granular or paste-like foam raw materials to the foaming molding mechanism. This feeding mode can effectively isolate external dust and moisture, avoid raw material contamination, and ensure the uniformity of raw material density in each production batch. In addition, the feeding unit is designed with an emergency stop protection mechanism. Once material blockage or abnormal feeding speed is detected, the system will automatically trigger the pause instruction to prevent equipment abrasion and raw material waste caused by mechanical jamming.
After completing stable feeding, the surface materials will enter the pretreatment unit for surface modification and shaping treatment, which is a key process to improve the bonding firmness between surface materials and foam core layers. The pretreatment process includes surface cleaning, leveling correction and micro-roughening treatment in sequence. The automatic cleaning assembly uses high-pressure airflow and soft brushing components to remove dust, oil stains and oxide layers attached to the surface of the sheet. These impurities will seriously reduce the adhesion of the adhesive if not cleaned thoroughly, leading to delamination and peeling of the finished panel in subsequent use. The leveling correction mechanism is composed of multiple sets of parallel leveling rollers, which can eliminate tiny bending and warping deformation generated during the coiling and transportation of the sheet, ensuring that the flatness of the surface material meets the composite processing standards. The micro-roughening treatment adopts mechanical rolling technology to form uniform fine textures on the inner surface of the sheet. This structural change can significantly increase the contact area between the sheet and the adhesive, thereby enhancing the mechanical bonding force between the surface layer and the foam core layer. All pretreatment parameters such as cleaning strength and rolling pressure can be adjusted according to different surface material thicknesses and texture characteristics to adapt to diversified production requirements.
The foam core continuous foaming unit is the core functional module that determines the thermal insulation, shock absorption and weight reduction performance of the sandwich panel. The raw materials for foam core production are composed of polymer base materials, foaming agents and auxiliary additives, which are accurately proportioned by an automatic batching system before entering the foaming equipment. The batching system adopts digital metering components to control the dosage of each raw material within a tiny error range, ensuring the consistency of foam density and pore structure of each batch of products. After batching, the mixed raw materials are sent to the internal mixing chamber of the foaming machine for high-speed stirring and homogeneous fusion. During the stirring process, the temperature control system maintains a constant internal temperature to avoid premature decomposition of foaming agents caused by excessive temperature and uneven foaming caused by insufficient temperature. The fully mixed raw materials are evenly sprayed on the inner side of the lower surface material through a quantitative discharge nozzle. With the gradual release of internal pressure, the raw materials undergo physical foaming reaction to form a porous closed-cell structure. The foaming thickness is precisely controlled by adjustable limiting baffles and rolling components, and the foaming speed keeps synchronous with the transmission speed of the surface material to realize continuous and uninterrupted foaming molding. The closed-cell porous structure formed after foaming can trap static air inside the core layer, which endows the panel with excellent thermal insulation and sound insulation performance, while reducing the overall density of the panel to achieve lightweight application effects.
The high-precision gluing unit undertakes the important task of constructing a stable bonding interface between the foam core layer and the surface material. Different from manual gluing operation, the automatic gluing system of the continuous sandwich panel production line adopts roller coating and spray coating combined gluing technology. According to the hardness and surface characteristics of foam core materials, the system intelligently switches gluing modes to ensure uniform glue coverage without glue accumulation or leakage. The glue storage tank is equipped with a constant temperature stirring device to prevent adhesive precipitation and viscosity change caused by temperature fluctuation, maintaining the optimal fluidity and bonding activity of the adhesive throughout the production process. The gluing thickness can be accurately adjusted through the gap between coating rollers, and the system can automatically identify the edge area of the sheet to reduce the glue dosage at the edge reasonably, which effectively controls the production cost while avoiding glue overflow pollution. In addition, the gluing unit is equipped with an air purification device to filter volatile organic compounds generated by the adhesive, optimizing the on-site production environment and reducing the impact of harmful gases on production equipment and operators. The adhesive selected for the sandwich panel line has excellent weather resistance and aging resistance, which can maintain stable bonding performance in high temperature, low temperature and humid environments, preventing the composite interface from cracking and delamination in long-term use.
The pressure composite molding unit is responsible for tightly combining the upper surface material, adhesive layer and foam core layer into an integrated semi-finished panel. This unit is mainly composed of multi-group composite pressing rollers and hydraulic pressure regulation systems, and the internal space of the pressing area is closed to form a relatively stable composite environment. Before entering the pressing area, the upper and lower surface materials and the intermediate foam core layer complete preliminary alignment under the guidance of the deviation correction system to avoid lateral dislocation of the layered structure. During the pressing process, the hydraulic system provides stable and uniform pressure, and the pressure value is dynamically adjusted according to the thickness and hardness of the panel. Excessively high pressure will cause irreversible compression deformation of the soft foam core layer, destroying the internal porous structure and reducing the thermal insulation performance of the panel, while excessively low pressure will lead to insufficient bonding tightness and hidden delamination risks. The pressing rollers are equipped with internal circulating temperature control components to keep the pressing temperature within the optimal bonding range. Moderate temperature can accelerate the molecular fusion speed of the adhesive, shorten the preliminary curing time, and improve the uniformity of stress distribution on the panel surface. After composite pressing, the layered structure of the panel is completely bonded, and the overall flatness and structural stability are initially formed.
The constant temperature curing unit is an indispensable link to stabilize the bonding performance and internal structure of composite panels. Although the adhesive completes preliminary bonding in the pressing stage, it still needs a specific temperature and time environment to complete molecular cross-linking reaction to achieve the ultimate bonding strength. The curing unit adopts an insulated closed tunnel structure, and the internal space is divided into multiple temperature gradient areas. The temperature of each area is independently controlled to realize segmented slow curing of the panels. The panels are transported at a constant speed through the curing tunnel by the synchronous transmission roller set. In the early stage of curing, the temperature is slightly increased to accelerate the diffusion and penetration of the adhesive into the tiny pores of the foam core and the surface material texture; in the middle stage, the constant temperature is maintained to ensure sufficient cross-linking reaction of adhesive molecules; in the later stage, the temperature is moderately reduced to relieve the internal stress generated by thermal expansion of the panel. This segmented curing method can effectively avoid panel deformation and internal structural cracks caused by one-time high-temperature heating. The internal circulating air system of the curing tunnel keeps the air flow uniform, eliminating local temperature differences and ensuring the consistent curing effect of each position of the panel. After curing, the bonding strength of the composite interface reaches the design standard, and the overall structural stability of the panel is significantly improved.
The cooling shaping unit is set after the curing tunnel to reduce the surface and internal temperature of the panels to room temperature through physical heat exchange, so as to fix the stable shape of the panels. The cooling system adopts a combination of air cooling and water cooling. The surface of the panel is cooled by uniform flowing cold air, and the internal heat of the panel is taken away by the circulating cooling water pipeline inside the transmission roller. Compared with a single cooling mode, this composite cooling method has higher heat exchange efficiency and avoids local condensation and water droplet adhesion on the panel surface caused by rapid cooling. During the cooling process, the residual internal stress of the panel is gradually released, and the flatness and dimensional stability of the panel are further optimized. At the same time, the staff can observe the surface state of the panel through the transparent observation window of the cooling unit. Once abnormal conditions such as bubbles, cracks and uneven bonding are found, the equipment can be manually suspended for inspection and adjustment. The length of the cooling unit is matched with the production speed to ensure that the panels can completely complete the temperature reduction and shaping process without affecting the continuous production rhythm of the continuous sandwich panel line.

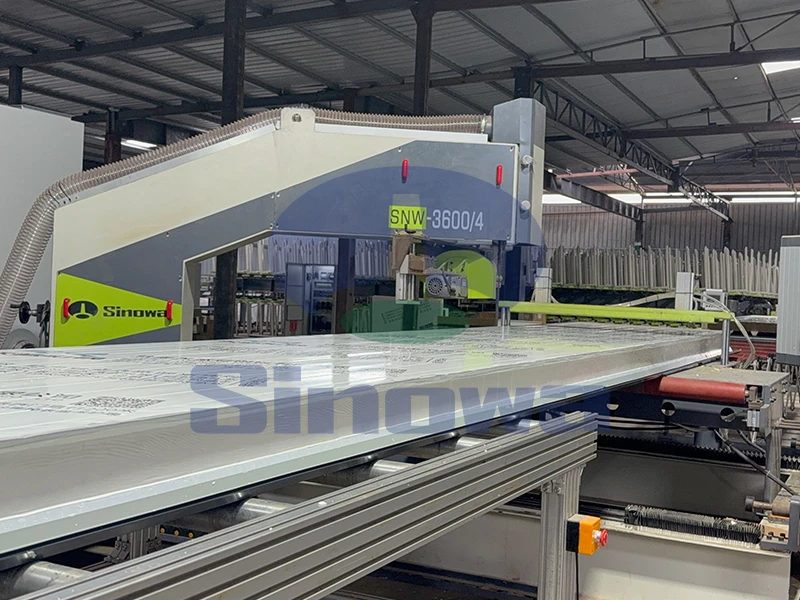

The fixed-size cutting unit realizes precise slitting and edge trimming of continuous long-strip semi-finished panels to meet the size requirements of different application scenarios. This unit takes the servo motor as the power source, and the cutting parameters such as cutting length, width and edge trimming allowance are set through the digital control terminal. The high-precision displacement sensor monitors the conveying distance of the panels in real time. When the panels reach the preset cutting position, the automatic clamping mechanism fixes the panels to prevent displacement during cutting. The cutting tool adopts high-hardness alloy blades, which maintains sharp cutting performance after long-term use and ensures smooth and burr-free cutting sections of foam core sandwich panels. For the edge trimming process, the equipment cuts off the irregular residual edges on both sides of the panels to make the overall outline neat and uniform. In addition, the cutting unit is equipped with a dust collection and debris cleaning device, which collects foam debris and dust generated during cutting in a centralized manner to keep the production environment clean and avoid debris adhesion affecting the surface quality of finished panels. All cutting actions are completed automatically without manual intervention, which effectively improves cutting accuracy and production efficiency.
The finished product conveying and sorting unit is the terminal link of the sandwich panel production line, responsible for the transportation, temporary storage and classification stacking of cut finished panels. The finished panels are transported to the sorting platform through the low-noise conveyor roller. The platform is equipped with a weight detection and flatness sensing module to conduct rapid non-destructive inspection of the finished panels. Panels with qualified quality are automatically stacked by the mechanical stacking device according to the specified quantity, and unqualified products with defects are automatically screened out to avoid mixing into the finished product batch. The mechanical stacking structure adopts a flexible clamping mode to prevent surface scratches and indentation on the panels during the stacking process. The stacked finished products are neatly arranged in the designated area, which is convenient for subsequent packaging, transportation and warehousing management. Meanwhile, the terminal of the sandwich panel machine is connected with the data statistical system, which automatically records the daily output, qualified product rate and material consumption data, providing intuitive data support for enterprise production management and cost accounting.
In addition to the main functional production units, the auxiliary supporting system of the foam core sandwich panel line also plays an important role in maintaining stable operation of the equipment, including the electrical control system, hydraulic transmission system, circulating cooling system and safety protection system. The electrical control system takes the programmable logic controller as the core, integrating various sensing elements and execution components. Operators can adjust the operating parameters of each unit through the human-computer interaction interface, and the system can automatically identify abnormal data and trigger early warning prompts. The hydraulic transmission system provides stable power support for pressing, cutting and clamping actions, with low operation noise and strong power stability. The circulating cooling system realizes the cyclic utilization of cooling water, reducing water resource consumption while ensuring the cooling effect. The safety protection system is composed of emergency stop buttons, anti-collision sensors and isolation baffles, which can effectively avoid mechanical injury accidents during equipment operation and ensure the personal safety of on-site operators.
The rationality of process parameter setting directly determines the comprehensive performance of foam core sandwich panels. In the actual production process, temperature, pressure, transmission speed and gluing amount are the four core adjustable parameters. The molding temperature of the foaming unit is usually maintained within a moderate range to ensure that the foaming agent decomposes evenly and forms uniform closed-cell structures; the composite pressure is controlled stably to balance the bonding tightness and the integrity of the foam core structure; the transmission speed needs to match the reaction time of each process link to avoid incomplete curing and insufficient cooling caused by excessive speed; the gluing amount is dynamically adjusted according to the surface roughness of the sheet to ensure bonding strength without wasting adhesives. Different parameter combinations can produce sandwich panels with different densities, thicknesses and mechanical strengths, which can adapt to diverse usage scenarios such as building enclosure, cold storage thermal insulation and temporary engineering construction.
Compared with discrete semi-automatic production equipment, the integrated foam core sandwich panel manufacturing line has obvious advantages in production efficiency, product quality and resource utilization. In terms of production efficiency, the continuous sandwich panel assembly line production mode eliminates intermediate handling and waiting links, realizing uninterrupted production for a long time. In terms of product quality, the unified parameter standard and automatic control system reduce human interference factors, making the thickness, density, flatness and bonding strength of each panel highly consistent and effectively reducing the defective rate. In terms of resource utilization, the closed raw material conveying system and quantitative feeding device minimize raw material loss, and the circulating water and circulating air systems reduce energy consumption. In addition, the integrated production line has a high degree of equipment integration, covering a small factory area, and is convenient for centralized management and daily maintenance, which is suitable for large-scale standardized production needs of medium and large manufacturing enterprises.
Foam core sandwich panels produced by automated production lines have a wide range of industrial application scenarios, covering construction engineering, cold chain logistics, transportation facilities and temporary building fields. In the construction industry, the panels are used for building enclosure walls, roof insulation layers and partition structures, relying on their lightweight and thermal insulation advantages to reduce building load and optimize indoor temperature regulation effect. In the cold chain storage industry, the low thermal conductivity of foam core materials can reduce the internal and external heat exchange of cold storage, maintaining a stable low-temperature environment and reducing energy consumption of refrigeration equipment. In the field of transportation facilities, the panels are applied to the carriage plates of refrigerated transport vehicles and mobile storage boxes, with good shock resistance and moisture resistance to protect internal goods from external temperature and vibration interference. In temporary construction projects such as construction site dormitories and emergency rescue residences, the panels are easy to cut and splice, realizing rapid assembly of buildings and shortening construction cycles.
In the daily operation and maintenance management of the foam core sandwich panel machinery, standardized maintenance procedures can effectively extend the service life of the equipment and maintain stable production efficiency. Daily maintenance work includes cleaning surface dust and debris of each unit, checking the tightness of connecting bolts and the flexibility of transmission components, and supplementing lubricating oil for rotating parts such as rollers and bearings. Regular maintenance needs to detect the wear degree of cutting blades and gluing nozzles, replace aging sealing parts and transmission belts, and calibrate sensing components such as temperature sensors and pressure detectors to ensure the accuracy of parameter monitoring. In terms of environmental maintenance, the production workshop needs to maintain dry and ventilated conditions to avoid moisture corrosion of metal equipment and deterioration of chemical raw materials. Meanwhile, the waste materials generated in the production process need to be classified and recycled to reduce environmental pollution. Scientific maintenance management can reduce equipment failure rate, avoid production interruption caused by mechanical faults, and create stable economic benefits for production enterprises.
With the continuous progress of industrial manufacturing technology, the foam core sandwich panel production line is developing in the direction of intelligent control, energy saving and consumption reduction, and diversified production. In terms of intelligent upgrading, more high-precision sensors and data analysis modules are embedded in the production line to realize real-time monitoring and automatic optimization of production parameters. The equipment can independently adjust the process parameters according to the raw material state to further improve product qualification rate. In terms of energy saving optimization, the waste heat generated by the curing unit is recycled to the preheating link of raw materials, reducing the comprehensive energy consumption of the equipment. The circulating purification system further improves the utilization rate of water resources and air resources. In terms of diversified production, the modular structural design enables the production line to quickly replace functional components, realizing the production of sandwich panels with different core materials and surface materials, and expanding the product coverage of a single production line. In addition, the noise reduction optimization of mechanical operation and the harmless treatment of volatile gases have gradually become the key optimization directions of new production lines, conforming to the global environmental protection production development trend.
In the future, with the continuous expansion of the composite material market and the improvement of industrial manufacturing standards, the technical performance of foam core sandwich panel lines will be further optimized. The intelligent linkage degree between various functional units will be improved, and the automatic fault diagnosis and self-repair functions of the equipment will be more perfect. The application of new energy-saving materials and transmission structures will further reduce the production energy consumption and operating cost of the equipment. At the same time, driven by market demand, the production line will develop towards personalized customization, which can quickly respond to the special size and performance requirements of customized panels in the market. As an important carrier for the mass production of foam core sandwich panels, the foam core sandwich panel line will continue to rely on technological innovation to promote the upgrading of the composite building material industry, provide high-quality and low-consumption panel products for various industrial fields, and create greater economic and social value for the modern manufacturing industry.
