How Does A Mineral Wool Sandwich Panel Production Line Operate In Full Automatic Mode

Sep 29, 2026

The full automatic mineral wool sandwich panel production line realizes continuous, unmanned manufacturing of composite panels through integrated mechanical and intelligent control systems. It covers raw material feeding, gluing, composite pressing, curing and cutting, ensuring stable product quality and high production efficiency throughout the whole process.

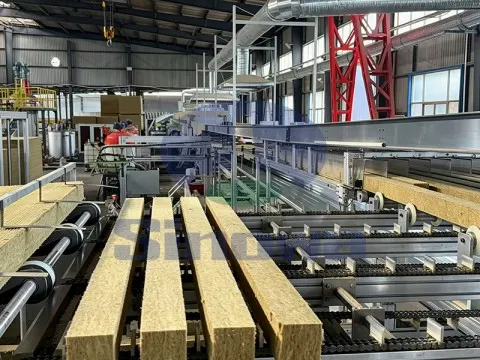

The full automatic operation of a mineral wool sandwich panel production line starts with the intelligent raw material feeding and pretreatment process, which lays a solid foundation for subsequent composite manufacturing. This automated system independently completes the feeding, unwinding and shaping of metal surface materials, as well as the cutting and sorting of mineral wool core materials without manual intervention. The metal coil raw materials are steadily released by automatic uncoiling equipment, and then delivered to the roll forming unit for precise shaping and flattening to eliminate surface wrinkles and dimensional deviations. Meanwhile, the supporting mineral wool feeding module automatically conveys bulk mineral wool materials, cuts them into standardized specifications matching production requirements, and adjusts the fiber orientation of mineral wool to optimize the structural performance of the final panels. All parameter settings such as feeding speed and cutting size are uniformly controlled by the central intelligent system of the mineral wool sandwich panel production line, which synchronizes the operation rhythm of different units to avoid material accumulation or supply delay. This fully automated pretreatment link greatly reduces human errors, realizes consistent raw material processing standards, and creates precise matching conditions for the later bonding and composite molding of core and surface materials.

After raw material pretreatment, the automatic gluing and precise positioning assembly process becomes the key link of the mineral wool sandwich panel line's full-automatic operation. The intelligent gluing system adopts a circulating uniform coating mode, which automatically sprays or rolls special adhesive on the inner surfaces of upper and lower metal sheets and the surface of mineral wool core materials. Equipped with intelligent flow regulation components, the system can adaptively adjust the gluing amount and coating uniformity according to different material thicknesses and surface characteristics, effectively avoiding excessive glue overflow or local missing coating problems that affect bonding strength. After the gluing process is completed, the automatic positioning mechanism starts to work, accurately aligns the upper and lower metal sheets with the intermediate mineral wool core material in real time, and realizes zero-deviation fitting through precise mechanical clamping and conveying. The entire assembly process runs continuously and synchronously under the program control of the mineral wool sandwich panel production line, replacing traditional manual alignment and adjustment. This automated assembly mode not only significantly improves production speed but also ensures the overall structural uniformity of each preliminary composite panel, laying a crucial foundation for stable bonding performance.

Composite pressing and constant-temperature curing are the core molding procedures that determine the product quality in the full-automatic operation of the mineral wool sandwich panel production line. The preliminarily assembled composite blanks are automatically transported to the multi-stage pressing and curing integrated unit through the conveyor system. The hydraulic pressing structure of the equipment can provide uniform and stable vertical pressure across the entire panel area, which effectively eliminates tiny gaps between the mineral wool core material and metal sheets, and promotes the full penetration and adhesion of the adhesive in the fiber gaps of mineral wool. Cooperating with the pressing process, the constant-temperature curing system adopts gradient temperature control to maintain a stable heat environment inside the curing channel, enabling the adhesive to complete chemical reaction and solidification stably. All pressure values, curing temperature and running speed are intelligently linked and adjusted by the central control system of the production line, realizing dynamic matching according to different panel specifications. The continuous pressing and curing integration mode of the mineral wool sandwich panel production line ensures that each panel achieves consistent bonding firmness and structural stability, avoiding quality differences caused by manual operation fluctuations.

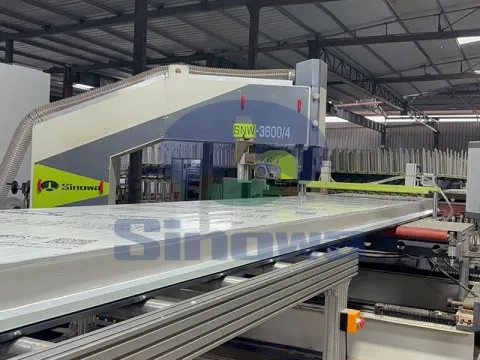

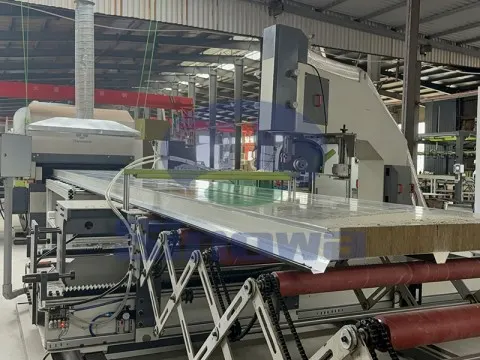

Following the molding and curing process, the full-automatic trimming and fixed-length cutting process further standardizes the finished panel size for the mineral wool sandwich panel manufacturing line. After exiting the curing unit, the initially formed integral panel has irregular edges and redundant materials at both ends, which need precise automatic finishing. The production line is equipped with integrated edge trimming and cutting equipment, which automatically detects the overall dimensions of the panel through high-precision sensing devices and generates cutting parameters in real time. The edge trimming mechanism synchronously polishes and cuts the four sides of the panel to make the edge structure neat and smooth, while the fixed-length cutting unit accurately cuts the continuous long panel into finished products of preset standard lengths. The whole process is completed automatically without manual measurement and positioning, and the sensing and cutting systems operate synchronously with the front-end molding process of the mineral wool sandwich panel production line to ensure uninterrupted continuous production. This automated finishing process effectively guarantees the dimensional accuracy of finished panels and improves the overall uniformity of batch products.

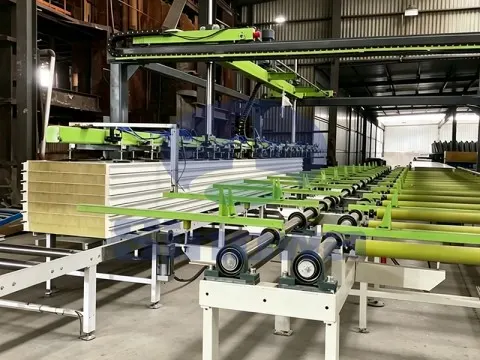

The final stage of full-automatic operation for the mineral wool sandwich panel line is automatic inspection, stacking and auxiliary conveying, which realizes unmanned finished product output and storage. After trimming and cutting, the finished panels are automatically sent to the intelligent detection area, where the system conducts real-time non-destructive inspection on panel flatness, bonding integrity and dimensional accuracy through built-in sensing modules. Unqualified products will be automatically identified and separated from the production line, while qualified panels will be transmitted to the automatic stacking unit. The stacking equipment neatly stacks the finished panels according to fixed layers and specifications, and cooperates with the conveying device to complete orderly output of finished products. All detection data and production operation parameters are automatically recorded and stored by the production line system, facilitating subsequent production data statistics and quality traceability. This fully automatic post-processing mode completely realizes the closed-loop operation of the mineral wool sandwich panel production line from raw material input to finished product output, greatly improving production automation level and operational efficiency.

In the whole full-automatic operation cycle, the centralized intelligent control system serves as the core brain to coordinate all functional units of the mineral wool sandwich panel production line. The system uniformly regulates the operating speed, parameter matching and synchronous coordination of feeding, gluing, pressing, curing, cutting and stacking units, realizing fully continuous and unmanned assembly line operation. It can automatically adjust operating parameters according to different panel thicknesses, core material densities and production demands, with strong production flexibility and adaptability. In addition, the intelligent monitoring function can real-time track the operating status of each equipment module, automatically alarm and adjust abnormal operating conditions, and effectively reduce equipment failure rates and production downtime. Compared with semi-automatic production modes, the full-automatic operation of the mineral wool sandwich panel production line features higher production consistency, lower labor cost and more stable product quality, meeting the large-scale and standardized production demands of modern composite panel manufacturing industry.

Sinowa is a professional manufacturer of sandwich panel machine in china, we provide diversified and high-performance sandwich panel production lines, including fully automatic continuous PU sandwich panel line and customized special lines to meet mass production and personalized order demands. These sandwich panel lines support processing multiple foam core materials, such as PU, PIR, mineral wool, rock wool and glass wool, covering different insulation and fireproof standards.

Featuring stable operation, high efficiency, energy saving and easy maintenance, our PU sandwich panel line deliver sandwich panels with excellent thermal insulation, fire resistance, sound insulation and lightweight durability. The finished panels are widely applied in industrial workshops, warehouse roofing and wall cladding, cold storage insulation, serving global construction and industrial insulation markets.
