sandwich panel line
The entire production system adopts a highly integrated modular structure, covering all processing links from raw material feeding and pretreatment to roller forming, core material arrangement, edge sealing treatment, thermal composite pressing, fixed-length cutting, and finished product sorting. The whole production process realizes automated linkage operation, with minimal manual intervention, which not only greatly improves production efficiency but also ensures the consistency and stability of product quality in mass production. At the core of the system lies an intelligent centralized control module that supports real-time parameter adjustment and process linkage control. Operators can adjust production parameters such as panel thickness, forming speed, and glue application volume through a simple interactive interface, realizing flexible switching of production specifications and adapting to the diversified customization needs of the market for sandwich panels of different sizes and performance levels.
Raw material pretreatment is the primary key link to ensure the quality of finished panels, and the rock wool sandwich panel production line is equipped with a professional full-set pretreatment unit for both surface steel plates and internal rock wool core materials. For color steel coil raw materials, the system is configured with automatic uncoiling, deviation correction, leveling, and trimming mechanisms. The uncoiling device stably releases coiled color steel plates at a uniform speed, while the high-precision deviation correction system dynamically monitors the feeding position of steel plates in real time, effectively avoiding positional deviation during material conveying. The leveling mechanism eliminates the bending and wrinkling deformation of steel plates caused by long-term coiling, ensuring the flatness of the surface plates in subsequent composite processing. The trimming unit precisely cuts off the irregular edges of steel plates, making the width of upper and lower surface steel plates consistent and laying a foundation for neat edge sealing and uniform stress of finished panels.
The pretreatment process of rock wool core materials is uniquely optimized for the physical characteristics of rock wool fibrous materials. Rock wool, as a porous fibrous thermal insulation and fireproof core material, has the characteristics of loose texture and uneven fiber distribution after conventional cutting, which easily leads to unstable internal structure of composite panels. The rock wool sandwich panel line is equipped with a special core material processing unit, which completes fixed-size cutting, fiber carding, and layered arrangement of rock wool blocks. The precise cutting mechanism cuts rock wool raw materials into standard core strips matching the panel specifications, and the fiber combing equipment sorts out disordered internal fibers to make the fiber distribution uniform and dense. More importantly, the system supports vertical fiber orientation arrangement, enabling the rock wool fibers to be perpendicular to the upper and lower steel plate surfaces of the sandwich panel. This special arrangement mode significantly enhances the overall compressive strength, structural stability, and thermal insulation uniformity of the panel, avoiding the performance attenuation problem caused by chaotic fiber arrangement in ordinary production processes.
The roller forming process of surface steel plates is a crucial link to shape the external structure of sandwich panels. The rockwool board production line adopts multi-group continuous roller pressing forming units, which carry out gradual bending and shaping on pretreated flat color steel plates. Through the precise matching of roller group gaps and forming angles, the steel plates complete the forming of edge flanging, groove pressing, and structural bending in one continuous pass. The gradual forming design avoids local stress concentration and surface scratch damage of steel plates caused by one-time strong extrusion, ensuring the smooth and flat surface of finished steel plates and accurate dimensional accuracy of forming structures. All roller forming parameters are synchronously linked with the central control system, and the forming stroke and angle can be automatically adjusted according to different panel thickness and width specifications, realizing rapid switching of production modes and improving the versatility and flexibility of the production line.
Edge sealing treatment is the core functional advantage of this sandwich panel production line, which fundamentally optimizes the edge structure defects of traditional rock wool sandwich panels. Traditional rock wool panels are prone to gaps, depressions, and loose core material exposure at the edges after compounding, which not only affects the aesthetic degree of the panels but also easily causes moisture penetration, fiber falling off, and reduced thermal insulation performance during long-term use. The professional edge sealing unit of the production line adopts automatic precise glue injection and edge wrapping integrated technology. Before the composite pressing of steel plates and rock wool core materials, the system quantitatively injects high-performance composite adhesive into the edge gaps of the rock wool core layer, and synchronously completes the fitting and wrapping of steel plate flanging structures at the panel edges. The intelligent glue injection system can accurately control the glue output and spraying range according to the panel size, ensuring uniform and full glue layer distribution at the edges, without excess glue overflow or local glue shortage.
The edge sealing process realizes seamless fitting between the upper and lower steel plates and the rock wool core material at the panel edges, forming a fully enclosed integrated structure. This closed edge structure effectively isolates the internal rock wool core material from the external air and humid environment, preventing the absorption of moisture and dust by rock wool fibers, and greatly improving the weather resistance and service life of the panels. At the same time, the integrated edge sealing structure enhances the overall structural tightness of the sandwich panel, optimizes the sound insulation and thermal insulation performance of the edge area which is prone to heat and sound leakage, and makes the overall performance of the panel more balanced and stable. In addition, the automated edge sealing operation ensures the consistency of edge processing effects of each panel, avoiding the uneven edge quality caused by manual auxiliary processing in traditional production lines.
The thermal composite pressing system is the key equipment to realize the firm bonding of steel plates and rock wool core materials. After the completion of steel plate forming, core material arrangement, and edge sealing glue application, the semi-finished panels enter the continuous double-belt thermal pressing unit. The system adopts constant-temperature and constant-pressure composite technology, which applies uniform and stable pressure and temperature to the whole panel surface. The set temperature and pressure parameters can fully activate the performance of the composite adhesive, promote the rapid curing and bonding between the steel plate inner wall and the rock wool core material, and ensure that the bonding interface has high structural strength and separation resistance. The long-distance continuous pressing design enables the adhesive to complete sufficient curing and forming in the conveying process, avoiding the problems of incomplete curing and weak bonding caused by short pressing time in intermittent production equipment.
The internal conveying structure of the thermal pressing unit adopts a balanced tension control design, which can avoid the displacement and deviation of steel plates and core materials during the pressing process, ensuring the overall flatness and structural uniformity of the composite panel. The whole pressing process realizes dynamic real-time monitoring, and the system automatically adjusts pressure and temperature according to the production speed and panel specifications, maintaining the optimal composite state all the time. After thermal pressing and curing, the steel plates and rock wool core materials form an integrated composite structure with no internal gaps, stable overall structure, and strong impact resistance, which effectively improves the overall mechanical performance of the sandwich panel and enables it to adapt to various installation and use environments with high structural stability requirements.
The fixed-length cutting and finishing process ensures the dimensional accuracy and surface quality of finished panels. After continuous thermal composite forming, the long strip of integrated panel is conveyed to the precision cutting unit. The system adopts automatic fixed-length positioning and cross-cutting technology, which can accurately cut the continuous panel into finished products of different standard lengths according to preset parameters. The high-speed cutting tool adopts smooth cutting technology, which ensures flat and burr-free cutting sections, avoiding edge deformation and scratch damage to the panel surface during cutting. After cutting, the automatic finishing unit completes fine trimming of the panel edges and surface cleaning, removing residual glue and tiny burrs generated in the production process, further optimizing the appearance quality and structural precision of the finished panels.

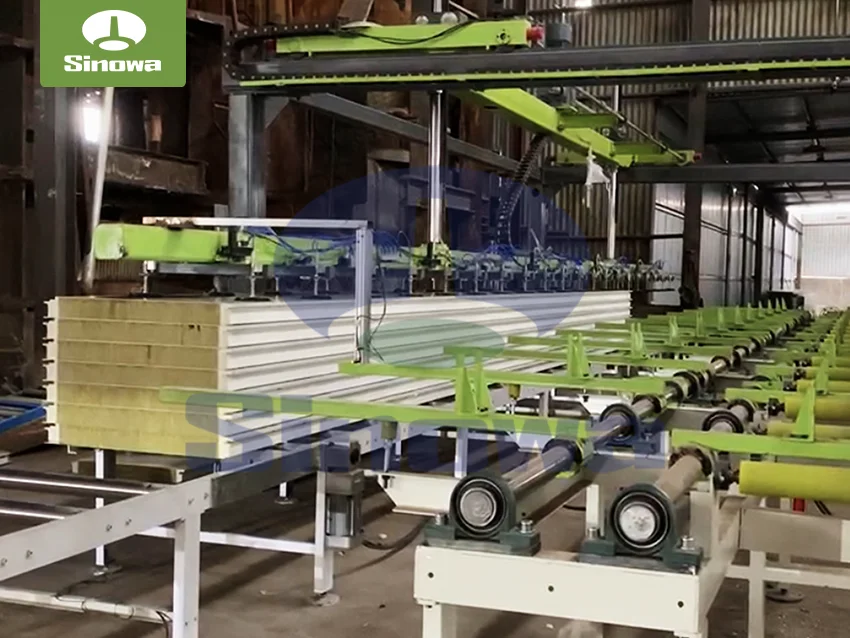

The final stage of the production process includes automatic conveying, stacking, and finished product sorting. The qualified panels after cutting and finishing are stably conveyed to the stacking platform through the intelligent conveying roller table. The automatic stacking device carries out orderly stacking according to the set height and arrangement mode, realizing neat placement of finished panels and facilitating subsequent transportation and storage. The whole stacking process is stable and efficient, avoiding surface friction and collision damage of panels caused by manual handling. In addition, the sandwich panel line is equipped with a real-time quality detection mechanism, which conducts online monitoring of panel flatness, dimensional error, edge sealing tightness, and bonding firmness during the production process. Abnormal parameters will trigger automatic early warning and parameter adjustment, realizing real-time quality control in the production process and reducing the rate of defective products.
Compared with traditional rock wool sandwich panel production equipment, this edge sealing integrated rock wool sandwich panel line has prominent technical and production advantages in terms of process optimization and product performance improvement. Firstly, the integrated edge sealing process solves the structural defects of open edges of traditional panels, greatly improving the airtightness, weather resistance, and durability of finished products. Secondly, the optimized rock wool core material pretreatment and vertical fiber arrangement technology significantly enhance the mechanical strength and thermal insulation stability of the panels, making the product performance more superior. Thirdly, the full-process automated intelligent control system realizes unmanned continuous production, effectively reducing labor costs, improving production efficiency, and ensuring the consistency of large-batch product quality.
In terms of production adaptability, the color steel sandwich panel production line has strong flexible production capacity. It can stably produce sandwich panels of different thickness and width specifications by adjusting operating parameters, and can meet the production requirements of panels for different application scenarios such as ordinary industrial buildings, clean engineering facilities, and thermal insulation enclosure structures. The whole production process is compact and reasonable in layout, with high production continuity, low energy consumption per unit product, and good production economy. The mechanical structure of the equipment is stable and durable, with low failure rate and convenient daily maintenance, which can maintain long-term stable high-efficiency production operation and create stable production benefits for manufacturing enterprises.
The finished rock wool color steel sandwich panels produced by this line have excellent comprehensive performance, including good fire resistance, thermal insulation, sound insulation, and structural stability. The fully enclosed edge sealing structure avoids the problem of core material exposure and moisture absorption, so the panels can maintain stable performance in high humidity, large temperature difference, and complex outdoor environments for a long time. The integrated composite structure makes the panels have strong compression resistance and bending resistance, not easy to deform after long-term use, and the flat and neat surface is convenient for subsequent installation and decoration construction. These excellent performances make the products widely applicable to the enclosure walls, roofs, and partition structures of industrial workshops, warehouse buildings, modular houses, purification workshops, and other modern buildings, providing high-quality lightweight composite building materials for the construction industry.
With the continuous upgrading of modern building energy-saving standards and building safety requirements, high-performance enclosed rock wool sandwich panels have become the mainstream development trend of building enclosure materials. The edge sealing rock wool color steel sandwich panel manufacturing line, relying on its optimized production process, intelligent manufacturing mode, and superior product forming effect, can help production enterprises continuously output high-quality and high-stability sandwich panel products. It not only meets the market's high requirements for building material performance and quality consistency but also adapts to the large-scale and standardized development trend of the building material manufacturing industry, providing reliable equipment and process support for the iterative upgrading of modern energy-saving and safe building materials.
