sandwich panel machine
The overall structural design of the glass wool sandwich panel machine follows the principles of mechanical integration, intelligent control, and stable operation, with each functional module closely connected and coordinated to ensure the continuity and accuracy of the production process. The entire production line can be divided into several core functional units, including a metal sheet feeding and forming unit, a glass wool core material processing and laying unit, an automatic adhesive coating unit, a constant-temperature composite pressing unit, a precise cutting and finishing unit, and an intelligent operation and detection unit. Each unit is independently controlled and linked synchronously, avoiding production stagnation and quality deviation caused by mismatched working procedures. The equipment adopts a modular assembly structure, which not only facilitates daily maintenance, component replacement, and equipment debugging but also supports flexible adjustment of production parameters according to different production needs, adapting to the production of sandwich panels with different thicknesses, core material densities, and surface specifications.
The front-end working procedure of the glass wool sandwich panel production line starts with the metal sheet feeding and forming process. The equipment is equipped with a stable hydraulic unwinding structure, which can stably support and release different types of metal coiled materials. The released metal sheets are first sent to the leveling system to eliminate the internal stress and surface wrinkles of the coiled materials, ensuring the flatness and uniformity of the base material. After leveling, the metal sheets pass through a multi-group roller forming system, which gradually presses the flat metal sheets into the required profile structures through precise roller arrangement and pressure control. The whole forming process is completed at a constant speed, with stable forming precision and no damage to the metal sheet surface, laying a solid foundation for the subsequent composite bonding process. The speed of the unwinding and forming process can be automatically adjusted according to the operating speed of the subsequent composite unit, realizing synchronous matching of front and back processes and avoiding material accumulation or idle operation.
As the core functional part of the glass wool sandwich panel line, the glass wool core material processing and laying system directly determines the thermal insulation, sound absorption and fire-resistant performance of the finished sandwich panels. Different from other core material processing equipment, this machine is specially optimized for the lightweight and fibrous structural characteristics of glass wool materials. The equipment is equipped with an automatic cotton laying and sorting device, which can accurately control the laying thickness and bulk density of glass wool through a programmable control system. In the production process, the loose glass wool raw materials are evenly dispersed and paved through a special fiber distributing mechanism, avoiding fiber agglomeration, hollow gaps or uneven thickness inside the core material. Meanwhile, the supporting preheating device conducts mild temperature treatment on the paved glass wool layer, which can effectively remove the residual moisture inside the fiber gaps, optimize the subsequent adhesive bonding effect, and enhance the overall compactness and structural stability of the composite panel. In addition, the online real-time detection module continuously monitors the thickness and density of the glass wool layer during operation, automatically fine-tunes the operating parameters of the cotton laying device, and ensures the consistency of the core material performance of each batch of products.
The adhesive coating process is a key link to ensure the bonding strength between the metal surface layer and the glass wool core material, and the professional adhesive coating unit of the equipment realizes high-precision and uniform glue application. The system adopts a fine spray coating mode, which can evenly spray high-performance adhesive on the inner surface of the upper and lower metal sheets. The intelligent glue supply system can automatically adjust the glue spraying amount and spraying range according to the thickness of the glass wool core material and the production speed, ensuring that the adhesive layer is thin and uniform without excess glue accumulation or missing coating. This precise coating method not only improves the bonding efficiency but also avoids the problem that excessive adhesive penetrates into the glass wool fiber gaps and blocks the porous structure, which would affect the thermal insulation and sound absorption performance of the core material. The adhesive used matches the structural characteristics of glass wool and metal materials, with good flexibility and adhesion, which can adapt to the slight deformation of the panel under different temperature and humidity environments and prevent the composite panel from peeling or cracking.
After the completion of material preparation and glue coating, the metal sheets and glass wool core material enter the composite pressing and curing stage. The glass wool sandwich panel equipment is equipped with a high-stability double-belt pressing system, which realizes synchronous up-and-down pressure application. The pressing system can provide stable and uniform pressure, and the internal independent temperature zoning control device can form a constant-temperature curing environment in the pressing area. In the closed pressing and curing space, the upper and lower metal layers and the middle glass wool core material are tightly compounded into an integrated structure under the dual action of constant pressure and constant temperature. The temperature and pressure parameters in the curing zone can be adjusted in real time according to the material characteristics and production requirements, which can accelerate the curing reaction of the adhesive, shorten the forming cycle, and ensure that the bonding interface forms a firm and seamless connection. This continuous hot-press composite technology effectively overcomes the defects of weak local bonding and easy delamination of traditional cold-pressed products, and significantly improves the overall mechanical strength and structural durability of the sandwich panels.

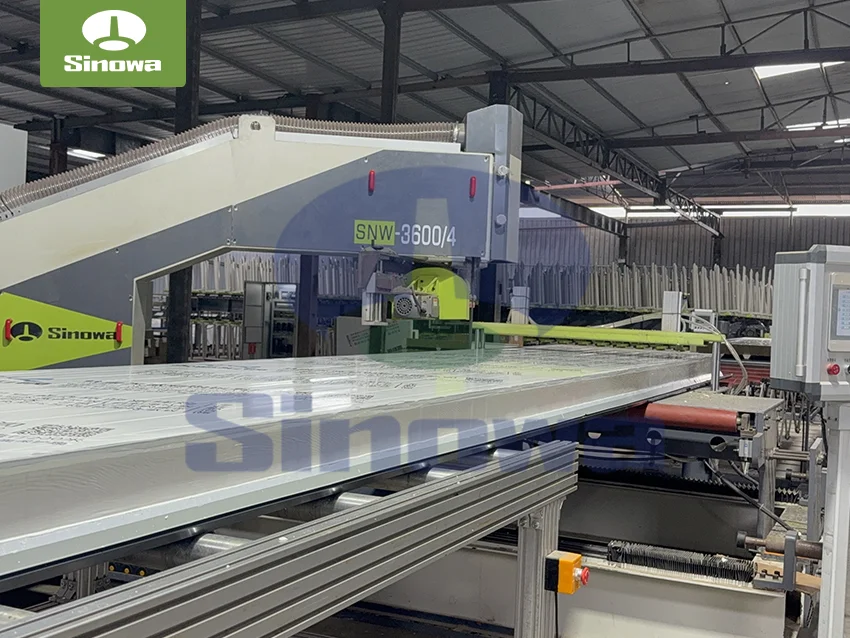

The rear-end finishing process of the equipment includes fixed-length cutting, edge trimming and shaping, which realizes the final standardized forming of the products. The high-precision flying saw cutting system can automatically identify the set panel length and complete fast and stable cutting during the continuous operation of the production line, without stopping the machine for sizing, which greatly improves the continuous production capacity. The cutting tool is made of wear-resistant materials, which can ensure smooth and flat cutting sections without burrs, deformation or fiber scattering. After cutting, the edge trimming device automatically trims and seals the edges of the panels. The edge sealing treatment can effectively block the water absorption channel of the glass wool core material, prevent moisture and dust from entering the interior of the core material, and avoid the decline of thermal insulation performance and mildew and corrosion of the internal fiber structure caused by moisture absorption. The finished panels after finishing have regular overall dimensions, neat edges and stable structural performance, which fully meet the installation and use standards of construction engineering.
The intelligent control system equipped with the glass wool sandwich panel machinery is the core guarantee for the stable and efficient operation of the entire production line. The centralized control platform integrates parameter setting, operation monitoring, fault diagnosis and data statistics functions. Operators can complete the setting of production parameters such as panel thickness, width, length, laying density and operating speed through the intuitive operation interface. The system supports automatic operation and manual fine-tuning switching, which is convenient for equipment debugging and small-batch customized production. During the continuous production process, the system monitors the operating status of each functional module in real time, including unwinding speed, forming precision, glue spraying volume, pressing temperature, operating pressure and cutting size. Once abnormal parameters or equipment faults are detected, the system will automatically trigger early warning prompts and perform self-protection operations such as speed reduction and shutdown, effectively avoiding defective products and equipment damage. In addition, the system can record production data in real time, which is convenient for production management, quality traceability and process optimization.
In terms of production performance and product quality control, the glass wool sandwich panel production machine has significant technical advantages compared with traditional production equipment. First of all, the fully automated streamlined production mode greatly reduces manual intervention, effectively avoids product quality fluctuations caused by human operation errors, and ensures the consistency and stability of batch products. The precise material laying and pressing control technology maintains the complete porous fiber structure of glass wool to the greatest extent, so that the finished panels retain excellent thermal insulation and sound insulation effects. The independent temperature and pressure regulation technology in the composite curing process ensures the firmness of the composite structure, making the panels have good wind pressure resistance, compression resistance and structural stability. Secondly, the equipment has strong production adaptability, which can meet the production needs of panels with different specifications, and can flexibly respond to the differentiated needs of different construction scenarios such as wall panels, roof panels and ceiling panels.
In terms of operational economy and environmental protection, the glass wool sandwich panel making machine is designed with energy-saving and consumption-reducing optimization. The intelligent temperature control system can accurately adjust the heating power according to the production load, avoiding unnecessary energy consumption caused by long-term high-power operation. The closed production structure reduces the flying of glass wool fibers and adhesive volatilization during the production process, which not only optimizes the on-site production environment but also meets the requirements of clean production. The high-precision material distribution and coating technology reduces the waste of raw materials, improves the utilization rate of glass wool and adhesive materials, and reduces the production cost per unit product. In addition, the equipment has stable operation performance and low failure rate, which reduces the frequency of equipment maintenance and parts replacement, and effectively saves later operation and maintenance costs for production enterprises.
With the continuous advancement of green building and energy-saving emission reduction policies in the construction industry, the market demand for high-performance fire-resistant and thermal insulation sandwich panels is growing steadily, which also promotes the continuous technological iteration of glass wool sandwich panel manufacturing line. Modern glass wool sandwich panel machines are developing towards higher automation, stronger intelligence, more stable operation and more diversified production. The upgraded equipment further optimizes the linkage coordination of each functional module, improves the overall production speed and operation stability, and can realize the integrated production of multi-specification and multi-type composite panels. At the same time, the equipment’s adaptive adjustment capability for new environmental protection materials is continuously enhanced, which can adapt to the processing and production of new modified glass wool core materials and environmental protection adhesives, matching the development trend of green building materials.
In practical industrial application, the glass wool sandwich panel manufacturing machine has become the preferred production equipment for most building material manufacturing enterprises. The high-quality glass wool sandwich panels produced by this equipment have excellent fire resistance, thermal insulation, sound absorption and noise reduction effects, as well as light weight, high strength and convenient installation characteristics. These panels are widely used in the enclosure structure of industrial workshops and warehouses, the interior and exterior wall decoration of commercial buildings, the construction of prefabricated temporary buildings, and the energy-saving renovation of old buildings. The stable product quality and efficient production efficiency brought by professional production equipment not only help production enterprises improve market competitiveness but also provide reliable material support for the high-quality development of the construction industry. In the future, with the continuous innovation of mechanical manufacturing technology and building material technology, the glass wool sandwich panel machine will continue to optimize its structural design and intelligent functions, and play a more important role in the field of green energy-saving building material production.
