The overall structural composition of the roof rock wool sandwich panel production line covers the entire industrial chain from raw material feeding to finished product output, including raw material unwinding and pretreatment units, surface plate roll forming systems, rock wool core material processing and laying mechanisms, automatic gluing systems, composite pressing and curing units, fixed-length cutting systems, and finished product conveying and sorting structures. Each functional unit is designed with targeted process logic to adapt to the physical characteristics of metal surface materials and rock wool core materials, ensuring that every link from material shaping to composite molding maintains high precision and operational stability. The system's internal linkage control realizes synchronous speed matching and process parameter synchronization among all units, which is the core guarantee for the continuous and stable operation of the entire sandwich panel production line and the consistent quality of finished panels.
The production process of roof rock wool sandwich panels starts with the pretreatment of metal surface materials, which are the outer protective and load-bearing layers of the finished panels. Metal coil materials are placed on the unwinding device of the rock wool sandwich panel line, and the automatic unwinding structure steadily releases the coil materials at a constant speed to avoid tension deviation and material deformation caused by uneven feeding. After unwinding, the metal sheets enter the roll forming unit composed of multiple groups of precision roller sets. Through gradual rolling and shaping of different roller profiles, the flat metal sheets are processed into special roof plate profiles with structural ribs and waterproof grooves. This gradual forming process can effectively eliminate the internal stress of metal materials, prevent subsequent panel deformation and warping, and ensure the flatness and three-dimensional structural accuracy of the roof panel surface. During this process, the production line's fine-tuning structure can appropriately adjust the rolling gap and forming angle according to the processing requirements of different plate specifications, realizing flexible adaptation to various conventional roof panel profile designs.
While the surface metal materials are being processed and formed, the rock wool sandwich panel machine synchronously completes the pretreatment and laying of the rock wool core material, which determines the core functional performance of the roof panel such as fire resistance and thermal insulation. Rock wool raw materials derived from natural mineral raw materials have inherent excellent non-combustible performance and low thermal conductivity, but the original rock wool blocks need standardized processing to meet the composite molding requirements of sandwich panels. The production line's core material processing unit first carries out automatic sorting and thickness calibration of rock wool raw materials, removing uneven and unqualified materials to ensure the uniform thickness and consistent density of the core material layer. After calibration, the rock wool materials are cut into continuous strip structures matching the width of the metal surface plates, and then evenly and flatly laid between the upper and lower metal surface layers through an automatic distributing mechanism. The intelligent laying system can control the spacing and compactness of rock wool arrangement, effectively avoiding hollow gaps and local sparse areas inside the core layer, which ensures the overall uniformity of the panel’s thermal insulation and fire resistance performance.
The bonding and composite pressing stage is the key link to determine the overall structural firmness of the roof rock wool sandwich panel. The rock wool board production line is equipped with an automatic circulating gluing system, which evenly coats high-performance environmental adhesives on the bonding surfaces of the formed metal plates and rock wool core materials. The gluing system adopts quantitative spraying and scraping technology to control the glue coating amount and uniformity accurately, avoiding quality problems such as insufficient bonding strength caused by too little glue and surface overflow and material waste caused by too much glue. After uniform gluing, the assembled composite structure of metal plate and rock wool core material enters the double-belt composite pressing unit. Under the dual action of constant pressure and appropriate temperature provided by the pressing system, the adhesive quickly penetrates into the tiny gaps on the surface of rock wool and metal materials, completing firm bonding and curing molding. The constant pressure control system of the sandwich panel machinery can maintain stable pressing force in the continuous production process, ensuring that the bonding interface of each part of the panel is tightly fitted, and the integrated structure formed after curing can effectively resist external pressure, bending and shear force, greatly improving the overall structural stability and service life of the roof panel.

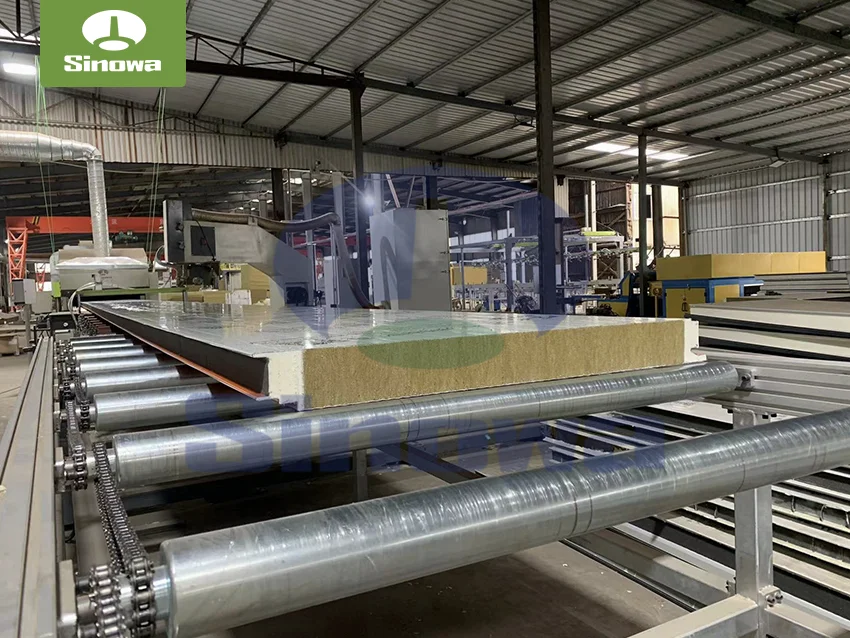

After composite curing and preliminary molding, the continuous long strip of sandwich panels is transported to the fixed-length cutting unit through the automatic conveying system. The high-precision cutting device of the rockwool sandwich panel production line can set arbitrary cutting length parameters according to actual application needs, and completes fast and neat fixed-length cutting through synchronous tracking and positioning technology. The cutting process realizes flat incision without burrs and deformation, ensuring the dimensional accuracy of each finished panel. At the same time, the roof sandwcih panel production line is equipped with a trimming and edge-sealing structure, which can trim the excess edge materials of the panels and complete fine edge-sealing treatment, effectively preventing the rock wool core material from absorbing moisture and falling off from the edge, and further improving the waterproof performance and structural durability of the roof panels. After cutting and trimming, the qualified finished panels are automatically conveyed to the sorting and stacking area, and the mechanical stacking device completes orderly stacking of the finished products, realizing automatic and unmanned operation of the whole process from production to finished product collection.
The advanced process design of the roof rock wool sandwich panel production machine endows the produced roof panels with multiple superior performance characteristics that are highly adapted to modern building needs. First of all, the rock wool core material processed by standardized production has excellent fire resistance, which can effectively block the spread of flame and heat flow in case of building fire, providing reliable safety protection for building roofs. The uniform internal structure of the rock wool layer also forms a stable thermal insulation barrier, which can effectively isolate the indoor and outdoor heat exchange, reduce the energy consumption of building heating and cooling, and achieve significant energy-saving effects. In terms of sound insulation performance, the porous and fibrous structure of rock wool can absorb and weaken sound wave transmission, greatly reducing the interference of external noise to the indoor environment and improving the comfort of building use.
In terms of structural performance, the composite structure formed by the precise lamination of metal plate and rock wool material through professional production technology has an excellent strength-to-weight ratio. Compared with traditional concrete and brick roofing structures, the finished roof panels are lighter in weight, which can effectively reduce the self-weight load of the building body, reduce the construction pressure of the main structure, and lower the overall construction cost of the project. At the same time, the metal surface layer processed by precision rolling has good weather resistance, and can resist the erosion of natural environments such as ultraviolet rays, rainwater and temperature changes, avoiding aging, fading and corrosion damage in long-term outdoor use. The edge-sealing and integral composite process of the roof sandwich panel line also optimizes the waterproof and moisture-proof performance of the panels, preventing rainwater from penetrating into the core layer and causing mildew, deformation and performance attenuation, ensuring long-term stable use of the roof in various complex climatic environments.
In terms of production efficiency and operational advantages, the fully continuous automated operation mode of the roof rock wool sandwich panel manufacturing line completely changes the inefficient production mode of traditional manual auxiliary processing. The highly synchronous linkage of each functional unit realizes uninterrupted continuous feeding, forming, composite molding and cutting output, greatly improving the unit time output of finished products. The intelligent parameter control system can uniformly standardize the process parameters such as forming pressure, gluing amount, curing temperature and cutting size, eliminating the quality differences caused by manual operation experience, and making the batch production quality of panels more stable and consistent. In addition, the production line has a high degree of material utilization. The precise cutting and laying technology effectively reduces the waste of metal plates and rock wool core materials, realizing efficient utilization of raw materials and meeting the development requirements of energy conservation and environmental protection in modern manufacturing industry.
The roof rock wool sandwich panels produced by this professional production line have extremely wide application scenarios in modern construction engineering, covering various industrial and civil building fields. In industrial plants, logistics warehouses and large-span factory buildings, the lightweight, high-strength, fire-proof and heat-insulating characteristics of the panels can meet the special functional requirements of large-space buildings for roof safety and energy conservation, and the modular panel structure is convenient for rapid assembly and construction, greatly shortening the construction cycle of the project. In public buildings such as schools, hospitals and office buildings, the excellent sound insulation and fire-proof performance of the panels can create a safe and comfortable indoor environment, meeting the high-standard use requirements of public facilities. In addition, the panels are also widely used in temporary construction facilities, scenic area supporting buildings and low-rise residential buildings, adapting to the construction needs of different building types with their comprehensive and balanced performance.
With the continuous development of modern building industrialization and green building concepts, the market demand for high-performance, energy-saving and safe roof enclosure materials is constantly upgrading, which also promotes the continuous technological optimization and functional upgrading of roof rockwool sandwich panel production line. Modern production line design pays more attention to intelligent and flexible production capacity, which can adapt to the personalized production needs of different panel specifications, profile shapes and functional configurations. At the same time, the optimized mechanical structure and control system further improve the operational stability and energy-saving performance of the equipment, reduce the energy consumption and failure rate in the production process, and realize more efficient and environmentally friendly manufacturing. The standardized and streamlined production mode supported by the sandwich panel making machine also promotes the standardized development of building roof materials, provides unified and high-quality material support for large-scale and industrialized building construction, and plays an important role in promoting the upgrading of the overall quality level of the construction industry.
In practical industrial production applications, the stable operation of the roof rockwool sandwich panel line depends on the matching of each process link and the daily standardized maintenance of the equipment. The coordinated operation of the unwinding system, forming system, gluing composite system and cutting system ensures the continuity of the production process, and the real-time monitoring mechanism of the equipment can timely perceive the abnormal state of material feeding, processing parameters and product molding, effectively avoiding batch quality problems. The mature and reliable production process accumulated by the equipment in long-term industrial practice makes the produced roof panels have stable comprehensive performance, good structural compatibility and convenient construction performance, which can adapt to the diverse and complex use environments of modern buildings. Whether it is high-temperature and rainy areas, cold and windy areas or dry and high-altitude areas, the roof panels produced by this production line can maintain stable service performance and provide long-term reliable enclosure protection for buildings.
To sum up, the roof rockwool sandwich panel manufacturing line is an indispensable core equipment for the standardized and large-scale production of modern high-performance building roof materials. It integrates advanced mechanical manufacturing technology, intelligent control technology and new material composite molding technology, and realizes the efficient and high-quality production of rock wool sandwich roof panels through precise process control and synchronous linkage operation of multiple units. The excellent fire resistance, thermal insulation, sound insulation, weather resistance and structural stability of the finished products fully meet the diversified functional needs of modern buildings for roof structures. With the continuous progress of construction technology and the continuous improvement of green building standards, this type of sandwich panel production equipment will continue to iterate and upgrade in terms of intelligence, efficiency and environmental protection, providing more powerful technical and equipment support for the high-quality development of the construction industry and the popularization of green energy-saving buildings.
