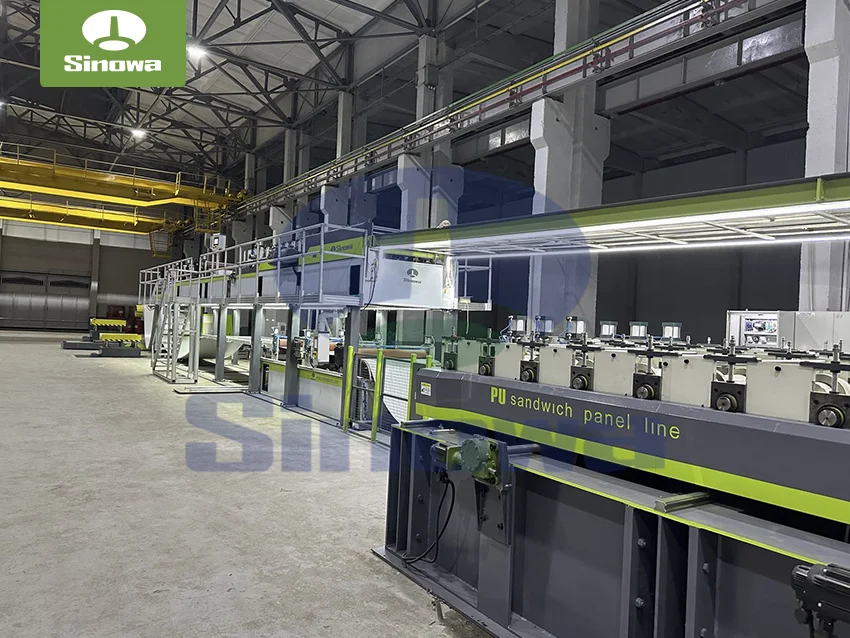

sandwich panel line
The basic structural composition of the foam core sandwich panel line covers a complete set of functional units covering raw material feeding, surface material forming, core material filling, composite pressing, constant-temperature curing, edge trimming, fixed-length cutting, and finished product output. Each unit is precisely matched in operating speed and process parameters, forming a closed-loop production system with highly coordinated operation. The front-end feeding unit is designed for the unreeling and preprocessing of color steel coils, achieving stable and continuous conveying of metal surface materials. Before formal compounding, the color steel sheets will go through surface leveling and pretreatment processes to eliminate surface wrinkles, tension deviations, and residual impurities generated during coil unreeling, laying a foundation for tight lamination and stable adhesion of subsequent composite layers. This pretreatment link is crucial for improving the flatness and overall quality of finished panels, as uneven surface flatness or residual contaminants will directly affect the bonding firmness between steel sheets and foam cores.
The core functional module of the entire continuous sandwich panel line focuses on foam material proportioning, pouring, and composite forming. The system adopts precise proportional mixing technology for liquid foam raw materials, controlling the mixing ratio and flow rate of raw materials through intelligent parameter adjustment to ensure the uniformity of foam density and cellular structure. After being fully mixed, the foam raw materials are evenly poured between the upper and lower layers of pretreated color steel sheets. With the operation of the double-track conveyor system, the three-layer structure of upper steel sheet, foam core, and lower steel sheet enters the closed curing and pressing area synchronously. The conveyor belt in the curing area maintains a fixed and adjustable gap, which accurately controls the thickness specification of the finished panel, while the constant-temperature heating system creates a stable reaction environment for foam foaming and curing. In this enclosed space, the foam materials undergo uniform expansion and solidification, forming a dense and seamless thermal insulation core layer, and achieve integrated bonding with the color steel sheets under continuous and uniform pressure.
Temperature and pressure control are the two core technical factors that determine the forming quality of sandwich panels in the production process. The automatic sandwich panel production line is equipped with a real-time parameter sensing and adjustment system, which can dynamically monitor the temperature of the curing chamber, the operating speed of the conveyor belt, and the pressing force of the composite unit during the entire production process. Slight deviations in process parameters will be automatically corrected by the system to ensure that each batch of panels maintains consistent thickness, density, and bonding strength. Excessively high or low temperature will lead to incomplete foaming or excessive expansion of the foam core, resulting in unstable internal structure and reduced thermal insulation performance; uneven pressing pressure will cause local delamination between the steel sheet and the core layer, affecting the structural durability of the panel. The refined parameter control mode of the modern production line completely avoids the quality instability problems caused by manual experience judgment in traditional processing methods.
After completing curing and composite forming, the continuous integrated panel will enter the finishing and sizing processing stage. The automatic edge trimming unit first removes the irregular residual materials on both sides of the panel to ensure the neatness and uniformity of the panel width. This process eliminates the edge bulges and uneven structures generated during foam overflow and composite pressing, making the edge size of the panel accurate and consistent, which facilitates seamless assembly and installation in subsequent construction projects. Subsequently, the intelligent tracking cutting system performs fixed-length cutting according to preset dimensional parameters. The cutting unit can adapt to different length requirements of engineering applications, realizing flexible switching of production specifications without stopping the line. The cutting process adopts high-precision servo control technology, ensuring smooth and flat cutting sections without burrs or deformation, which effectively improves the yield rate of finished products and reduces material loss.
The operational advantages of the foam color steel sandwich panel production line are prominently reflected in automation integration and production efficiency. The entire production process from raw material input to finished product output basically realizes unmanned continuous operation, with only a small number of personnel responsible for equipment operation monitoring, parameter debugging, and daily maintenance. Compared with semi-automatic production equipment that requires multiple manual docking processes, the integrated production mode greatly reduces labor investment and avoids product quality fluctuations caused by manual operation errors. The synchronized operation of all functional units realizes uninterrupted continuous production, significantly improving unit time output. At the same time, the centralized control system simplifies the production operation logic, and operators can complete the switching of different product specifications and the adjustment of process parameters through a simple operation interface, realizing flexible production of diversified products.
In terms of product performance optimization, the production line's precise process control endows foam color steel sandwich panels with excellent comprehensive performance. The uniformly foamed core layer forms a closed-cell structure with low thermal conductivity, which provides outstanding thermal insulation and heat preservation effects for the panels, effectively reducing the energy consumption of building temperature regulation. The composite structure of double-layer color steel sheets and foam core also gives the panels good sound insulation and shock resistance. The dense foam core can absorb and isolate sound wave transmission, while the integral composite structure disperses external impact force, improving the structural stability and service life of the panels. In addition, through the optimized lamination process of the production line, the bonding interface between the steel sheet and the foam core maintains high compactness, avoiding delamination, cracking, and other quality problems that are prone to occur in long-term use, ensuring the long-term stable performance of the panels in complex building environments.
The production line also has outstanding advantages in material utilization and energy saving. The intelligent raw material proportioning and pouring system accurately controls the dosage of foam raw materials, avoiding raw material waste caused by excessive feeding in traditional processes. The closed foaming and curing environment reduces the volatilization loss of raw materials and improves the effective utilization rate of production materials. At the same time, the circulating temperature control system of the curing area optimizes energy consumption output, realizing reasonable matching of energy supply and production demand, reducing invalid energy consumption in the production process. The finished panels produced by this line have the characteristics of light weight and high strength, which can reduce the self-weight of building structures, lower the load-bearing pressure of building foundations, and further reduce the overall construction cost and resource consumption of engineering projects in the application link.
With the continuous upgrading of building energy-saving and environmental protection standards, the technological iteration of foam color steel sandwich panel machine is also accelerating. Modern production lines are gradually developing toward intelligent, high-precision, and green production. The introduction of real-time data monitoring and remote debugging functions enables production equipment to realize automatic early warning and fault diagnosis, reducing equipment failure downtime and improving production continuity. The optimized mechanical structure design further improves the running stability of the equipment, reduces operating noise and mechanical wear, and extends the service life of the production line. In terms of environmental protection production, the upgraded production process effectively controls the generation of waste gas and waste residues in the foaming reaction process, realizes clean and low-carbon production, and meets the increasingly strict environmental protection production requirements of the modern building materials industry.
The products manufactured by the foam color steel sandwich panel line have a wide range of application scenarios in the construction field. They are widely used in the enclosure structures of industrial plants, logistics warehouses, temporary construction facilities, cold storage insulation projects, and public building decoration. In industrial construction, the lightweight and rapid assembly characteristics of the panels can greatly shorten the construction cycle of factory buildings; in cold storage and constant-temperature storage projects, the excellent thermal insulation performance of the panels effectively maintains the internal temperature stability and reduces long-term operation energy consumption; in temporary engineering construction, the standardized and modular panel products realize rapid assembly and disassembly, improving the construction efficiency of temporary facilities. The diversified application value of the products also drives the continuous optimization and upgrading of production line technology, prompting production equipment to adapt to more complex and diverse engineering application demands.
In the context of the rapid development of modern prefabricated buildings, the foam color steel sandwich panel manufacturing line, as a key equipment for the production of prefabricated building materials, plays an important role in promoting the industrialization and standardization of the construction industry. The standardized production mode of the production line unifies the dimensional specifications and performance indicators of sandwich panels, providing high-quality and consistent basic materials for prefabricated building assembly construction. Compared with traditional on-site pouring and bricklaying construction methods, the factory prefabricated production mode realized by the production line reduces on-site construction pollution and labor input, improves the precision and quality stability of building enclosure structures, and is in line with the development trend of green, efficient, and intelligent modern construction industry. With the continuous expansion of the prefabricated building market and the continuous improvement of energy-saving building standards, the market demand for high-performance foam color steel sandwich panels will continue to grow, which will further drive the technological innovation and performance upgrading of supporting production lines.
In conclusion, the foam color steel sandwich panel line is a highly efficient, intelligent, and environmentally friendly integrated production system tailored to the production needs of modern energy-saving building materials. Through precise process control, automated integrated operation, and optimized structural design, it realizes high-quality and large-scale production of foam color steel sandwich panels, and the produced panels have excellent thermal insulation, sound insulation, structural stability, and construction convenience. It not only solves the problems of low efficiency, unstable quality, and high resource consumption in traditional panel production processes, but also provides reliable material support for the high-quality development of prefabricated buildings, industrial construction, and energy-saving building projects. With the continuous progress of industrial manufacturing technology and the upgrading of building industry demands, this type of production line will continue to evolve toward higher precision, higher automation, and greener production, continuously releasing greater application value in the field of modern building materials manufacturing.
