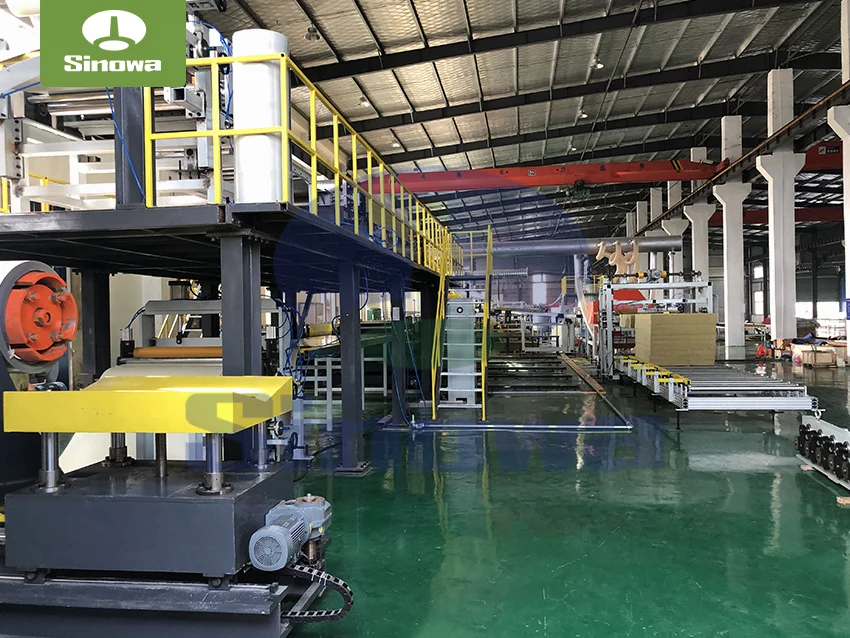

sandwich panel machine
The overall structural design of the fireproof rock wool sandwich panel machine follows the concepts of integrated integration, stable operation, and intelligent control, with each functional module closely connected and coordinated to form a continuous and efficient production chain. The whole production line is composed of raw material feeding system, surface plate leveling and forming system, automatic gluing system, rock wool core material arranging and conveying system, high-pressure heating composite system, cooling shaping system, fixed-length cutting system, edge sealing processing system and finished product conveying and stacking system. Each module is independently optimized in structure and function while maintaining precise docking in operation rhythm, ensuring the continuity and stability of the entire production process. The mechanical frame adopts high-strength welded structural parts with reinforced rigidity and shock resistance, which can effectively resist vibration and deformation during long-term high-load operation, guaranteeing the dimensional accuracy of finished panels and the consistency of product quality for a long time. In addition, the equipment is equipped with a professional dust removal and purification device near the rock wool processing area, which can effectively collect scattered rock wool fibers and dust generated during production, maintain the cleanliness of the production environment, avoid fiber accumulation affecting the operation precision of mechanical parts, and reduce the impact of production dust on the working environment, realizing environmentally friendly and standardized production operation.
The raw material feeding and pretreatment stage is the primary link to ensure the quality of finished panels, and the rock wool sandwich panel production line achieves automated and precise feeding of upper and lower metal surface plates and rock wool core materials through a professional feeding system. The metal coil feeding part adopts a hydraulic automatic unwinding structure, which can stably release metal coils of different specifications without manual auxiliary feeding, and is matched with a high-precision leveling mechanism. Multiple groups of parallel leveling rollers carry out multi-stage calibration on the surface plate, effectively eliminating the internal stress and surface wrinkles of the metal plate caused by coiling and transportation, ensuring the flatness and straightness of the surface plate before composite molding. For the rock wool core material, the supporting conveying and arranging mechanism can automatically sort and arrange loose rock wool strips or rock wool blocks, adjust the density and arrangement uniformity of the core material in real time, and avoid hollow gaps and uneven density inside the panel core layer, which is crucial to maintaining the overall fire resistance and thermal insulation performance of the sandwich panel. Before formal lamination, the equipment is also equipped with a surface cleaning and activation process, which removes oil stains, dust and oxide layers on the inner surface of the metal plate through physical treatment, improves the surface activity of the material, and creates optimal conditions for subsequent adhesive bonding, ensuring a firm combination between the surface plate and the core material.
The automatic gluing and pre-composite link is a key process that determines the bonding firmness and overall structural stability of the sandwich panel, and the fireproof rock wool sandwich panel line is equipped with a high-precision constant-pressure gluing system independently adapted to rock wool composite processing. The system adopts a multi-point uniform gluing mode, which can evenly coat high-performance environmental polymer adhesive on the bonding surfaces of the upper and lower metal plates and the rock wool core material. The gluing amount and gluing range can be automatically adjusted according to different panel thicknesses and production specifications, realizing precise quantitative gluing and avoiding quality problems such as insufficient bonding caused by uneven glue application or panel bulging caused by excessive glue accumulation. The selected adhesive has the characteristics of fast curing speed, strong adhesion and aging resistance, and can form a tough and stable bonding layer after curing, tightly combining the metal surface plate and the rock wool core material into an integrated structure without delamination or cracking. After the completion of gluing, the pre-composite mechanism preliminarily fits the surface plate and the core material, and carries out preliminary shaping and positioning to ensure the alignment accuracy of the upper and lower plates and the core material, laying a foundation for subsequent high-pressure curing and shaping.
High-pressure heating curing and composite molding is the core functional stage of the rockwool board production line, which directly determines the structural strength, dimensional stability and service life of the finished sandwich panel. The equipment is equipped with a double-track constant-pressure pressing structure, which can provide uniform and stable pressure for the composite panel in the continuous conveying process, so that the adhesive can fully infiltrate the material surface and complete rapid cross-linking curing. The integrated heating and temperature control system can accurately adjust the internal curing temperature according to the material characteristics and production speed, maintain a constant and uniform heating environment in the curing area, avoid local overheating that may damage the fiber structure of rock wool core material or burn the surface coating of the metal plate, and also prevent insufficient curing caused by low temperature affecting bonding strength. In the high-pressure and high-temperature composite state, the micro gaps between the rock wool fibers and between the core material and the surface plate are fully filled by the cured adhesive, forming an integrated compact structure. This processing mode effectively solves the common problems of traditional production such as weak bonding, easy delamination, and poor overall flatness of panels, and greatly improves the structural tightness and mechanical stability of rock wool sandwich panels. The continuous rolling and pressing mode also ensures that each position of the panel bears uniform pressure, making the overall thickness and flatness of the finished product more consistent.
After high-temperature curing and composite molding, the panel enters the cooling and shaping stage to complete the final stabilization of the structural state. The rockwool sandwich panel machinery is equipped with a combined cooling system combining forced air cooling and natural cooling buffer zone, which can gradually reduce the surface and internal temperature of the high-temperature cured panel at a stable speed. Gradual cooling can effectively eliminate the internal thermal stress generated by high-temperature pressing of the panel, avoid panel deformation, warping and shrinkage cracks caused by rapid temperature change, and further stabilize the bonding strength and overall shape of the composite structure. The length of the cooling buffer zone is reasonably matched with the production speed, ensuring that the panel can fully complete structural shaping in the conveying process, maintain long-term dimensional stability in the subsequent use process, and will not produce deformation or loose bonding due to residual stress. After cooling and shaping, the flatness, thickness uniformity and structural compactness of the panel reach the standard requirements, and then enter the post-processing link for fine finishing.
The post-processing system of the equipment realizes one-stop finishing of panels through multiple functional modules such as edge sealing, fixed-length cutting and surface finishing, improving the integrity and appearance quality of finished products. The edge sealing mechanism can fill and seal the gaps at the edges of the composite panels with high-performance filling materials, or carry out edge reinforcement treatment according to the processing requirements, effectively preventing the rock wool core material from absorbing moisture and dust from the edge gaps in the later use process, avoiding the attenuation of thermal insulation and fire resistance performance caused by core material moisture absorption, and improving the overall durability and sealing performance of the panel. The fixed-length cutting module adopts a non-stop precision cutting design, which can complete fixed-size cutting in the continuous conveying state of the panel without shutting down, ensuring the continuity of production and improving production efficiency. The cutting tool has high hardness and wear resistance, which can realize smooth and burr-free cutting sections, ensuring neat and flat panel edges. After cutting, the rock wool sandwich panel production machine is matched with an automatic sorting and stacking device, which can automatically stack qualified finished panels neatly, reducing manual handling links, lowering labor intensity, and avoiding panel surface scratches and deformation caused by manual operation.
In terms of operation control, the fireproof rock wool sandwich panel making machine adopts an integrated intelligent control system, with a centralized operating interface that can uniformly adjust and monitor all production links. The system supports the setting of multiple production parameters, and operators can switch production specifications of panels with different thicknesses and sizes through simple parameter adjustment, realizing flexible production of diversified products. The built-in real-time monitoring function can track the operating state of each module such as feeding, gluing, pressing and cutting in real time, and automatically trigger early warning and protection mechanisms when abnormal parameters such as unstable pressure, abnormal temperature and blocked material conveying occur, effectively avoiding equipment failure and product quality problems caused by abnormal operation. The automated control mode greatly reduces the dependence on manual operation, reduces human error in the production process, and significantly improves production consistency and product qualification rate. At the same time, the equipment has a humanized structural design, with convenient disassembly and maintenance of easily worn parts, simple daily maintenance and upkeep, and low later operation and maintenance costs, which is suitable for long-term and high-intensity industrial production.
The technical advantages of the fireproof rock wool sandwich panel manufacturing machine are fully reflected in the targeted optimization for rock wool material processing and panel performance improvement. Rock wool itself has excellent fire resistance, heat insulation and sound absorption performance, but its fiber structure is loose and its ductility is poor, which puts forward higher requirements for the bonding and pressing process in composite processing. This equipment adopts targeted structural and process optimization for the material characteristics of rock wool, effectively solving the industry pain points of poor bonding firmness, easy fiber scattering and low overall compactness of traditional rock wool sandwich panels. The integrated full-automatic production process realizes seamless docking of all links from raw material input to finished product output, avoids quality fluctuations caused by intermediate manual intervention, and ensures that the fire resistance, thermal insulation performance and mechanical strength of each batch of panels remain stable. Compared with semi-automatic production equipment, it has higher production efficiency, better product consistency and lower comprehensive production cost, and can meet the large-scale and standardized production needs of building materials enterprises.
In practical industrial production applications, the fireproof rock wool sandwich panel manufacturing line has strong production adaptability and can meet the production needs of rock wool sandwich panels for multiple application scenarios. The finished panels produced by this equipment have excellent fireproof and flame-retardant performance, good thermal insulation and energy-saving effect, outstanding sound insulation and shock absorption ability, and stable structural performance, and are widely used in the enclosure structure of industrial plants, warehouse buildings, public building thermal insulation projects, clean room construction and other fields. The efficient and stable production capacity of the equipment provides reliable equipment support for the popularization and application of high-performance fireproof and thermal insulation building materials, and plays an important role in promoting the upgrading of the construction industry's energy-saving and fire protection level. With the continuous improvement of building energy-saving standards and fire protection requirements in the construction field, the market demand for high-quality rock wool fireproof sandwich panels continues to grow, and this professional production equipment, as the core carrier of product manufacturing, is also constantly moving towards more intelligent, efficient and environmentally friendly development.
In conclusion, the fireproof rockwool sandwich panel machine is a highly professional and integrated intelligent production equipment tailored to the production characteristics of fireproof rock wool sandwich panels. Through the optimized design of multiple functional modules and the precise control of the production process, it realizes standardized, efficient and stable manufacturing of high-performance fireproof thermal insulation panels, makes up for many deficiencies of traditional production processes, and ensures the excellent performance and stable quality of finished building materials. Its automated operation mode, reliable structural performance and flexible production capacity not only improve the production efficiency and product competitiveness of building materials production enterprises, but also provide high-quality basic materials for the safe, energy-saving and high-quality development of modern construction engineering. As the construction industry continues to advance in the direction of green energy conservation and safety and environmental protection, this type of professional sandwich panel production equipment will continue to exert important value in the field of building materials manufacturing and become an important driving force for the iterative upgrading of fireproof thermal insulation building materials technology.
