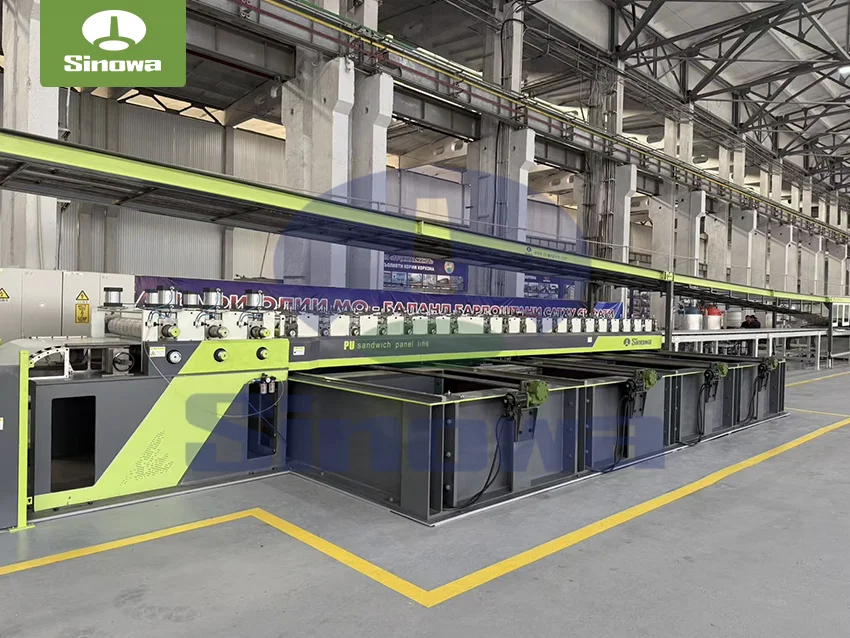

sandwich panel machine
The basic working logic of the safe insulation sandwich panel machine revolves around the composite molding principle of layered lamination and constant-pressure curing. The entire production process starts with the feeding and pretreatment of raw materials, where coiled metal surface materials are released, leveled, and shaped through automated feeding units to eliminate surface wrinkles, uneven tension, and dimensional deviations that may occur during raw material storage and transportation. The precision tension control system embedded in the equipment can dynamically adjust the conveying speed and material tightness according to the thickness and hardness of different metal sheets, maintaining a uniform stress state for the surface materials and ensuring the stability of subsequent molding and composite processes. While completing the pretreatment of the upper and lower surface materials, the equipment synchronously realizes the accurate distribution and laying of the intermediate thermal insulation core materials. For flexible foam core materials, the equipment adopts a high-precision mixing and dispensing system to blend chemical components in real time, generating uniform and fine foam structures that fill the gap between the two layers of surface materials. For rigid core materials such as mineral wool and polystyrene, the precision positioning and feeding mechanism can evenly arrange the core materials to avoid gaps, offsets, and uneven thickness, ensuring the overall structural uniformity of the finished sandwich panels.
The lamination and pressure curing stage is the core link that determines the bonding strength and thermal insulation performance of sandwich panels, and it is also the key part of the equipment's safety and performance advantages. The insulation sandwich panel equipment is equipped with a stable double-belt pressing system, which provides constant and uniform pressure throughout the composite molding process. This continuous pressure environment enables the surface materials and core materials to form a tight integrated structure without local degumming or hollowing. Matching with the pressure system is the intelligent temperature control curing unit, which accurately adjusts the curing temperature according to the characteristics of different core materials and adhesive components. Reasonable temperature and pressure coordination promotes the full reaction and solidification of bonding materials, enhances the interfacial bonding force between layers, and further optimizes the structural compactness of the panels. The entire curing process is completed in a closed and stable operating environment, avoiding the impact of external temperature and humidity changes on product molding, and effectively improving the weather resistance and service life of finished panels.
In terms of structural design, the safe insulation sandwich panel making machine adopts an integrated heavy-duty frame structure, which improves the overall rigidity and operational stability of the equipment. The optimized mechanical structure can effectively reduce vibration and noise during high-speed operation, avoid equipment displacement and component wear caused by long-term continuous operation, and extend the stable service cycle of the equipment. All transmission components and moving parts are equipped with protective structures and limit devices, which can automatically sense abnormal operating states such as material jamming, overload operation, and speed deviation. Once abnormal conditions are detected, the equipment will trigger an automatic protection mechanism, suspend the production process in a timely manner, and avoid equipment failure, material waste, and operational safety risks caused by abnormal operation. This inherent safety design runs through every processing link, fundamentally reducing potential safety hazards in the production process and creating a safe and standardized operating environment for production personnel.
The automated control system is an indispensable core part of the safe insulation sandwich panel production machine, realizing intelligent and precise control of the entire production process. The centralized control platform integrates parameter setting, process monitoring, data feedback, and fault self-diagnosis functions. Operators can complete the adjustment of production parameters such as panel thickness, molding speed, and cutting size through a simple human-computer interaction interface. The system can automatically record and analyze production data in real time, dynamically optimize the production rhythm according to raw material changes and production load, and maintain the consistency of product dimensional accuracy and structural performance. Compared with traditional semi-automatic equipment, the highly automated control mode reduces manual operation links, lowers the error rate caused by human operation, and effectively reduces the labor intensity of operators. At the same time, the fault self-diagnosis function can quickly locate abnormal parts and problem types, providing accurate maintenance guidance for technical personnel, improving equipment maintenance efficiency, and reducing production downtime losses.
The complete production workflow of the safe insulation sandwich panel manufacturing machine covers raw material pretreatment, core material compounding, lamination curing, fixed-length cutting, surface finishing, and automatic stacking, forming a fully closed-loop production system. After the metal coil is uncoiled and leveled, it enters the roll forming unit, where multiple groups of precision rolling dies gradually bend and shape the flat metal plate to form the standard profile structure required for sandwich panels, ensuring the flatness and edge regularity of the panel surface. After the completion of surface material molding, the equipment synchronously completes core material laying and adhesive spraying, and then sends the composite board body into the double-belt pressure curing system for integrated molding. After full curing and bonding, the continuous panel strip is conveyed to the fixed-length cutting unit, which completes precise cutting according to preset size parameters. The cutting process realizes non-stop dynamic cutting, which not only ensures cutting accuracy but also avoids the efficiency loss caused by equipment start-stop switching. The cut finished panels are finally conveyed to the automatic stacking platform, where neat stacking and temporary storage are completed, laying a foundation for subsequent packaging and transportation.
The products produced by the safe insulation sandwich panel line have excellent comprehensive performance, covering outstanding thermal insulation, sound insulation, fire resistance, and structural stability. The uniform and dense internal structure of the sandwich panel effectively blocks heat conduction, greatly reducing the heat exchange efficiency between the inside and outside of the building, and achieving significant building energy-saving effects. The multi-layer composite structure can also absorb and isolate sound waves, reducing the transmission of external noise and improving the indoor acoustic environment. In terms of structural performance, the integrated composite molding structure enhances the overall mechanical strength of the panel, enabling it to bear certain external pressure and impact, with good wind resistance and seismic performance. In addition, the standardized production process makes the finished panels have stable chemical properties, strong corrosion resistance, and good adaptability to different climatic environments, whether it is high-temperature and humid areas or low-temperature and dry areas, they can maintain long-term stable performance.
In practical industrial applications, the safe insulation sandwich panel production line shows strong versatility and applicability, and can adapt to the production needs of different types of insulation sandwich panels by adjusting process parameters and matching feeding systems. It can produce lightweight insulation panels suitable for prefabricated buildings, high-density insulation panels for cold storage and constant-temperature workshops, and fire-resistant and heat-insulating panels for industrial plants and public buildings. The flexible parameter adjustment capability enables the equipment to meet the differentiated needs of different construction scenarios for panel thickness, insulation grade, and structural strength. At the same time, the continuous production mode of the equipment has high production efficiency, which can meet the large-scale and centralized production needs of building material manufacturers, effectively shorten the production cycle of building panels, and support the rapid construction progress of prefabricated buildings.
The safety optimization design of the sandwich panel production equipment is continuously upgraded with the development of industrial manufacturing technology. In addition to the basic mechanical protection and overload protection functions, the modern safe insulation sandwich panel machine also adds humanized safety protection designs such as emergency stop protection, isolation protection, and power-off self-locking. The key operating areas of the equipment are equipped with isolation baffles and safety warning areas to avoid accidental contact between personnel and moving components. The emergency response system can quickly cut off the power and stop the operation of all components in case of sudden emergencies, maximizing the protection of personnel and equipment safety. The power-off self-locking function can lock the operating state of the equipment after unexpected power failure, prevent equipment misoperation caused by power recovery, and ensure the controllability and safety of the entire production process.
From the perspective of industrial development, the safe insulation sandwich panel manufacturing line is an important equipment support for the upgrading of the building energy-saving material industry. With the global emphasis on green building and low-carbon development, energy-saving and environmentally friendly building materials have become the mainstream development trend of the construction industry. The sandwich panels produced by this equipment have the advantages of light weight, energy saving, environmental protection, and convenient construction, which can effectively reduce the self-weight of buildings, shorten the construction cycle, and reduce building energy consumption and construction waste. The high-efficiency and low-consumption production mode of the equipment itself also conforms to the development concept of green manufacturing, with low energy consumption per unit product, high raw material utilization rate, and no excessive waste discharge in the production process, realizing the coordinated development of production efficiency and environmental protection benefits.
In the future, with the continuous progress of intelligent manufacturing technology, the safe insulation sandwich panel machinery will develop in the direction of higher intelligence, higher precision, and stronger integration. The deep integration of sensor technology, data analysis technology, and automated control systems will further realize real-time monitoring and predictive maintenance of equipment operating status, reduce equipment failure rates, and improve production stability. The optimized mechanical structure and process algorithm will further improve the precision and diversity of panel production, meet the personalized and high-end market demand for building insulation panels, and continue to empower the high-quality development of the prefabricated construction and green building material industries. As a key equipment in the field of building insulation material production, it will always rely on safe, efficient, and stable performance, and play an irreplaceable role in promoting the standardized and intelligent development of the entire industry.
