sandwich panel line
The entire PU sandwich panel production line adopts a continuous integrated production mode, abandoning the fragmented and inefficient operation mode of traditional single-process equipment. The whole production process realizes uninterrupted automated operation, covering multiple core links including surface material uncoiling, surface pretreatment, roll forming, precise raw material mixing, foam pouring, composite lamination, constant-temperature curing, fixed-length cutting, and automatic stacking. Each functional module of the equipment is closely matched in operation rhythm, realizing seamless connection between processes, which not only greatly improves production efficiency but also ensures the consistency and stability of the structural performance and appearance quality of each batch of finished panels. Different from intermittent production equipment, the continuous production structure effectively reduces manual intervention links, lowers the error rate caused by human operation, and makes the whole production process more standardized and intelligent.
The front-end feeding and forming system of the PU sandwich panel line is the foundation to ensure the flatness and structural uniformity of the panel surface. The equipment is equipped with an automatic uncoiling unit, which can stably support the unreeling of various coiled surface materials commonly used for sandwich panels. The built-in automatic coil splicing structure can complete the connection between new and old material coils without stopping the machine, completely avoiding production interruption caused by material replacement and effectively reducing equipment downtime. After uncoiling, the surface materials will pass through a multi-stage leveling and cleaning mechanism, which can remove oil stains, dust and surface irregularities on the material surface, providing a clean and flat bonding base for subsequent composite processing. The matched roll forming system adopts multi-station rolling design, which can carry out precise cold bending forming on the surface material according to the preset panel structural parameters. The orderly arranged rolling groups ensure that the surface material is stressed evenly during forming, effectively preventing deformation, wrinkling and dimensional deviation, and ensuring the accurate forming of panel edge structures and overall dimensions.
The core functional part of the PU sandwich panel machine lies in the polyurethane raw material mixing and foam pouring system, which directly determines the thermal insulation performance, structural strength and service life of the finished panel. The system adopts high-precision metering and dynamic mixing technology to realize the accurate proportioning of polyurethane combined materials. The automatic metering device can stably control the feeding amount of different raw materials, avoid product quality problems such as uneven foam density and insufficient foaming caused by inaccurate proportioning. The fully enclosed mixing structure ensures that the raw materials are fully fused and react evenly, forming a fine and uniform foaming base material. In the pouring link, the adjustable pouring width and thickness structure can evenly distribute the foaming material on the inner side of the lower surface material. The flexible pouring mode can adapt to different panel thickness specifications, realizing accurate filling of the core material and avoiding hollowing, missing pouring and uneven core thickness.
The composite lamination and curing system is a key link to realize the integrated forming of sandwich panels. After the foam material is poured, the upper and lower surface materials and the polyurethane foam core material enter the lamination unit synchronously. The multi-roller composite lamination structure adopts constant-pressure and constant-speed operation mode, which can apply uniform and stable pressure on the composite layer, so that the surface material and the foam core material are closely bonded without gaps. The adjustable lamination pressure and running speed can be matched according to different surface material textures and foam characteristics, ensuring the bonding firmness of the composite structure. The equipped circulating constant-temperature curing system makes full use of waste heat recovery technology to maintain a stable curing temperature in the curing channel. The reasonable temperature gradient setting enables the polyurethane foam to complete full foaming, curing and shaping in the best temperature environment, effectively improving the compactness of the foam core and the overall structural stability of the panel. This energy-saving curing mode not only shortens the curing cycle and improves production efficiency, but also reduces the overall energy consumption of the equipment operation.

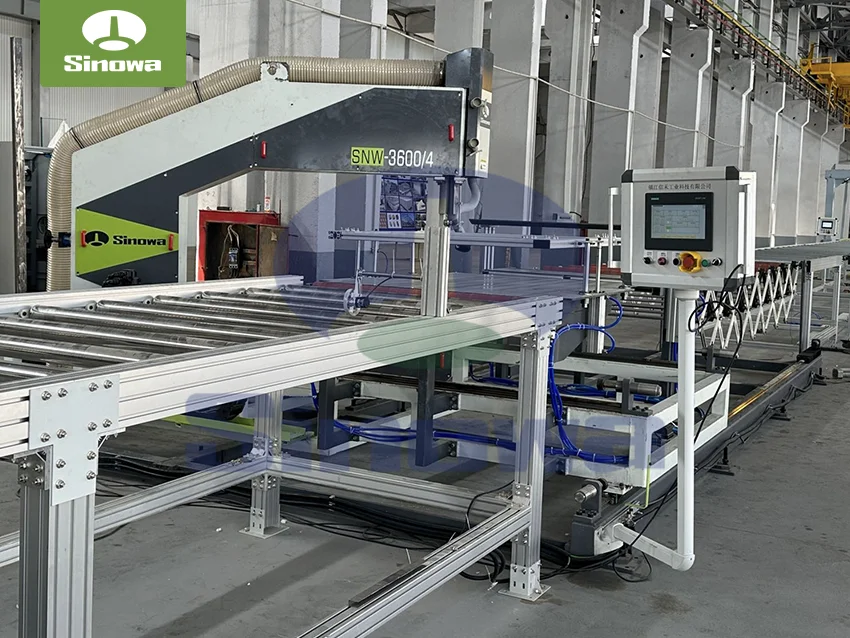

The post-processing part of the polyurethane sandwich panel production line includes high-precision fixed-length cutting and automatic stacking systems, realizing fully automated finished product processing. The online flying cutting mechanism adopts synchronous tracking cutting technology, which can complete fixed-length cutting in the continuous running state of the panel without stopping the production line. The high-precision cutting control system ensures that the cutting size error is controlled within a tiny range, and the cutting section is flat and smooth without burrs, which meets the high-precision size requirements of engineering applications. After cutting, the finished panels are automatically transported to the stacking platform through the conveying system. The intelligent stacking device can realize orderly stacking and arrangement of panels according to the set specifications, and is equipped with a stable anti-collision protection structure to avoid surface scratches and structural damage of panels during stacking. The whole post-processing process does not require manual auxiliary operation, which greatly saves labor costs and improves the neatness and consistency of finished product storage.
In terms of equipment performance and operation advantages, this high-quality polyurethane sandwich panel line has significant characteristics of high efficiency, energy saving and strong flexibility. In terms of production efficiency, the continuous circulating operation mode enables the equipment to maintain stable and efficient production capacity for a long time, and the coordinated operation of each functional module avoids process waiting and efficiency loss. Compared with traditional production equipment, the overall production efficiency is significantly improved, which can meet the large-scale and batch production needs of enterprises. In terms of energy consumption control, the optimized heat circulation and waste heat recovery structure reduces the energy loss in the production process, effectively reducing the comprehensive operating energy consumption of the equipment. At the same time, the intelligent control system can monitor the operating status of each link in real time, automatically adjust parameters such as temperature, pressure and speed according to the production state, avoid energy waste caused by parameter deviation, and realize energy-saving and efficient production.
The equipment has extremely strong production flexibility and can adapt to the production of sandwich panels with different specifications and different application scenarios. By adjusting the equipment parameters, it can produce panels with different thicknesses, widths and structural types, matching the production needs of thermal insulation panels for building exterior walls, roof enclosure panels, cold storage thermal insulation panels, factory interior partition panels and other products. The compatible processing of various surface materials enables the polyurethane sandwich panel machine to meet the diversified material selection needs of different industries. Whether it is conventional metal surface materials or other lightweight decorative surface materials, it can complete stable composite forming, realizing multi-purpose of one machine and greatly improving the utilization rate of production equipment for enterprises.
In terms of operation and maintenance design, the continuous PU sandwich panel line adheres to the humanized and intelligent design concept, reducing the difficulty of equipment operation and daily maintenance. The centralized intelligent control interface integrates all production parameter adjustment and equipment operation monitoring functions, and the intuitive operation screen enables workers to master the production status in real time and complete parameter setting and equipment debugging quickly. The equipment is equipped with a perfect abnormal monitoring and early warning system, which can timely identify abnormal conditions such as parameter deviation, material blockage and equipment failure in the production process, and feed back early warning information to avoid large-scale unqualified products and equipment damage. In terms of daily maintenance, the modular assembly structure is adopted for key components, which is convenient for daily inspection, cleaning and replacement of parts, reducing the maintenance cost and downtime of the equipment, and ensuring the long-term stable operation of the production line.
The finished polyurethane sandwich panels produced by this high-quality production line have excellent comprehensive performance, with outstanding advantages in thermal insulation, sound insulation, waterproof and anti-corrosion, and structural stability. The uniformly foamed polyurethane core material has low thermal conductivity, which can effectively block heat transfer and provide excellent thermal insulation and heat preservation effect for buildings and industrial facilities. The integrated composite structure makes the panel have good overall rigidity and impact resistance, not easy to deform in long-term use, and can adapt to different complex use environments. At the same time, the tight composite structure of the panel effectively isolates water and moisture, and has good waterproof and moisture-proof performance, avoiding the problem of internal mildew and structural damage caused by moisture penetration. These excellent product performances make the panels widely applicable in many fields such as prefabricated buildings, cold chain logistics warehouses, industrial factory buildings, municipal engineering and temporary construction facilities.
From the perspective of industrial application and market value, investing in a high-quality PU sandwich panel continuous production line can bring stable and long-term economic benefits for production enterprises. With the continuous promotion of prefabricated building policies and the rapid development of the cold storage insulation industry, the market demand for high-quality PU sandwich panels has maintained a steady growth trend. The automated and intelligent production mode of the equipment can help enterprises reduce labor input, reduce production error rates, improve product yield, and effectively control comprehensive production costs. The diversified production capacity enables enterprises to enrich product categories, meet the personalized customization needs of different customers, expand market coverage, and enhance market competitiveness. In addition, the stable operation performance and long service life of the sandwich panel equipment reduce the frequency of equipment replacement and maintenance investment, further optimizing the enterprise's production and operation costs.
In the context of the current industrial upgrading and green manufacturing development trend, this high-efficiency and energy-saving continuous PU sandwich panel production line conforms to the industry development direction of low energy consumption, low pollution and high efficiency. The optimized production process reduces material waste and energy consumption in the production process, realizing green and environmentally friendly production. The high-quality finished products produced by the equipment also meet the current market's high requirements for lightweight, energy-saving and environmental protection building materials, and have broad market development space. Whether it is for new enterprises to build production lines or old enterprises to upgrade and replace old equipment, this PU sandwich panel production line is a high-cost-performance and high-value production equipment, which can provide strong technical and sandwich panel machinery support for enterprises to achieve large-scale, standardized and high-quality production of sandwich panels.
