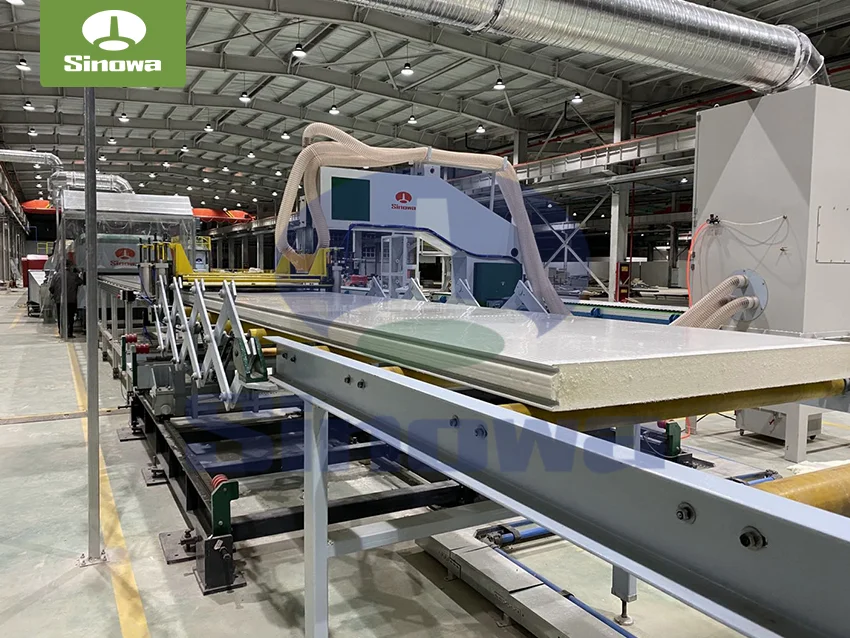

sandwich panel machine
The core operational logic of the punching and silencing sandwich panel machine revolves around precision micro-hole punching and structural sound absorption optimization, coupled with continuous thermal compression compound molding technology. The entire production process abandons the traditional post-processing acoustic modification method for finished panels, and instead completes micro-hole processing on the surface metal base material in the early stage of production, scientifically reserving sound transmission and dissipation channels for the panel structure. During operation, the equipment first realizes stable feeding and precise positioning of metal sheet raw materials through an automatic conveying system. The sheet materials pass through the high-precision punching unit at a constant and controllable speed, where professional punching dies and hydraulic power mechanisms work in coordination to punch dense, uniform micro-holes on the metal surface. These regularly arranged tiny holes do not damage the overall structural strength and surface flatness of the metal sheet, but can effectively capture and dissipate external sound energy. When sound waves hit the panel surface, the micro-hole structure guides sound energy into the internal core layer of the sandwich panel, and the porous core material fully absorbs and consumes sound wave vibration energy, converting acoustic energy into thermal energy to achieve efficient noise reduction and silencing effects.
The internal structural design of the equipment fully considers the continuity and stability of industrial mass production, with each functional module highly matched and coordinated to avoid production discontinuity and precision errors caused by separate processing. The feeding and leveling module adopts a multi-group roller positioning structure, which can automatically correct the deviation of metal sheets during transmission, ensure consistent feeding tension and flatness of raw materials, and lay a foundation for uniform punching density and accurate hole position. The punching core unit is equipped with an adjustable hydraulic transmission system, which can stably output uniform punching force, adapt to metal sheets of different thicknesses and hardness, and avoid punching defects such as hole edge burrs, sheet deformation and hole position deviation. The punching frequency and spacing can be dynamically adjusted according to the production requirements of different panel specifications, realizing flexible switching between high-density fine punching and conventional standard punching modes, so as to meet the sound insulation performance requirements of different application scenarios.
After the completion of surface punching processing, the sandwich panel equipment automatically transfers the processed metal sheet to the core material compounding area, realizing seamless connection between working procedures. In the compounding stage, the equipment accurately paves and laminates different types of core materials between the punched surface sheet and the back base plate. Common core materials include porous lightweight materials with excellent sound absorption and thermal insulation properties, which can form a composite porous sound absorption structure with the punched micro-holes on the metal surface. The equipment is equipped with a constant-temperature thermal pressing system, which applies stable and balanced pressure and temperature to the composite board through multi-stage temperature control and pressure regulation mechanisms. This process enables the core material and the metal board to form a tight integrated structure, effectively avoiding the problems of layered separation, hollow bulging and uneven bonding that easily occur in traditional composite panel production. The constant-temperature molding technology ensures that the internal structure of the panel is compact and uniform, maintaining consistent thermal insulation and sound insulation performance of each finished panel.
The automated control system built into the punching and silencing sandwich panel line is the key to ensuring long-term stable and high-precision operation of the entire production line. The system adopts integrated program control logic, which can realize one-click setting of production parameters such as panel thickness, punching density, processing speed, and molding pressure. During continuous production, the system automatically monitors the operating status of each module in real time, including feeding speed, punching pressure, lamination tightness, and temperature changes in the molding area. Once minor parameter deviations or abnormal operating conditions are detected, the system will automatically fine-tune the operating parameters to ensure the consistency of product quality. In addition, the intelligent control system simplifies the operation process, reduces the dependence on manual operation experience, effectively lowers the error rate in the production process, and greatly improves the qualification rate of finished products. The whole production process realizes continuous and uninterrupted operation from raw material feeding, punching processing, core material compounding, thermal compression molding to fixed-length cutting, forming a fully automated closed-loop production workflow.
In terms of product performance optimization, the unique punching and silencing structural design realized by this equipment makes the finished sandwich panels break through the performance limitations of traditional single-functional thermal insulation panels. Traditional sandwich panels mainly rely on the structural isolation of core materials to achieve thermal insulation and basic sound insulation effects, with limited noise reduction capacity, especially poor absorption effect on medium and high-frequency noise that is common in industrial environments. The micro-hole sound absorption structure processed by professional punching equipment can precisely target medium and high-frequency noise waves, forming a multi-level sound dissipation system combining surface micro-hole guidance and internal porous absorption. This structural optimization significantly improves the sound insulation coefficient of the panel, effectively reducing the noise transmission in industrial workshops, mechanical operation areas and public spaces. At the same time, the reasonable punching design will not reduce the structural strength and wind resistance of the panel, and the finished panel can still maintain excellent compressive resistance, bending resistance and structural stability, meeting the long-term use requirements of building enclosure structures.
The equipment also has outstanding adaptability and flexibility in production and processing, capable of meeting the diversified production needs of the market. It can adapt to the processing and production of metal sheets of different thicknesses and different base materials, and can freely adjust the punching aperture, hole spacing and punching area according to the customized performance requirements of customers. For scenarios requiring higher sound insulation performance, the equipment can complete high-density full-area punching; for conventional building thermal insulation and sound insulation projects, it can adopt sparse punching or partial punching modes to balance product performance and production cost. In terms of panel specification molding, the adjustable molding thickness range of the equipment covers most conventional building sandwich panel specifications, and the fixed-length cutting module can accurately cut continuous molded plates into custom sizes, realizing flexible production of diversified specifications and customized products.
From the perspective of production efficiency and energy consumption control, the punching and silencing sandwich panel production line has obvious advantages over traditional segmented production equipment. The integrated continuous production mode eliminates the intermediate handling and waiting links between separate processes of punching, compounding and molding, greatly shortening the production cycle of a single panel and significantly improving the overall production efficiency. The optimized mechanical transmission structure reduces mechanical friction loss during operation, and the intelligent frequency conversion power system can automatically adjust power output according to production load, effectively reducing invalid energy consumption in the production process. In addition, the precise punching and compounding processing technology reduces the scrap rate of raw materials, avoids material waste caused by processing errors, and further improves the economic benefits of production while realizing green and efficient manufacturing.
The finished panels produced by this professional sandwich panel production equipment have extremely wide application scenarios, covering industrial construction, public infrastructure, civil building renovation and other fields. In industrial production plants, these panels are widely used in the enclosure of mechanical workshops, equipment isolation zones and factory noise reduction partitions, which can effectively reduce the noise pollution generated by mechanical operation and improve the working environment of the factory. In public buildings such as exhibition halls, gymnasiums and station waiting halls, the multi-functional panels can realize building thermal insulation, temperature regulation and indoor noise reduction, improving indoor comfort and space utilization. In addition, they are also suitable for special acoustic environments such as sound insulation rooms, recording spaces and equipment silent rooms, providing reliable structural and acoustic guarantee for special functional spaces.
In terms of equipment durability and maintenance convenience, the whole machine adopts high-strength mechanical structure and wear-resistant structural parts, which can adapt to long-term continuous industrial operation and resist mechanical fatigue and wear caused by high-frequency punching and cyclic pressing. The modular structural design facilitates daily inspection and maintenance work, and each functional module is relatively independent, which can realize targeted maintenance and replacement of local parts without affecting the overall operation of the production line. The stable mechanical matching and intelligent monitoring system greatly reduce the failure rate of the equipment in the production process, extend the service life of the whole machine, and reduce the later operation and maintenance cost for production enterprises.
With the continuous development of the building material industry towards high functionality, energy saving and environmental protection, the market demand for multi-functional composite building panels is constantly upgrading, which also promotes the continuous technological iteration of punching and silencing sandwich panel machinery. Modern optimized equipment not only retains the core advantages of precision punching and continuous composite molding, but also further improves the intelligence level of production, realizing more accurate parameter control, more stable operation status and more efficient production output. While ensuring the excellent sound insulation and thermal insulation performance of finished products, the equipment also takes into account the uniformity and aesthetics of panel surface processing, making the produced panels not only superior in functional performance, but also neat and smooth in appearance, which can meet the dual needs of building structure performance and architectural appearance design.
In summary, the punching and silencing sandwich panel machine is a high-value professional production equipment tailored for multi-functional sound-insulating and heat-preserving sandwich panels. Through the integrated innovation of precision punching technology and continuous composite molding technology, it solves the performance defects of traditional sandwich panels in acoustic attenuation, realizes the integrated molding of high-performance building panels, and has the comprehensive advantages of high production efficiency, strong product adaptability, stable operation and low operating cost. It plays an important supporting role in promoting the upgrading of lightweight building materials, improving the functional level of modern buildings, and realizing energy-saving and environmentally friendly construction. As the construction industry continues to raise the standards of building comfort, environmental protection and functional diversification, this type of professional panel production equipment will have broader market application prospects and become an important core equipment in the field of high-end functional building material production.
