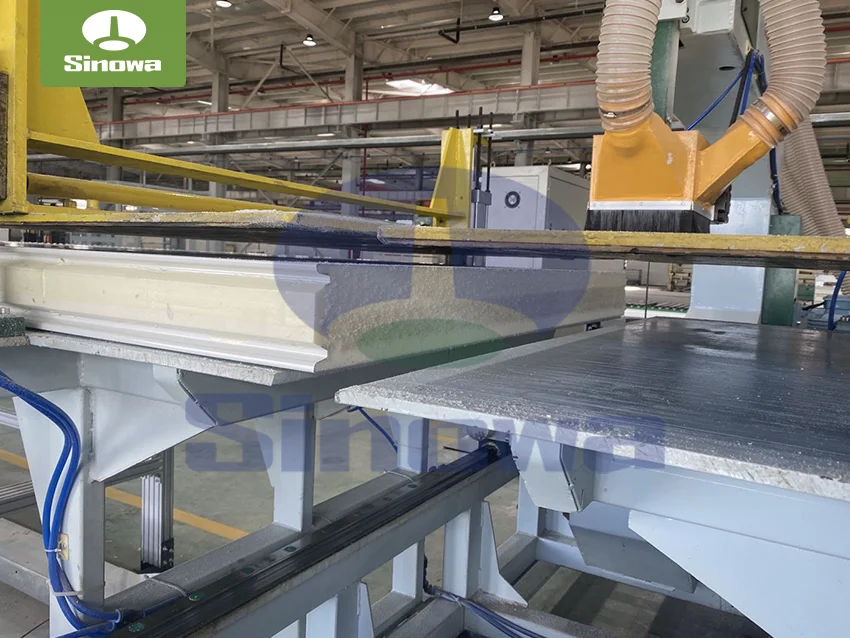

PU Sandwich Panel Line With Edge Trimming Machine

In the realm of modern construction and industrial manufacturing, the demand for high-performance, lightweight, and durable materials has driven continuous innovation in production equipment. Among these, PU (Polyurethane) sandwich panels have emerged as a versatile solution, widely used in walls, roofs, cold storage facilities, and clean rooms. The production of these panels relies heavily on advanced manufacturing lines, and the integration of edge trimming machines has become a pivotal factor in enhancing product quality, production efficiency, and overall competitiveness.

sandwich panel line

PU sandwich panels consist of two outer layers (typically metal sheets such as galvanized steel or aluminum) and a core layer of polyurethane foam. The unique structure combines the strength and rigidity of the outer layers with the excellent thermal insulation, sound absorption, and waterproof properties of the PU core, making the panels suitable for a wide range of environments. However, the production of high-quality PU sandwich panels requires precise control over every process, from material feeding and foam mixing to lamination and cutting. The edge trimming process, in particular, plays a critical role in ensuring the dimensional accuracy and aesthetic appearance of the final products, as uneven or rough edges can affect the installation efficiency and structural integrity of the panels.

Overview of PU Sandwich Panel Line With Edge Trimming Machine

A PU sandwich panel line with an edge trimming machine is a integrated production system designed to automate the entire manufacturing process of PU sandwich panels, from raw material processing to the final trimming of finished products. Unlike traditional production lines that require separate manual or semi-automatic trimming operations, this integrated system combines lamination, foaming, curing, and edge trimming into a continuous workflow, significantly reducing production time and labor costs. The core components of the line include material unwinding devices, foam mixing and pouring systems, lamination rollers, curing ovens, edge trimming machines, and cutting devices. Each component works in coordination to ensure the stability and consistency of the production process.

The edge trimming machine, as a key part of the system, is typically installed after the curing oven and before the final cutting device. Its main function is to remove the excess material on both sides of the continuous panel web, ensuring that the width of the panel meets the preset specifications. Modern edge trimming machines are equipped with high-precision cutting tools and adjustable guiding mechanisms, which can adapt to different panel thicknesses and widths. Some advanced models also feature automatic adjustment functions, which can real-time adjust the trimming position according to the feedback from sensors, further improving the accuracy and stability of the trimming process.

Core Components and Working Principles

Key Components of the Production Line

The PU sandwich panel line with edge trimming machine is composed of several interconnected modules, each with a specific function. The material unwinding module is responsible for feeding the outer skin materials (metal sheets) into the production line. This module is equipped with tension control devices to ensure that the metal sheets are fed smoothly without wrinkles or deviations. The foam mixing and pouring module is the core of the line, where polyol and isocyanate, the main raw materials of PU foam, are mixed in a precise ratio and poured onto the lower metal sheet. The mixing process requires strict control over temperature, pressure, and mixing speed to ensure the uniformity and quality of the foam.

The lamination module consists of a set of pressure rollers that press the upper and lower metal sheets together with the poured foam core, forming a sandwich structure. The pressure and speed of the rollers are adjustable to adapt to different panel thicknesses and material types. The curing oven is used to accelerate the foaming and curing process of the PU core. The temperature and humidity inside the oven are precisely controlled to ensure that the foam cures completely, achieving the required mechanical properties and thermal insulation performance. After curing, the continuous panel web enters the edge trimming module, where the edge trimming machine removes the excess material on both sides. Finally, the cutting module cuts the continuous panel into individual panels of the required length.

Working Principle of the Edge Trimming Machine

The edge trimming machine operates based on the principle of high-speed rotary cutting. When the continuous panel web passes through the trimming machine, the guiding devices first position the panel to ensure that it moves along a straight line. The cutting tools, which are usually circular saw blades or planer blades, are installed on both sides of the panel. The blades rotate at high speed and contact the edges of the panel, cutting off the excess material. The speed of the blades is synchronized with the conveying speed of the panel to ensure a smooth and clean cutting surface.

Advanced edge trimming machines are equipped with sensor systems that can detect the edge position of the panel in real time. If the panel deviates during the conveying process, the sensor will send a signal to the control system, which will then adjust the position of the cutting tools or the guiding devices to correct the deviation. This automatic adjustment function greatly improves the accuracy of the trimming process and reduces the rejection rate of the products. In addition, some trimming machines are also equipped with dust collection devices to collect the cutting debris, ensuring a clean production environment and reducing environmental pollution.

Core Advantages of PU Sandwich Panel Line With Edge Trimming Machine

Improved Product Quality

The integration of edge trimming machines into the PU sandwich panel line significantly improves the dimensional accuracy of the products. The high-precision cutting tools and automatic adjustment functions ensure that the width of the panels is consistent with the preset specifications, and the edges are smooth and flat. This not only enhances the aesthetic appearance of the panels but also improves the installation efficiency. During the installation process, flat and accurate edges allow for tight fitting between panels, reducing gaps and improving the thermal insulation and waterproof performance of the building envelope. In addition, the smooth edges also reduce the risk of injury during installation, improving the safety of the construction process.

Enhanced Production Efficiency

Traditional PU sandwich panel production lines require separate trimming operations, which are often manual or semi-automatic. These operations are time-consuming and labor-intensive, and the efficiency is low. The integrated production line with edge trimming machine realizes the continuous and automated production of panels, eliminating the need for intermediate handling and separate trimming processes. The production speed of the line can reach up to several meters per minute, which is much higher than that of traditional lines. At the same time, the automatic adjustment function of the edge trimming machine reduces the need for manual intervention, further improving the production efficiency and reducing the labor cost.

Reduced Material Waste

The precise cutting of the edge trimming machine minimizes the amount of excess material removed during the trimming process. Compared with manual trimming, which often results in excessive cutting and material waste, the automatic trimming machine can accurately control the cutting depth and width, ensuring that only the necessary excess material is removed. This not only reduces the consumption of raw materials but also reduces the cost of waste disposal. In addition, the dust collection device of the trimming machine collects the cutting debris, which can be recycled in some cases, further reducing material waste.

Improved Operational Safety

Manual trimming operations involve direct contact between workers and cutting tools, which poses a high risk of injury. The edge trimming machine in the integrated production line is fully automated, and workers only need to monitor the operation of the machine through the control panel, without direct contact with the cutting tools. This greatly reduces the risk of work-related injuries. In addition, the production line is equipped with various safety protection devices, such as emergency stop buttons, safety gratings, and protective covers, which further ensure the safety of the operation process.

Application Scenarios

PU sandwich panels produced by the line with edge trimming machine are widely used in various fields due to their excellent performance. In the construction industry, they are used for the walls and roofs of industrial workshops, warehouses, commercial buildings, and residential buildings. The thermal insulation and sound absorption properties of the panels help to reduce energy consumption and improve the indoor comfort. In cold storage facilities, such as refrigerated warehouses and freezers, the PU core has excellent low-temperature resistance and thermal insulation performance, which can effectively maintain the internal temperature and reduce energy consumption.

In the field of clean rooms, such as pharmaceutical factories, electronic factories, and food processing plants, the PU sandwich panels have a smooth surface and are easy to clean, which meets the high hygiene requirements of these environments. In addition, the panels are also used in the construction of mobile homes, container houses, and prefabricated buildings, due to their lightweight and easy installation characteristics. The precise edge trimming ensures that the panels can be quickly assembled, shortening the construction period.

Technical Innovations and Future Trends

With the continuous development of manufacturing technology, the PU sandwich panel line with edge trimming machine is also undergoing constant innovations. One of the main trends is the intelligence of the production line. Modern production lines are equipped with advanced control systems, such as PLC (Programmable Logic Controller) and HMI (Human-Machine Interface), which allow for real-time monitoring and control of the production process. The control system can collect data from various sensors, such as temperature, pressure, and speed sensors, and analyze the data to optimize the production parameters. Some advanced lines also feature remote monitoring and fault diagnosis functions, which enable operators to monitor the operation of the line from a remote location and quickly diagnose and solve faults.

Another trend is the diversification of the production line. With the increasing demand for customized PU sandwich panels, manufacturers are developing production lines that can produce panels of different thicknesses, widths, and surface textures. The edge trimming machine is also being upgraded to adapt to the diversification of products. For example, some trimming machines are equipped with interchangeable cutting tools, which can be quickly replaced according to the requirements of different products. In addition, the production line is also being integrated with other processes, such as surface coating and printing, to provide more value-added services.

Environmental protection is also an important direction for the development of the production line. The raw materials used in PU foam production, such as isocyanate, are potentially harmful to the environment. Therefore, manufacturers are developing more environmentally friendly production processes, such as using water-based PU foam or recycled materials. The edge trimming machine is also being improved to reduce noise and dust emissions. For example, the use of low-noise motors and high-efficiency dust collection devices can effectively reduce the impact of the production process on the environment.

In addition, the lightweight and compact design of the production line is also a future trend. With the increasing cost of factory space, manufacturers are developing more compact production lines that occupy less space. The edge trimming machine is also being designed to be more lightweight and easy to install, reducing the overall weight and size of the production line.

Conclusion

The PU sandwich panel line with edge trimming machine is an essential equipment in the modern manufacturing of PU sandwich panels. It integrates multiple processes into a continuous and automated workflow, significantly improving product quality, production efficiency, and operational safety. The core advantages of the line, such as improved dimensional accuracy, reduced material waste, and enhanced production efficiency, make it an ideal choice for manufacturers in various fields. With the continuous development of intelligence, diversification, and environmental protection technologies, the PU sandwich panel line with edge trimming machine will continue to evolve, providing more efficient and high-quality solutions for the construction and industrial manufacturing industries.

As the demand for high-performance and customized PU sandwich panels continues to grow, the importance of the integrated production line with edge trimming machine will become more prominent. Manufacturers should pay close attention to the latest technical innovations and trends, and continuously upgrade their production equipment to improve their competitiveness. At the same time, the industry should also strengthen the research and development of environmentally friendly technologies, promoting the sustainable development of the PU sandwich panel manufacturing industry.
