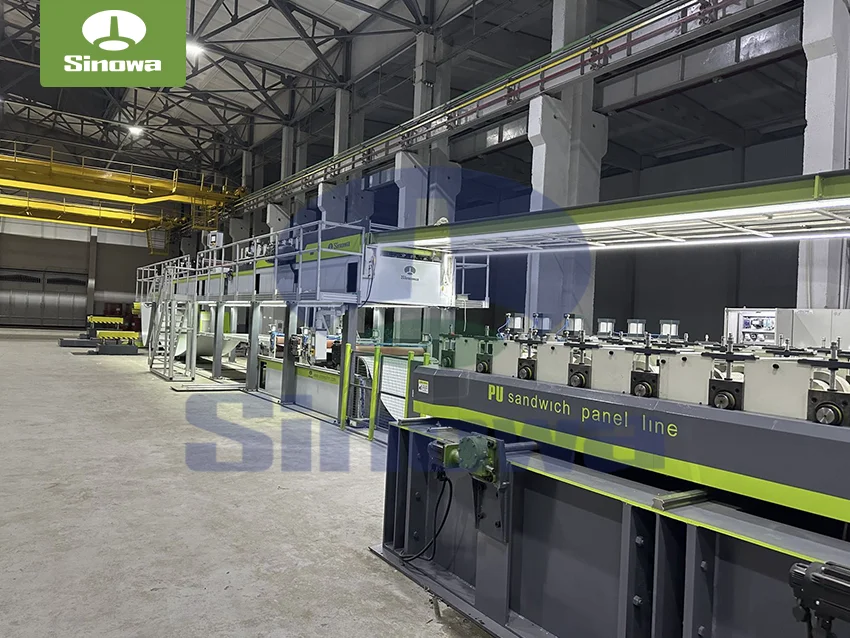

To understand the core competitiveness of Chinese PIR sandwich panel line suppliers, it is necessary to first clarify the complete operational logic of a standard continuous PIR sandwich panel production line and the core technical difficulties that determine finished panel quality. A complete continuous production line covers uninterrupted working procedures including coil unwinding, surface material pretreatment, roll forming, high-pressure foaming injection, constant-temperature composite lamination, segmented curing, synchronous flying cutting, automatic turnover and intelligent stacking, with all procedures interconnected through servo conveying systems to realize unmanned continuous production from raw material input to finished panel output. Unlike ordinary PU sandwich panel production line, PIR production equipment faces stricter technical requirements in raw material proportioning, foaming reaction temperature control, constant pressure composite forming and segmented curing links, because the trimerization reaction of PIR foam materials is extremely sensitive to external temperature, pressure and mixing accuracy. Tiny fluctuations in production parameters will directly lead to uneven internal foam cell structures, insufficient bonding strength between metal surface plates and foam cores, residual internal stress inside panels, and subsequent warping or delamination problems during later use. Chinese equipment suppliers have accumulated massive practical production data through long-term cooperation with domestic panel manufacturers and overseas end customers, and have optimized every core link of the production line in a targeted manner to adapt to the unique reaction characteristics of PIR raw materials, solving common pain points of traditional production equipment in global markets.
The front-end unwinding and surface pretreatment module is the primary guarantee for stable follow-up production, and Chinese suppliers have carried out targeted structural optimization for this basic unit. Most mainstream production lines are equipped with dual-station unwinding structures to realize non-stop coil replacement during continuous production, effectively avoiding production shutdown losses caused by raw material coil switching and improving overall operational continuity. Equipped with closed-loop tension servo control systems, the equipment can automatically adjust conveying tension in real time according to the running speed of the whole line and material thickness changes, preventing metal surface plates from generating wrinkles, stretching deformation or position deviation during high-speed conveying. In the surface pretreatment section, integrated brushing, dust removal and hot air preheating devices are configured as standard. The cleaning unit thoroughly removes surface dust, oil stains and oxide layers on metal plates, eliminating invisible barriers that affect bonding tightness between surface materials and foam cores. The independent constant-temperature preheating module raises the surface material temperature to the optimal reaction range before foaming material injection, matching the exothermic reaction characteristics of PIR foaming raw materials, avoiding cold material-induced incomplete foaming and weak interfacial bonding. This refined front-end processing design, which has been iterated for multiple generations by Chinese manufacturers, effectively improves the overall yield of finished panels and reduces the defective rate in actual mass production, a detail optimization advantage that distinguishes high-quality Chinese equipment from low-cost simplified production lines from other regions.
The high-pressure foaming metering and mixing system is the core component determining the thermal insulation, fire resistance and structural stability of PIR sandwich panels, and it is also the key technical breakthrough point of Chinese equipment suppliers in recent years. The production of PIR foam requires a higher proportion of isocyanate raw materials than ordinary PU materials, and demands ultra-high precision in raw material flow matching and mixing uniformity. Chinese suppliers adopt self-developed multi-group high-precision metering pump groups with real-time flow feedback functions, which can control the proportion deviation of two-component foaming raw materials within an extremely narrow range throughout long-hour continuous operation. Different from fixed parameter metering systems adopted by early foreign equipment, Chinese sandwich panel line support one-click parameter switching for different PIR formula ratios, meeting the production needs of panels with different fire resistance grades and foam densities without replacing mechanical parts or adjusting hardware structures. The high-pressure impingement mixing head adopts optimized internal runner design, which realizes full instantaneous mixing of raw materials under stable high pressure, avoiding local incomplete reaction, coarse foam pores or partial hollow structures inside panel cores. Meanwhile, the equipment is matched with an independent raw material constant-temperature storage and circulation system to stabilize the temperature of foaming raw materials before entering the mixing head, eliminating the influence of ambient temperature changes in different seasons and different regional production workshops on foaming effects. This set of localized optimized foaming systems perfectly adapts to variable production environments in global markets, whether in high-temperature and humid tropical areas or low-temperature and dry temperate zones, the production line can maintain consistent and stable foaming quality all year round.
The double-belt constant-pressure composite and segmented curing system is another core advantage of Chinese PIR sandwich panel machine. After foaming materials are evenly injected between upper and lower surface plates, the composite process needs stable pressure and graded temperature environments to complete foam expansion, full curing and tight interfacial bonding. Chinese suppliers adopt thickened high-strength steel belt structures for upper and lower circulating double belts, with overall pressure evenly covering the entire width of panels, ensuring consistent panel thickness without local thickness deviation. The internal heating zone of the double belt is divided into independent temperature control areas according to production line speed and panel thickness, realizing staged temperature rise, constant-temperature curing and slow cooling processes. This segmented temperature control design matches the slow curing characteristics of PIR foam materials, fully releases internal stress generated during foam exothermic reaction, and fundamentally reduces finished panel warping, bending and residual stress problems that often occur in inferior production lines. In addition, the running speed of the double-belt system realizes synchronous linkage with the front-end foaming injection system through the central intelligent control system. When the production line speed is adjusted according to customer output requirements, the foaming injection volume, heating temperature and composite pressure will automatically match synchronously without manual repeated debugging, greatly lowering the technical operation threshold for production line workers.
Back-end synchronous flying cutting, automatic turnover and intelligent stacking systems further improve the overall automation level and production efficiency of Chinese equipment. The flying saw cutting unit adopts full servo synchronous tracking technology, which keeps the cutting tool running at the same linear speed as the continuously moving panel during cutting, ensuring smooth cutting sections without burrs, fractures or dimensional errors. Operators only need to preset required panel length parameters on the human-computer interaction terminal, and the system can complete automatic fixed-length cutting throughout the whole process. The follow-up turnover device can automatically flip single-sided profiled roof panels to facilitate seamless stacking of finished products, while the automatic stacking robot realizes orderly arrangement, counting and palletizing of finished panels. The entire back-end process requires almost no manual intervention, helping panel manufacturers reduce long-term labor input and improve the neatness and transportation convenience of finished product warehouses. All electrical control components and transmission structures of the back-end equipment are matched with durable and easy-to-maintain universal parts, which facilitates later daily maintenance and quick replacement of vulnerable parts for overseas customers, solving the after-sales maintenance difficulties caused by exclusive customized parts used by some European and American original equipment manufacturers.
Beyond single equipment performance advantages, Chinese PIR sandwich panel making machine suppliers have unique industrial chain supporting strengths that are difficult to replicate by manufacturers from other countries. China owns a complete full-chain supporting system covering mechanical steel processing, electrical automation components, hydraulic transmission parts, foaming system accessories and intelligent control modules. All core mechanical structures, electrical components and transmission parts of the production line can be supplied by stable domestic supporting manufacturers nearby, which shortens the equipment production cycle, ensures stable spare parts supply, and avoids delayed delivery and insufficient spare parts supply caused by cross-border component procurement. Meanwhile, relying on large-scale centralized manufacturing advantages, Chinese suppliers can realize modular production of production line units. Each functional module of the equipment is independently manufactured, debugged and tested in the factory in advance, and only needs integral assembly and simple joint debugging after arriving at the customer's production site. This modular production mode greatly shortens on-site installation and commissioning cycles, enabling customers to officially put production lines into operation and generate benefits in a shorter time. For overseas buyers, shortened delivery cycles and fast on-site commissioning capabilities are critical advantages especially for projects with tight construction and production schedules.
In terms of intelligent manufacturing upgrading, Chinese PIR sandwich panel manufacturing line suppliers have kept pace with global industrial intelligent development trends and continuously upgraded traditional mechanical equipment with digital monitoring and remote diagnosis functions. The centralized PLC intelligent control system serves as the overall operation brain of the production line, collecting real-time operating data including operating speed, raw material flow, internal heating temperature, composite pressure and cutting parameters of all modules throughout the line. All operational data is displayed visually on the touch screen terminal, allowing on-site operators to intuitively grasp the overall operating status of the equipment and quickly locate abnormal problems. Most upgraded production lines support remote online diagnosis function. When customers encounter equipment operation failures or parameter debugging confusion in daily production, Chinese technical teams can remotely access the equipment control system to check operating data, judge fault causes and guide troubleshooting without sending engineers abroad in the first place. This remote technical support mode greatly reduces emergency maintenance time and overseas after-sales service costs, providing more efficient and timely technical guarantee for global end users. In addition, the control system supports storage of multiple sets of production formulas, and customers can switch production specifications of panels with different thicknesses, densities and surface plate types with one click, meeting the flexible multi-specification production demands of modern panel factories.
Customized solution capability is another core competitive highlight of Chinese suppliers in the global market. Standardized universal production lines cannot fully meet differentiated production demands in different regional markets. For example, construction projects in high-altitude areas require production lines to adapt to low atmospheric pressure environments for foaming reaction adjustment; cold storage dedicated PIR panels need production lines to support ultra-thick plate production parameters; building exterior wall panels in wind-prone areas need equipment to produce panels with higher overall structural compactness. Chinese suppliers do not adopt a single standardized equipment sales mode. Instead, they conduct in-depth communication with customers in the early stage of cooperation, sort out local building code requirements, mainstream panel specifications, workshop site conditions, daily output demands and power supply parameters of customers, and then carry out targeted customized adjustment for production line length, module configuration, parameter range and functional units. Whether customers need small-capacity compact production lines suitable for small and medium-sized factories or large-scale high-speed full-automatic production lines for large industrial parks, Chinese manufacturers can provide matched one-stop overall solutions covering equipment design, manufacturing, installation debugging and operational technical training. This flexible customized service model makes Chinese equipment widely applicable to diversified market demands across different continents.
In terms of global after-sales service layout, Chinese PIR sandwich panel production machine suppliers have gradually improved their overseas service networks after years of market cultivation, breaking the after-sales service bottlenecks that troubled overseas customers in the early stage of industry development. Professional overseas engineering teams provide door-to-door on-site installation, overall commissioning and operator systematic training services. The training content covers daily equipment operation specifications, routine daily maintenance points, common fault manual troubleshooting, formula parameter adjustment methods and safe operation standards, helping customer teams master independent operation and maintenance capabilities in a short period. Meanwhile, suppliers have established overseas spare parts warehouses in key regional markets including Southeast Asia, the Middle East and Eastern Europe, realizing rapid supply of conventional vulnerable parts without long-distance cross-border transportation. Compared with equipment suppliers from other regions that only provide remote after-sales consultation, localized engineer teams and regional spare parts warehouses greatly improve the stability of long-term operation of customer production lines and reduce potential production stop losses caused by spare parts shortage.
In the context of global dual-carbon development goals and continuous upgrading of building energy conservation requirements, the market prospect of PIR sandwich panels will continue to expand, which further drives the iterative upgrading of supporting production line equipment. Chinese PIR sandwich panel manufacturing machine suppliers are also continuing to carry out technological research and development in energy-saving optimization, environmental protection upgrading and intelligent unmanned production. New-generation production lines adopt optimized motor transmission structures and waste heat recovery systems in curing modules to reduce overall equipment energy consumption during long-hour operation, fitting the global energy-saving and emission reduction development trend. Meanwhile, supporting dust collection and waste edge recycling devices are upgraded to realize centralized collection and reutilization of cutting waste materials generated in the production process, reducing production waste and improving the environmental-friendly performance of the entire production process. In the future, Chinese manufacturers will further integrate unmanned workshop management technology to realize full-process automatic production, automatic finished product warehouse entry and production data automatic statistics, helping global panel manufacturers realize digital and intelligent factory upgrading.
From the perspective of global market competition pattern, Chinese PIR sandwich panel machinery suppliers have formed comprehensive advantages covering research and development, manufacturing, customized solutions and full-life-cycle after-sales services. They balance stable equipment performance, reasonable overall operation cost, flexible customized capability and efficient global after-sales support perfectly. Early global PIR sandwich panel equipment market was dominated by a small number of European manufacturers, but such equipment has high overall manufacturing cost, single function, long delivery cycle and high threshold for later maintenance. With continuous technological breakthroughs and industrial chain improvement, Chinese equipment has achieved equivalent performance in core production indicators while possessing better cost performance and more flexible service modes. At present, Chinese-made PIR sandwich panel production lines have been exported to more than 60 countries and regions worldwide, covering mainstream construction material markets all over the world.
In conclusion, Chinese PIR sandwich panel line suppliers rely on complete industrial chain foundation, targeted technical optimization for PIR material production characteristics, powerful customized solution capability, mature intelligent control technology and improved global after-sales service system, establishing irreplaceable core competitiveness in the global insulation panel equipment manufacturing industry. As global building fire safety and energy-saving standards become stricter, downstream market demand for high-performance PIR sandwich panels will keep growing steadily. Chinese equipment manufacturers will continue to focus on technological innovation, optimize equipment production performance and service systems continuously, and provide more reliable, efficient and intelligent production equipment solutions for global insulated building material manufacturers. In the future global green construction market, Chinese PIR sandwich panel production machinery suppliers will further deepen global industrial cooperation and promote the high-quality development of the entire insulated composite panel manufacturing industry together with global partners.
