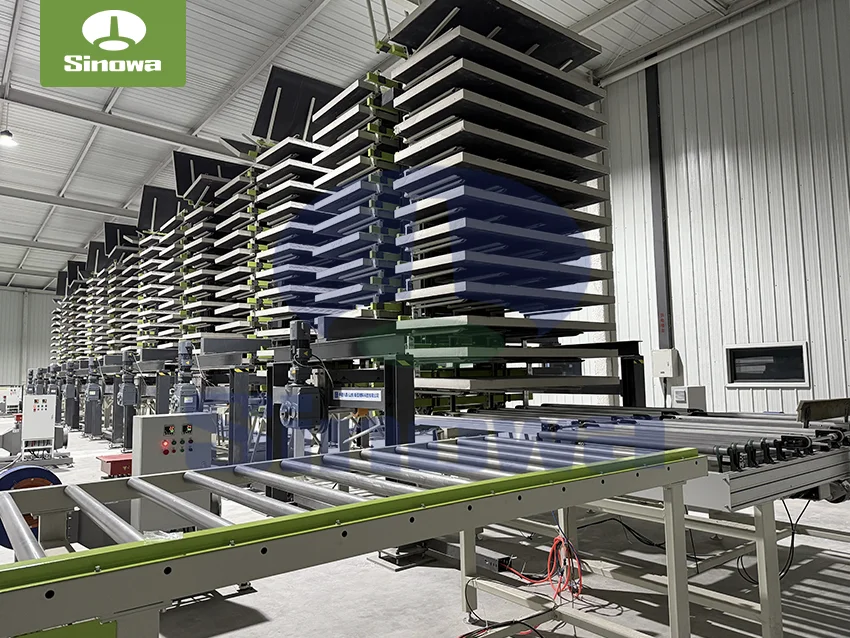

sandwich panel machine
A complete sandwich panel machine is composed of a series of seamlessly interconnected functional modules, each undertaking independent yet collaborative tasks to form a continuous and automated production workflow. The overall structural design focuses on operational stability, production flexibility, and long-term service performance, with every component optimized to adapt to different raw material combinations and panel specification requirements. The front-end module of the production system centers on the automatic material feeding and unwinding unit, which is responsible for stably releasing coiled surface materials such as metal sheets and composite decorative plates. Equipped with precise tension regulation mechanisms, this unit maintains constant material tightness and conveying speed throughout the operation process, effectively preventing material deviation, wrinkling, or uneven stretching that may affect the final panel quality. Following the unwinding process, the leveling and trimming module flattens the raw surface materials and trims irregular edges, ensuring the flatness and dimensional uniformity of materials entering the subsequent molding procedures, which lays a solid foundation for precise composite molding.
The profiling and forming module serves as a key functional section that shapes the structural characteristics of sandwich wall panels. This module adopts multi-group precision roller sets arranged in progressive sequences, which gradually bend and shape flat surface materials into specific profile structures through continuous mechanical rolling. Different profile designs, including trapezoidal, corrugated, and flat edge structures, can be achieved by adjusting the combination and spacing of the roller sets, enabling the production of wall panels with diverse structural styles to meet different architectural decoration and structural load-bearing requirements. The entire forming process is completed through non-stop continuous rolling, avoiding the structural inconsistencies caused by intermittent processing, and ensuring the overall rigidity and surface flatness of each panel. Meanwhile, the adjustable gap design of the roller groups allows the equipment to adapt to surface materials of different thicknesses, greatly expanding the production compatibility of the sandwich panel line.
The gluing and core material laying system is the core functional unit that determines the bonding strength and overall performance of sandwich wall panels. This high-precision functional module features an evenly distributed glue spraying structure that applies a uniform layer of environmentally friendly adhesive on the inner surface of the shaped surface materials. The glue application volume and spraying range can be dynamically adjusted according to the type of core material and production speed, ensuring sufficient and consistent bonding coverage without excessive glue accumulation or missing coating areas. After the glue spraying process, lightweight insulating core materials, including foamed polymer materials and inorganic thermal insulation fillers, are automatically and evenly laid between the upper and lower surface layers. The equipment adopts quantitative feeding and flattening devices to ensure the uniform density and consistent thickness of the core material layer, avoiding hollow areas or uneven thickness that would compromise the thermal insulation and structural stability of the finished panels.
The pressing and curing module is critical for integrating layered materials into an integral solid panel structure, relying on a high-stability double-belt pressing and constant-temperature curing system. The upper and lower circulating belts are made of wear-resistant and heat-conductive composite materials, which can apply balanced and uniform pressure to the composite materials during continuous operation. The adjustable gap between the double belts supports the production of wall panels with varying thicknesses, covering thin interior partition panels and thick exterior thermal insulation wall panels to adapt to diverse construction scenarios. While maintaining stable mechanical pressure, the system provides controlled constant-temperature heating conditions to accelerate the curing reaction of the adhesive, promoting tight bonding between the surface layers and the core material. This synchronous pressure and temperature control mechanism eliminates loose bonding, delamination, and structural deformation, significantly enhancing the overall structural integrity, compression resistance, and durability of the finished sandwich wall panels.
Following the curing and compounding process, the automatic cutting and finishing module performs fixed-length cutting and edge trimming according to preset dimensional parameters. Driven by high-precision servo control systems, the cutting device achieves smooth and burr-free section processing, with accurate dimensional tolerance control to ensure the interchangeability and assembly accuracy of each panel. The equipment supports flexible adjustment of cutting lengths, enabling customized production of panels of different sizes to meet the personalized design requirements of various construction projects. After cutting, the edge trimming unit polishes and shapes the panel edges, optimizing the assembly structure of the panels and facilitating seamless splicing during on-site construction. The entire cutting and finishing process operates synchronously with the front-end continuous production process, realizing uninterrupted sandwich panel assembly line operation and effectively improving overall production efficiency.
The intelligent control system runs through the entire operation process of the wall sandwich panel making machine, serving as the central command core for coordinating the operation of all functional modules. The system integrates programmable control and real-time data monitoring functions, allowing operators to set production parameters such as panel thickness, length, production speed, and glue application volume through a simple interactive interface. During continuous production, the system automatically synchronizes the operating speed of each module, dynamically adjusts material feeding tension, heating temperature, and pressing pressure according to real-time production conditions, and automatically identifies and corrects minor operational deviations. In case of abnormal conditions such as material jams, parameter deviations, or equipment overload, the system will trigger real-time early warning and automatic protection mechanisms, effectively reducing equipment failure rates and production losses. The highly automated control mode minimizes manual intervention, reduces human error in the production process, and maintains long-term stable and consistent production quality.
The operational advantages of the wall sandwich panel production machine are prominently reflected in production efficiency, product performance stability, and resource utilization. Different from traditional intermittent manual or semi-mechanical production methods, the fully continuous sandwich panel production line operation realizes uninterrupted mass production, greatly improving daily output and shortening the production cycle of building materials. The standardized mechanical processing mode eliminates the quality fluctuations caused by manual operation, ensuring that each batch of finished panels maintains consistent thickness, bonding strength, thermal insulation performance, and structural rigidity. In terms of resource utilization, the precise quantitative control of the glue spraying system and core material feeding device effectively reduces raw material waste, while the optimized mechanical transmission structure reduces energy consumption during equipment operation, achieving efficient and energy-saving production. In addition, the equipment features strong operational flexibility, allowing rapid switching between different panel specifications and core material types, which enables production enterprises to quickly respond to the diverse market demands of the construction industry.
The finished sandwich wall panels produced by this professional equipment possess multiple superior performance characteristics that perfectly match the development needs of modern prefabricated construction. The integrated composite structure formed by mechanical pressing and curing endows the panels with excellent lightweight performance, effectively reducing the self-weight of building envelopes, lowering the load-bearing pressure on building structures, and cutting overall construction costs. At the same time, the porous and low-density characteristics of the core material enable the panels to achieve outstanding thermal insulation and heat preservation effects, reducing building energy consumption for heating and cooling and meeting the green and low-carbon development requirements of modern architecture. Additionally, the integral composite structure provides good sound insulation, fire resistance, and anti-seismic performance, while the precisely processed panel surfaces have excellent flatness and decoration compatibility, eliminating the need for secondary decoration in most application scenarios and greatly simplifying on-site construction procedures.
In practical industrial applications, wall sandwich panel manufacturing machine is widely adapted to various construction scenarios and market demands. They can produce interior partition panels for high-rise buildings, exterior thermal insulation wall panels for industrial plants and public buildings, and special functional wall panels for cold storage, clean rooms, and energy-saving buildings. By adjusting production parameters and matching different core materials, the equipment can produce panels with differentiated performances such as enhanced fire resistance, ultra-low thermal conductivity, and high sound insulation, fully covering the functional needs of different architectural environments. The prefabricated production mode realized by the equipment enables wall panels to be directly assembled on construction sites after leaving the factory, greatly improving construction efficiency, shortening project construction cycles, and reducing the impact of on-site construction on the surrounding environment, which is highly in line with the green construction and industrialized development trends of the modern construction industry.
In terms of equipment operation and maintenance, the sandwich wall panel machine adopts a modular and standardized structural design, which facilitates daily inspection, maintenance, and parts replacement. Each functional module is independently arranged with clear mechanical and circuit layouts, enabling maintenance personnel to quickly locate and solve operational faults. The key moving parts are equipped with wear-resistant and anti-corrosion protective structures, which extend the service life of the equipment and reduce long-term operational maintenance costs. The equipment also has good environmental adaptability, capable of stable operation in different temperature and humidity production environments, and can continuously operate for a long time to meet the high-intensity production needs of large-scale building material factories. With the continuous advancement of mechanical manufacturing and intelligent control technology, modern sandwich wall panel making machines are constantly evolving toward higher automation, smarter monitoring, and more diversified production, further improving production accuracy, operational stability, and product diversification.
Looking at the development trend of the construction industry, the popularization of prefabricated buildings and the continuous improvement of building energy-saving standards will further drive the technological upgrading and market application of sandwich wall panel production equipment. Future equipment optimization will focus on intelligent production upgrading, realizing automatic identification of raw materials, intelligent matching of production parameters, and real-time digital monitoring of product quality, so as to achieve unmanned and refined production. At the same time, with the increasing emphasis on environmental protection in the building material industry, the equipment will be further optimized in terms of energy-saving operation and clean production, adapting to the application of new environmentally friendly core materials and adhesives, and promoting the sustainable development of the building material manufacturing industry. As a core piece of sandwich panel equipment supporting the production of new building wall materials, the sandwich wall panel manufacturing machine will continue to play a vital role in promoting the industrialization, greening, and high-quality development of the global construction industry.
