The overall structural design of the rock wool color steel sandwich panel machine follows the principles of integrated layout and modular combination, with each functional unit closely connected to ensure continuous and stable production operation. The complete production system is mainly composed of raw material unwinding units, roller forming units, adhesive spraying units, core material arrangement and conveying units, constant temperature composite pressing units, fixed-length cutting units, finished product conveying and stacking units, as well as auxiliary dust removal and deviation correction devices. Each functional module operates in a coordinated and synchronous manner through an intelligent control system, realizing uninterrupted automated production and greatly reducing manual intervention in the production process. The whole rock wool sandwich panel production line adopts a long linear layout, which optimizes the material transmission path, avoids material stagnation and loss during processing, and improves the overall continuity and fluency of production.
The raw material unwinding part is the starting link of the entire production process, undertaking the feeding work of upper and lower color steel sheet raw materials. This unit is equipped with a stable unwinding support structure and a tension automatic adjustment device, which can adapt to color steel sheets of different thicknesses and coil diameters. During operation, the device can maintain constant tension output, effectively prevent steel sheet deviation, wrinkling and uneven stretching caused by unstable tension, and lay a good foundation for subsequent roller forming and composite processing. Equipped with a synchronous braking and start-stop adjustment function, the unwinding unit can cooperate with the operating speed of the subsequent production line to realize stepless speed matching, avoiding material accumulation or material shortage during continuous production, and ensuring the synchronization of feeding and processing rhythm.
After the unwinding process, the color steel sheets enter the roller forming unit for continuous cold bending and profiling. This unit adopts multi-group precision roller sets arranged in an orderly gradient, which gradually bends and shapes the flat color steel sheets according to the preset panel profile parameters. The roller sets are made of high-strength wear-resistant materials with precise machining accuracy, which can ensure the flatness and consistent dimensional accuracy of the formed steel sheet surface. The whole forming process is completed at a constant speed without secondary scratching or deformation of the color steel coating. In addition, the roller forming unit is integrated with surface film protection and edge trimming functions, which can protect the anti-corrosion and wear-resistant coating of color steel sheets during processing, and trim the irregular edges of steel sheets to ensure the neatness and uniformity of subsequent composite interfaces.
The adhesive spraying system is a key functional unit that determines the bonding quality of sandwich panels, and its working accuracy directly affects the overall structural stability and service life of finished panels. The system adopts a high-precision automatic spraying structure, which can evenly spray high-performance environmentally friendly polymer adhesive on the inner surfaces of upper and lower color steel sheets. It supports adjustable spraying volume and uniform spraying range, which can match different rock wool core material densities and production speed requirements. The adhesive used has the characteristics of fast curing speed and strong adhesion, which can form a stable bonding layer between steel sheets and rock wool core materials. Meanwhile, the closed spraying design avoids adhesive volatilization loss and floating pollution, and the matched cleaning device can effectively prevent nozzle blockage, ensuring the long-term stable operation of the spraying system and the uniformity of the bonding layer of each panel.
The rock wool core material conveying and arranging unit is specially optimized for the porous and fibrous structural characteristics of rock wool materials. Different from rigid core materials, rock wool has poor ductility and is prone to fiber scattering and loose accumulation during transmission. Therefore, this unit is equipped with a special anti-scattering conveying structure and automatic material arrangement device, which can evenly spread and compact the rock wool core materials according to the set thickness specifications. The supporting dust collection device can timely collect the scattered rock wool fibers generated during material transportation and arrangement, keep the production environment clean, and prevent fibers from adhering to mechanical components or composite interfaces to affect product quality. The unit can adjust the paving thickness and density of rock wool according to production demands, realizing flexible production of panels with different heat preservation and fire protection performance parameters.
The constant temperature high-pressure composite pressing unit is the core processing link of the rock wool sandwich panel line, responsible for realizing the tight composite bonding of color steel sheets and rock wool core materials. This unit adopts a double-belt constant pressure and constant temperature structure, which can form a stable composite pressure and temperature environment in the processing area. The precise pressure control system ensures that the overall stress of the panel is uniform during composite molding, avoiding local delamination, hollowing or excessive compression deformation. The constant temperature heating system maintains a stable curing temperature in the composite area, which can accelerate the curing reaction of the adhesive, shorten the molding cycle, and ensure the firm integration of steel sheets and rock wool core materials. The whole composite process is completed synchronously with continuous transmission, realizing one-time molding of the integral structure of the sandwich panel, and effectively improving the overall structural compactness and bonding firmness of the product.
Equipped with an online thickness detection and deviation correction system, the rock wool sandwich panel machine can realize real-time monitoring and dynamic adjustment of panel thickness during continuous operation. The high-sensitivity detection device feeds back the thickness data of the processed panel in real time to the control system, and the system automatically adjusts the gap and pressure parameters of the composite pressing unit according to the deviation data, ensuring that the thickness error of finished panels is controlled within a tiny range. At the same time, the automatic deviation correction device installed in each transmission link can timely correct the material offset caused by transmission vibration or material tension changes, ensuring the straightness and dimensional uniformity of the entire panel, and avoiding defective products such as skewed edges and uneven thickness.
The fixed-length cutting unit undertakes the final shaping and cutting work of continuous composite panels. Driven by a high-precision servo motor, the cutting tool can realize fixed-length precise cutting according to the preset panel length parameters. The cutting process is fast and stable, with smooth and flat cutting sections without burrs, cracking or core material scattering. The servo control system has high positioning accuracy, which can meet the customized production requirements of panels with different length specifications. In addition, the cutting unit is equipped with a buffer conveying structure, which can ensure that the rockwool sandwich panel making machine does not stop during the cutting process, realizing continuous feeding and intermittent cutting, and effectively improving the overall production efficiency without affecting the continuity of processing.

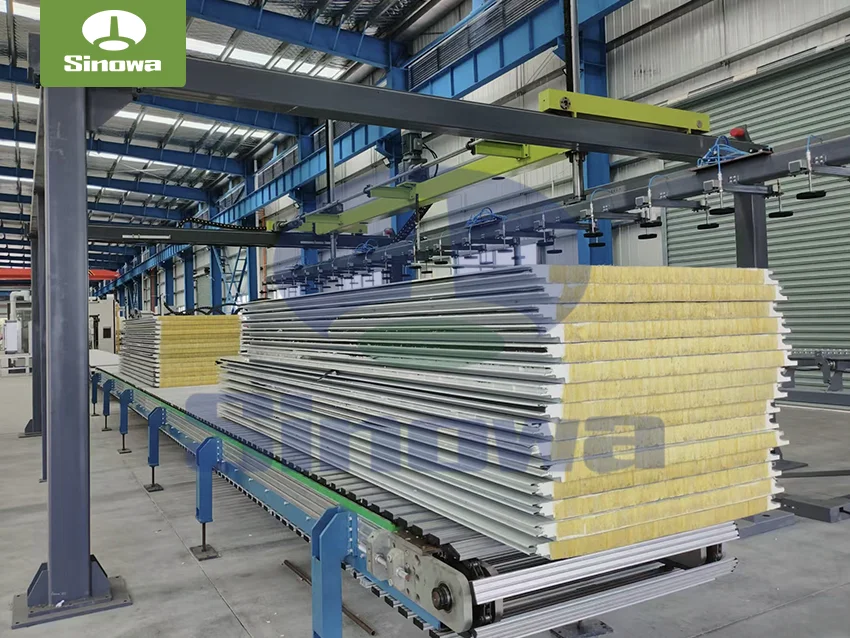

The finished product conveying and automatic stacking unit is the terminal link of the rock wool board production line, responsible for the orderly transportation and automatic stacking of cut finished panels. This unit adopts a stable belt conveying structure and pneumatic suction cup stacking device, which can stably absorb and transfer single panels, and stack finished panels neatly according to the set arrangement rules. The automatic stacking function replaces manual handling and stacking, reduces the risk of panel surface scratching and corner damage caused by manual operation, and improves the neatness and uniformity of finished product storage. The whole process is automated and intelligent, which greatly saves labor costs and improves the overall production automation level.
In terms of control system, the entire rock wool color steel sandwich panel production line adopts an integrated intelligent frequency conversion control technology, which centralizes the operation parameters of each functional unit on the human-machine operation interface. Operators can complete the setting of production speed, panel specifications, spraying parameters, composite temperature and pressure through simple operation, and the system can realize automatic synchronous operation of each link. The built-in fault self-detection function can monitor the operating state of mechanical transmission, hydraulic pressure, temperature and other modules in real time, and automatically alarm and locate faults when abnormal conditions occur, which is convenient for equipment maintenance and troubleshooting. The frequency conversion speed regulation system realizes stepless adjustment of production speed, which can flexibly switch between mass production and small-batch customized production, greatly improving the production flexibility of the equipment.
Compared with traditional semi-automatic processing equipment, this integrated sandwich panel machine has prominent technical and production advantages. Firstly, it achieves full-process automated production from raw material feeding to finished product stacking, which greatly improves production efficiency and realizes large-scale continuous manufacturing. Secondly, the precise parameter control system ensures the consistency of product quality, effectively solving the problems of uneven bonding, unstable size and poor surface flatness in traditional processing. In addition, the equipment is optimized for the structural characteristics of rock wool materials, which can effectively protect the integrity of rock wool fiber structure during processing, maintain the excellent fire resistance, heat insulation and sound insulation performance of rock wool core materials, and ensure that the finished panels give full play to the performance advantages of composite structures.
In terms of production adaptability, the rockwool sandwich panel machinery can meet the production needs of sandwich panels with different specifications and performance levels. By adjusting the operating parameters of each unit, it can adapt to color steel sheets of different thicknesses and rock wool core materials of different densities, and produce building panels suitable for different application scenarios. The optional edge sealing processing structure can form a continuous protective sealing layer on the edge of the panel, which optimizes the edge structure of the panel, enhances the overall structural tightness and waterproof performance, and further expands the application scope of the product. The whole rockwool insulation board production line has strong compatibility and scalability, which can meet the diversified production needs of building material manufacturers and adapt to the constantly updated market demand for lightweight building panels.
The rock wool color steel sandwich panels produced by this equipment have excellent comprehensive performance, relying on the precise composite molding process of the equipment. The panels integrate the high strength and corrosion resistance of color steel sheets and the excellent fire resistance, heat preservation and sound insulation performance of rock wool materials, with stable overall structure, not easy to delaminate and deform, and long service life. These panels are widely used in the construction of industrial workshops, clean rooms, cold storage buildings, public building envelopes and temporary construction facilities, providing high-quality lightweight composite building materials for modern architectural engineering.
From the perspective of production and operation, the rockwool sandwich panel equipment has good energy-saving and environmental protection performance. The optimized transmission and heating structure reduces energy consumption loss during operation, and the closed production design and matched dust removal and purification devices effectively reduce the generation of production waste and fiber floating pollution. The automated production mode reduces manual operation errors and material waste, improves the utilization rate of raw materials, and realizes efficient and environmentally friendly production. The stable mechanical structure and standardized processing technology also reduce the failure rate of equipment operation and the cost of later maintenance and replacement of parts, bringing stable and long-term production benefits for users.
With the continuous development of the modern construction industry towards lightweight, energy-saving and high-efficiency direction, lightweight composite building panels have been more and more widely used in the market, and the market demand for high-precision and automated sandwich panel production machine is also increasing day by day. As professional processing equipment for rock wool color steel sandwich panels, this machine relies on mature and stable processing technology, highly automated production mode and flexible production adaptability, and has become an important supporting equipment for the upgrading and development of the building material processing industry. In the future, with the continuous innovation of mechanical manufacturing technology and building material processing technology, the equipment will be further optimized in intelligent control, production efficiency and product adaptation, and continue to provide reliable technical support for the production and application of high-performance energy-saving building panels.
