Low-noise PU Sandwich Panel Production Line For Urban Factories

The modern urban factory's low-noise polyurethane sandwich panel production line is a highly automated and environmentally friendly composite material production system designed specifically for producing high-quality building sandwich panels in urban environments. This sandwich panel production line solves the noise pollution problem of traditional polyurethane production lines by optimizing the process flow and adopting advanced noise reduction technology, enabling it to meet the environmental protection requirements of urban industrial areas.

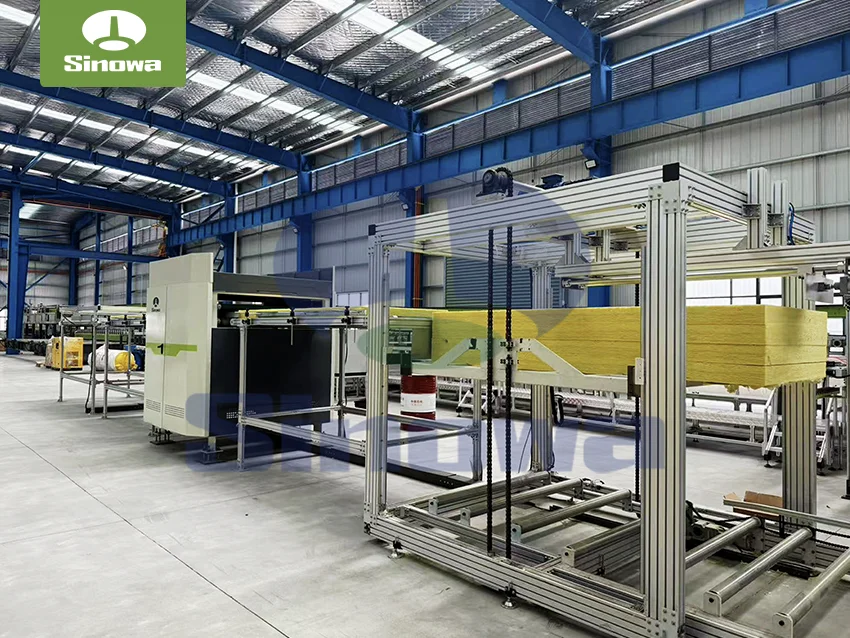

sandwich panel line

The main components of a low-noise pu sandwich panel production line

• Raw material pretreatment system
  Automatic batching unit: adopts precision measuring device, with error controlled within ± 0.5%
  Polyurethane raw material constant temperature storage tank: keep the raw materials at the optimal reaction temperature (20-25 ℃)
  Metal panel pretreatment line: including cleaning, passivation, drying and other processes

• Core production equipment
  Double track continuous foaming machine: equipped with variable frequency speed regulation, noise level below 75 decibels
  High pressure mixing head system: adopting hydraulic servo control, the mixing efficiency is increased by 30%
  Intelligent temperature controlled foam tunnel: temperature control accuracy ± 1 ℃

• Noise reduction design features
  Fully enclosed production cabin: using composite sound insulation materials, the noise reduction effect reaches 25 decibels
  Vibration isolation foundation: effective isolation of equipment vibration conduction
  Low noise fan system: specially designed vortex fan, reducing operating noise by 40%

Technological innovation points

• Silent hydraulic system: using a silent hydraulic pump, the working noise is only 62 decibels


• Intelligent soundproof duct: airflow channel design optimized through acoustic simulation


• Modular soundproof cover: a detachable soundproof component that is easy to maintain


• Night mode: It can automatically switch to ultra quiet operation mode at night

Production process flow

• Panel pretreatment: metal panel cleaning → surface treatment → preheating (60-80 ℃)


• Raw material mixing: High pressure mixing of polyol and isocyanate (pressure 150-200 bar)


• Continuous foaming: foam forming is completed between double tracks (adjustable speed of 3-8m/min)


• Maturation and shaping: Complete the final curing under controlled temperature conditions


• Fixed length cutting: servo controlled flying saw system with an accuracy of ± 1mm


• Finished product stacking: Automatic palletizing robot completes packaging

Application Fields

Silencing sandwich panels are particularly suitable for:

• Urban Renewal Project


• Buildings in quiet areas such as hospitals and schools


• Precision facilities such as data centers


• Cold chain logistics warehouse

Maintenance points for low-noise polyurethane sandwich panel line

• Daily inspection of hydraulic system sealing


• Clean the mixing head components weekly


• Monthly calibration of the measurement system


• Replace the damaged parts of the sound insulation material every quarter

The low-noise pu sandwich panel manufacturing line represents the latest achievement in the transformation of the building materials industry towards green manufacturing, achieving a balance between production efficiency and environmental protection through technological innovation.
