sandwich panel line

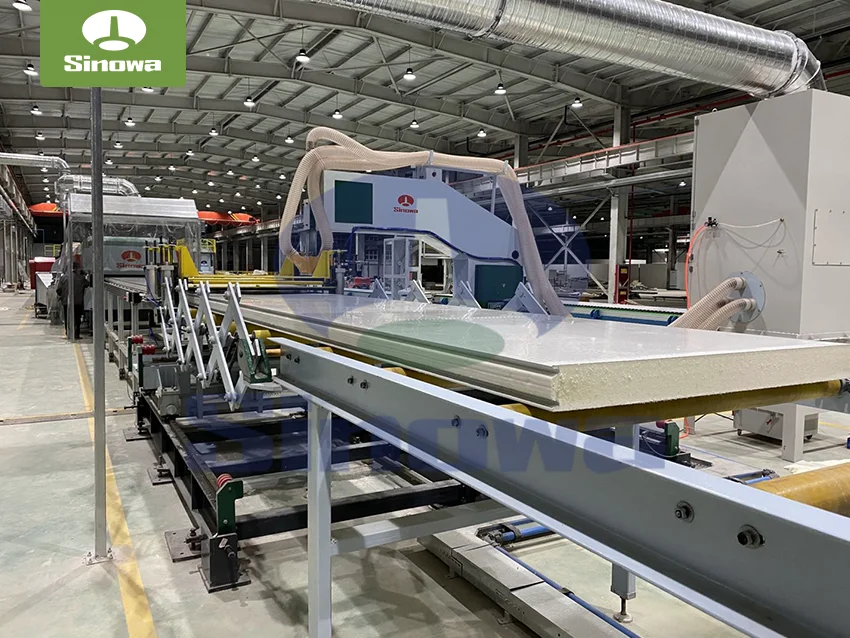

The operational logic of the purification sandwich panel production line follows a continuous and streamlined processing sequence, covering raw material pretreatment, surface material shaping, adhesive coating, core material laying, integrated compounding, constant-temperature hot pressing, fixed-length cutting, edge finishing, and automatic stacking. Every procedural link is closely connected and precisely coordinated, forming a closed-loop production system that supports uninterrupted batch production. The core design concept of the production line lies in balancing structural firmness, surface purification performance, and production efficiency, optimizing every technological detail to adapt to the unique performance requirements of purification panels, such as dust-proof, anti-bacterial, corrosion-resistant, and seamless splicing characteristics.
Raw material pretreatment serves as the foundational and decisive stage of the entire production workflow, directly determining the basic quality of finished purification panels. The sandwich panel line is equipped with professional unwinding and tension regulation modules to handle coiled surface materials, which are the outer protective layers of sandwich panels. The adjustable tension control system ensures that the coiled materials are released evenly and stably during operation, effectively avoiding tensile deformation, wrinkling, and uneven flatness that often occur in traditional manual unwinding processes. Following unwinding, the surface material undergoes rigorous pretreatment procedures, including surface decontamination, oil stain removal, and floating dust cleaning. This step eliminates all impurities and residual attachments on the material surface, creating a clean and dry bonding base for subsequent adhesive coating and compounding processes. Additionally, the pretreatment unit carries out micro surface modification on the inner side of the surface material, enhancing the adhesion between the surface layer and the core material, and laying a solid foundation for long-term structural stability of the composite panel.
After completing surface material pretreatment, the sandwich panel machine enters the precision forming and positioning stage. The integrated pressing and bending mechanism conducts preliminary calibration and shaping on the surface material, correcting subtle flatness deviations and ensuring the overall flatness and dimensional regularity of the panel surface. Different from ordinary panel production lines, the forming module of the purification panel production line adopts precise servo positioning technology, which can accurately control the bending and folding angles of the panel edges. This precise edge forming process ensures excellent sealing performance during the subsequent installation and splicing of purification panels, effectively preventing dust accumulation and air leakage at the splicing gaps, a key performance indicator for clean environment construction. The servo positioning system supports flexible adjustment of forming specifications, enabling the production line to adapt to panels of different thicknesses and width specifications without repeated mold replacement or complex parameter debugging.
Adhesive coating is a core technological link that determines the bonding strength and overall durability of purification sandwich panels. The sandwich panel making machine adopts advanced two-component adhesive spraying and coating technology, completely overcoming the defects of uneven coating, excessive glue accumulation, and missing coating that plague traditional manual gluing methods. The automatic coating system precisely controls the glue output, coating thickness, and coating range through program settings, realizing full coverage and uniform distribution of adhesive on the bonding surface of the surface material. The constant-temperature auxiliary system matched with the coating unit maintains a stable working temperature during the gluing process, ensuring the active performance of the adhesive and optimizing the initial bonding effect between the surface layer and the core material. Uniform and standardized adhesive coating not only improves the overall bonding firmness of the panel structure but also avoids local degumming, bulging, and cracking problems that may occur in long-term use, greatly extending the service life of purification panels in complex indoor environments.
Core material laying and composite assembly follow the adhesive coating process, focusing on accurate positioning and seamless fitting of core materials. Common core materials for purification panels include rock wool, polyurethane foam, and other high-insulation, flame-retardant, and lightweight materials, which undertake the functions of heat preservation, sound insulation, and structural support for the panels. The sandwich panel manufacturing machine is equipped with an automatic core material feeding and arrangement device, which can evenly lay and flatten the core materials according to preset specifications, ensuring consistent thickness and compact internal structure of the core layer. During the composite assembly process, the surface materials on both sides and the middle core material are accurately aligned and initially fitted through the positioning and conveying system. The entire fitting process avoids offset and dislocation of layered structures, ensuring the overall structural symmetry and stress uniformity of the finished panel. The integrated composite design realizes one-time assembly of multi-layer structures, improving production continuity while maintaining the neatness and regularity of the internal panel structure.
Hot pressing forming is the key process to realize solid integration of the sandwich panel structure and stabilize comprehensive performance. The sandwich panel production machine is equipped with a circulating constant-temperature hot pressing system, which adopts synchronous constant-speed operation of upper and lower circulating pressing belts. This structural design enables every section of the continuously produced panel to obtain consistent pressing pressure and pressing time, thoroughly solving the problem of inconsistent bonding strength in different parts of panels produced by intermittent pressing equipment. The internal temperature of the hot pressing unit is precisely controlled within a stable range through an intelligent constant-temperature system, providing optimal temperature conditions for adhesive curing and layered structural integration. Under the dual action of constant temperature and constant pressure, the adhesive undergoes full chemical reaction and curing, enabling tight integration between the surface layer and the core layer without gaps. Meanwhile, the hot pressing process further calibrates the flatness and thickness uniformity of the panel, eliminating subtle deformation generated in the previous processes and ensuring the overall dimensional accuracy of the panel.
Following hot pressing forming, the panel enters the constant-temperature curing stage for deep performance stabilization. The closed thermal insulation curing channel of the sandwich panel manufacturing machine provides a continuous and stable temperature environment for the initially formed panel, promoting thorough curing of the internal adhesive and foam structure. This deep curing process optimizes the internal molecular structure of the panel, further enhancing the structural rigidity, compression resistance, and peeling resistance of the composite layer. Panels processed by standardized curing have more stable physical properties, effectively avoiding structural loosening, deformation, and performance attenuation caused by insufficient curing in later use. The curing time and temperature parameters can be adaptively adjusted according to different core material types and panel thicknesses, ensuring that all types of finished products reach the optimal structural stability state.
The fixed-length cutting and edge finishing module realizes standardized sizing and high-quality surface treatment of finished panels. Driven by a high-precision servo cutting system, the production line can automatically complete fixed-length cutting according to customized size parameters, with extremely high cutting accuracy and smooth incision without burrs or edge collapses. Different from ordinary cutting equipment, the cutting unit of the purification panel production line integrates edge trimming and fine finishing functions, which can uniformly trim the panel edges to ensure straight and neat edges of each panel, facilitating seamless splicing and installation in subsequent engineering construction. In addition, the system is equipped with an automatic waste material recovery function, which can classify and recycle the edge materials generated during cutting and trimming, realizing resource utilization and reducing production waste. The intelligent slitting and trimming process ensures that the appearance quality and dimensional accuracy of finished panels fully meet the strict construction standards of purification engineering.
The final stage of the production process is automatic stacking and finished product sorting. Equipped with a suction cup-type automatic palletizing device, the production line can stably and neatly stack the cut and finished panels according to set specifications. The suction cup grabbing method avoids surface scratches, indentations, and other appearance defects that may be caused by mechanical clamping, effectively protecting the high-precision surface of purification panels. The automatic stacking system operates stably and efficiently, realizing orderly arrangement of finished products, which is convenient for subsequent transfer, storage, and transportation. The entire stacking process is automated without manual assistance, improving production efficiency while maintaining the integrity and uniformity of finished product batches.
The overall structural design and technological configuration of the purification sandwich panel production machine endow it with prominent production advantages and product performance superiority. The highly integrated continuous production mode greatly improves production continuity and batch stability, realizing efficient and stable output of standardized purification panels. The full-process automatic control system minimizes manual operation errors, making the product quality more stable and reliable compared with traditional semi-automatic production modes. In terms of product performance, panels produced by this professional production line have excellent surface flatness, tight internal structure, strong bonding firmness, and good airtightness and corrosion resistance. These characteristics enable the panels to effectively adapt to high-cleanliness, high-sterilization, and high-stability working environments, meeting the strict use requirements of modern purification engineering.
In practical industrial production applications, the purification sandwich panel production machinery shows strong adaptability and flexibility. By adjusting production parameters and matching different core material feeding modules, it can produce multiple types of purification panels with different thermal insulation, flame retardant, and purification performances, covering the mainstream product specifications required by the market. The optimized mechanical structure and technological process reduce equipment operation failure rates and daily maintenance costs, realizing long-term stable and low-consumption operation. Meanwhile, the standardized production process effectively controls the consistency of panel thickness, flatness, bonding strength, and other core indicators, avoiding quality differences between different batches of products and providing reliable material support for large-scale and standardized purification engineering construction.
With the continuous upgrading of modern industrial manufacturing and medical health industry standards, the market demand for high-performance purification sandwich panels is constantly improving, which also promotes the continuous optimization and upgrading of purification sandwich panel production line technology. The continuous innovation in automation control, precise processing, and material composite technology further improves the production efficiency and product quality level of the equipment. As the core supporting equipment for purification panel manufacturing, the purification sandwich panel machinery will continue to play an important role in the construction of clean workshops, medical isolation spaces, precision electronic manufacturing workshops, and food processing purification environments, providing high-quality and high-stability panel products for various high-standard clean space construction scenarios, and promoting the standardized and intelligent development of the purification building materials industry.
