sandwich panel line

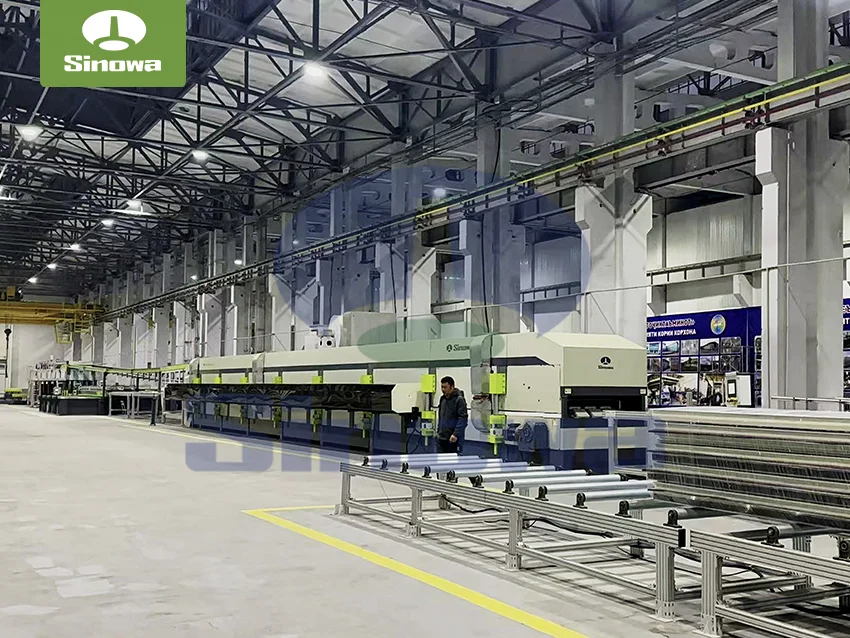

The overall structural configuration of the insulation PU sandwich panel production line follows a linear and streamlined production logic, with each functional unit closely connected to form a closed and efficient manufacturing loop. The front-end part of the production line is mainly responsible for raw material unwinding, surface pretreatment and profile forming of metal panels. Equipped with dual sets of unwinding devices, the system can simultaneously load upper and lower metal coil materials, ensuring synchronous feeding of double-layer metal sheets for subsequent composite processing. After unwinding, the metal sheets pass through surface protection film attaching and precision trimming mechanisms, which remove irregular edges and attach protective layers to prevent surface scratches and oxidation during subsequent thermal processing and mechanical extrusion. This preliminary processing step lays a foundation for the flatness and surface quality of finished panels, eliminating quality defects caused by raw material edge irregularities and surface damage.
Subsequent to pretreatment, the metal sheets enter the roll forming system, a core mechanical shaping unit composed of multiple groups of precision rolling stands. Through gradual rolling and bending by orderly arranged rollers, the flat metal sheets are processed into standardized profile structures with specific groove and edge shapes. The progressive forming mode avoids sudden deformation of metal materials, effectively preventing cracking, wrinkling and residual stress on the panel surface. The structural precision of roll forming directly determines the assembly accuracy of finished sandwich panels in construction applications, as standardized edge profiles ensure tight splicing and seamless installation between panels, improving the overall airtightness and thermal insulation effect of building enclosure structures. After forming, the metal panels are sent to the preheating zone, where uniform infrared heating is adopted to raise the panel temperature to a stable level suitable for polyurethane foaming and bonding. Preheating eliminates the temperature difference between metal materials and polyurethane raw materials, avoiding incomplete foaming, poor bonding and delamination problems caused by low surface temperature, and greatly enhances the interfacial adhesion strength between the metal surface layer and foam core material.
The middle section of the continuous PU sandwich panel production line is the most critical functional area, covering high-pressure foaming, material compounding and constant-temperature curing processes, which fundamentally determine the thermal insulation performance, structural stability and durability of PU sandwich panels. The polyurethane foaming system adopts a high-precision dynamic mixing and casting structure, which accurately measures two core raw materials of polyurethane, mixes them evenly through high-speed turbulence, and continuously sprays the mixed liquid material onto the surface of the lower formed metal panel. The entire mixing and spraying process is completed in a closed environment, ensuring stable proportioning of chemical components and uniform distribution of foaming materials. The precise flow control of raw materials enables the foam core to maintain consistent density and pore structure across the entire panel area, avoiding local hollowing, uneven thickness and inconsistent thermal conductivity that often occur in traditional manual or semi-automatic production modes.
Immediately after foam spraying, the upper formed metal panel is accurately closed and laminated with the lower panel through the guiding and pressing mechanism of the double-belt laminating system. The double-belt composite structure provides continuous and uniform pressure on the upper and lower surfaces of the composite panel, making the liquid polyurethane material fully expand and fill the space between the two metal layers. During the pressure compounding process, the integrated circulating heating system of the double-belt equipment maintains a constant thermal environment inside the curing zone, enabling the polyurethane material to complete chemical reaction, foaming expansion and solidification molding in a stable temperature field. The coordinated control of pressure, temperature and time in this process ensures that the foam core forms a compact and uniform closed-cell structure, which endows the finished panel with excellent thermal insulation, sound insulation and compression resistance. The closed-cell structure of polyurethane foam can effectively block heat conduction and air convection, greatly reducing heat transfer efficiency, while the integrated composite structure eliminates the risk of layer separation between the metal panel and the foam core during long-term use.
The post-curing area of the continuous PU sandwich panel line undertakes the tasks of panel shaping, cooling and fixed-length cutting, realizing the conversion of semi-finished continuous composite materials into standardized finished products. After high-temperature curing and preliminary shaping, the panels enter the natural cooling and shaping conveying system, which gradually reduces the panel temperature to room temperature through slow air circulation, eliminating internal stress generated by thermal processing and preventing panel bending, warping and deformation after molding. The slow cooling process ensures the stability of the internal molecular structure of the polyurethane foam, avoiding performance attenuation caused by rapid temperature change. After complete cooling and shaping, the continuous long-size panels are sent to the precision cutting unit, which adopts tracking and synchronous cutting technology to complete fixed-length cutting without stopping the PU sandwich panel line. This non-stop cutting mode avoids production interruption, ensures continuous operation of the entire line, and the cutting mechanism with high-precision positioning control can guarantee flat and neat cutting sections with no burrs or irregular fractures, meeting the dimensional accuracy requirements of different application scenarios.
The terminal part of the polyurethane sandwich panel production line is equipped with automatic stacking and auxiliary packaging systems, which realize intelligent collection and tidy arrangement of finished panels. The stacked finished panels are arranged in order according to fixed specifications, facilitating subsequent transportation, storage and centralized delivery. The whole production process from raw material feeding to finished product stacking is completed in a fully automated closed cycle, with minimal manual intervention, which not only improves production efficiency but also reduces human-induced quality fluctuations and operational safety risks. The integrated control system of the production line centrally regulates the operating parameters of all functional units, including feeding speed, heating temperature, foaming flow, composite pressure and cutting size, realizing synchronous coordination of each process link and ensuring the consistency of each batch of finished products.
The advanced technological advantages of the insulation polyurethane sandwich panel line are fully reflected in product performance stability and production flexibility. In terms of product quality control, the precise chemical proportioning and constant-temperature curing system enable the foam core of each panel to maintain stable density and closed-cell rate, ensuring long-term and efficient thermal insulation performance. The tight composite structure formed by continuous pressure bonding makes the panel have high overall structural strength, capable of withstanding external wind pressure and mechanical impact, and maintaining structural integrity in complex outdoor environments. In terms of production flexibility, the sandwich panel line can adapt to the processing of metal panels of different thicknesses and materials, and can adjust the foaming thickness and panel overall specifications according to different usage needs, meeting the diversified production requirements of wall panels, roof panels and special insulation panels for different buildings.
In actual industrial production applications, the standardized and automated operation mode of the PU sandwich panel manufacturing line effectively optimizes the production cost and resource utilization efficiency. The continuous feeding and precise quantitative foaming technology avoids waste of polyurethane raw materials, and the high integration of mechanical equipment reduces the space occupation of the production system and improves the utilization rate of factory production space. At the same time, the stable and efficient production process reduces the rate of defective products, avoids resource loss and time waste caused by unqualified products, and further improves the overall economic benefits of production. The finished panels produced by this production line have the characteristics of light weight, high strength, excellent thermal insulation, convenient installation and long service life, which can effectively reduce the energy consumption of building operation, shorten the construction cycle of engineering projects, and reduce the comprehensive construction cost.
With the continuous improvement of energy-saving and environmental protection requirements in the construction industry, the insulation PU sandwich panel production machine has been continuously optimized and upgraded in technological performance. The modernized production system pays more attention to environmental protection and energy-saving performance in the production process, adopting low-energy heating devices and closed material circulation structures to reduce energy consumption and volatile substance emission during production. The optimized foaming and curing process further improves the compactness and durability of the foam core, enabling the finished panels to maintain stable thermal insulation and structural performance in high and low temperature alternating environments, and adapt to diverse application scenarios such as high-temperature industrial workshops, low-temperature cold storage facilities and outdoor thermal insulation enclosure structures.
In summary, the insulation PU sandwich panel production line is a mature and efficient intelligent manufacturing system for energy-saving building materials. Through the organic combination of mechanical forming, chemical foaming, constant-temperature curing and automatic control technologies, it realizes standardized, large-scale and high-quality production of PU insulation sandwich panels. Each process link from raw material pretreatment to finished product output is precisely controlled and scientifically matched, ensuring the excellent and stable comprehensive performance of finished products. As a core production equipment for energy-saving building enclosure materials, this PU sandwich panel machine plays an important supporting role in promoting the development of green energy-saving buildings, improving the level of industrialized building construction, and reducing building energy consumption, and has broad application prospects and industrial development value in the modern construction and new energy fields.
