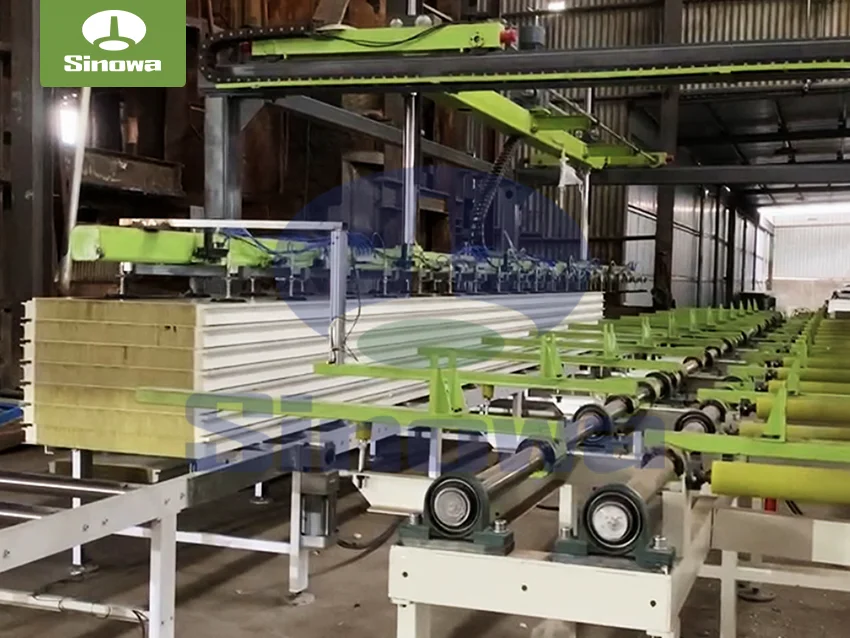

The operational logic of a fully automatic rock wool sandwich panel production line is based on the physical and chemical processing principles of inorganic mineral raw materials, achieving precise transformation from solid mineral raw materials to finished rigid rock wool boards through coordinated operation of multiple automated subsystems. The entire production process follows a continuous assembly line mode, with each functional module closely connected and synchronously operated, avoiding production interruption and quality fluctuation caused by manual intervention. The core raw materials used in the production are natural inorganic minerals with stable physical properties, which are processed through high-temperature melting and fiber stretching to form fine and uniform mineral fibers, and then made into board materials with excellent thermal insulation, fire resistance, sound absorption, and structural stability after bonding, curing and forming. The full-automatic design runs through every key link of production, realizing automatic proportioning, automatic feeding, automatic temperature regulation, automatic forming, automatic sizing cutting and automatic waste recovery, ensuring that each batch of products maintains consistent performance indicators and structural specifications.
The front-end raw material processing and feeding system is the basic guarantee for the stable operation of the rockwool sandwich panel production line and the uniformity of finished product quality. This subsystem is equipped with intelligent metering, automatic crushing, screening and conveying devices, which can process bulk raw materials into uniform particle materials that meet production process requirements. Different from traditional manual batching methods, the fully automatic feeding system adopts closed-loop electronic metering and dual-path feeding technology, which can accurately control the proportion of various raw materials in real time according to preset process parameters. The equipped multi-bin storage structure with optimized cone angle design ensures smooth and uniform blanking of raw materials, effectively preventing material blockage and uneven feeding problems. Meanwhile, the system is matched with an automatic drying and moisture adjusting device, which can treat raw materials with excessive moisture to keep the moisture content within the optimal process range, eliminating the adverse impact of moisture fluctuation on subsequent melting and fiber forming effects. All raw material transmission links adopt fully enclosed automatic conveying structures, which not only avoids material loss and dust overflow but also maintains the cleanliness and stability of the production environment, laying a solid foundation for standardized production.
The high-temperature melting system is the core functional module of the rock wool board production line, undertaking the key process of converting solid mineral particles into molten liquid materials. The system adopts a closed high-temperature melting furnace with an intelligent constant temperature control module, which can stably maintain the internal temperature within the optimal high-temperature range required for raw material melting. Through precise temperature regulation and uniform heat distribution inside the furnace, all raw materials can be fully melted into homogeneous molten slurry without unmelted particles or local overheating deterioration. The closed furnace body design effectively reduces heat loss, improves thermal energy utilization efficiency, and avoids external interference to the high-temperature melting environment. The entire melting process is automatically monitored and adjusted by the system in real time. When the raw material feeding speed or melting state changes slightly, the system will automatically fine-tune the heating power and material residence time to ensure the stability of the fluidity and uniformity of the molten slurry, which directly determines the fineness and uniformity of subsequent rock wool fibers.
After the high-temperature melting process, the molten mineral slurry is automatically transported to the high-speed fiber forming system, which completes the transformation from liquid slurry to fine inorganic fibers. The core of this system is the high-speed centrifugal spinning equipment. Under the action of high-speed rotating centrifugal force and stable auxiliary airflow, the molten slurry is evenly stretched into ultra-fine and continuous mineral fibers. The automated fiber forming system can stably control the fiber diameter, length and uniformity by adjusting the rotating speed, airflow pressure and material flow parameters. The generated rock wool fibers have uniform thickness, soft texture and stable structural performance, which are the key to ensure that the finished rock wool board has excellent thermal insulation and mechanical properties. In the fiber forming process, the automatic binder spraying device works synchronously, which can evenly spray a quantitative environmentally friendly binder on the surface of each fiber. The intelligent spraying system realizes micro-quantitative and uniform spraying, avoiding excessive or insufficient binder coating, ensuring effective bonding between fibers while maintaining the air permeability and thermal insulation performance of the fiber layer.
The fiber collection and wool laying forming system is an important link to determine the structural uniformity and density stability of rock wool boards. The dispersed fibers after spraying binder are evenly collected on the circulating mesh belt through the automatic cotton collecting device, and then the pendulum wool laying equipment carries out layered and uniform wool laying operation. Different from manual auxiliary wool laying, the fully automatic wool laying system can realize continuous and reciprocating uniform paving in the horizontal direction, and precisely control the paving thickness and fiber stacking density through program setting. The layered wool laying mode makes the internal fiber structure of the rock wool blank more three-dimensional and uniform, effectively improving the overall structural stability and pressure resistance of the finished board. After wool laying, the automatic pre-pressing device preliminarily compresses the loose fiber layer to form a continuous and flat rock wool board blank, which makes the fiber structure preliminarily fixed, prevents fiber scattering and thickness deviation in the subsequent transmission process, and ensures the flatness and dimensional uniformity of the board blank entering the curing stage.
The automatic curing and cooling system undertakes the key process of solidifying the board blank into a rigid finished board structure. The pre-pressed continuous board blank is automatically sent into the constant-temperature curing furnace through the conveyor system. The internal temperature and air circulation of the curing furnace are intelligently adjusted in real time, so that the binder inside the fiber layer can fully react and solidify under the optimal temperature environment, enabling the dispersed fibers to form a stable integrated structure. The fully automatic curing system can accurately match the curing temperature, curing time and air volume according to the set board thickness and density parameters, ensuring thorough curing without local insufficient curing or over-curing embrittlement. After curing, the rigid rock wool board is automatically transported out of the furnace and enters the closed circulating cooling system. The uniform and gentle cooling mode avoids the quality problems of structural deformation and performance attenuation caused by rapid temperature change, and the cooled rock wool board has stable hardness, flat surface and uniform internal structure, meeting the basic forming standards of finished products.
The post-processing automatic cutting and shaping system realizes the precise sizing and finishing of finished rock wool boards. The continuous whole-board material after cooling is stably transmitted to the multi-functional automatic cutting equipment. Through the preset program parameters, the system completes fixed-length transverse cutting and edge trimming in one go. The intelligent cutting system has high-precision sensing and positioning functions, which can automatically correct the tiny deviation of board transmission in real time, ensuring that the cutting size of each board is accurate and consistent, and the cutting section is flat and smooth without burrs or irregular fractures. In the cutting process, the matched automatic waste edge recovery system can timely collect the cut leftover materials and waste edges, and the recovered waste materials are automatically crushed and screened, and then returned to the front-end raw material processing link for secondary utilization. This closed-loop waste recovery mode not only reduces material waste and production cost, but also realizes the full utilization of resources and avoids material waste and environmental pollution caused by waste accumulation.
The full-process intelligent control system is the brain of the entire fully automatic rock wool sandwich panel line, realizing centralized management and synchronous scheduling of all functional modules. The system adopts integrated program control technology, and all production parameters including raw material proportioning, melting temperature, spinning speed, wool laying thickness, curing parameters and cutting size can be preset and intelligently adjusted through the central control terminal. During continuous production, the system monitors the operating state of each equipment module and product quality indicators in real time. Once abnormal parameters such as unstable feeding, temperature deviation or uneven wool laying are detected, the system will automatically trigger fine adjustment or early warning protection to eliminate hidden quality risks in advance. The highly integrated automatic control mode realizes the linkage operation of the whole line, avoids the asynchronous operation of single equipment in semi-automatic production lines, greatly reduces manual operation links, and only requires a small number of staff to conduct real-time monitoring and routine maintenance of the equipment, effectively reducing labor input and human error rate.
Compared with traditional semi-automatic and manual production modes, fully automatic rock wool sandwich panel machine has prominent advantages in production stability, product quality consistency and operational efficiency. In terms of quality control, the full-process automated parameter control eliminates the quality fluctuation caused by manual operation differences, making the density, thickness, fiber uniformity, thermal insulation performance and mechanical strength of each batch of rock wool boards highly consistent. In terms of production efficiency, the continuous uninterrupted assembly line operation realizes large-scale and continuous production, effectively improving the unit time output of products. In terms of production safety and environmental protection, the fully enclosed automatic operation structure reduces manual contact with high-temperature equipment and production materials, reducing operational safety risks. At the same time, the closed production and waste recycling system effectively controls dust emission and material waste, meeting the green production requirements of modern industrial manufacturing.
In practical industrial application, the fully automatic rockwool board production line has strong process adaptability and product flexibility. By adjusting the operating parameters of each module through the central control system, the equipment can produce rock wool boards with different thicknesses, densities and structural specifications, which can meet the diverse application needs of building exterior wall thermal insulation, roof fire protection, industrial pipeline insulation, equipment sound insulation and other scenarios. The whole line has stable continuous operation capacity, can adapt to long-term uninterrupted industrial production, and has low failure rate and convenient daily maintenance. The modular equipment design makes the production line have good expandability, which can be matched with subsequent automatic packaging, stacking and other auxiliary equipment according to production needs, realizing a more complete full-automatic production process from raw material input to finished product warehousing.
With the rapid development of the global green building industry and energy-saving and environmental protection industries, the market demand for high-performance, stable-quality and environmentally friendly rock wool insulation materials continues to grow, which puts forward higher requirements for the production level and product quality of rock wool products. As an advanced intelligent manufacturing equipment, the fully automatic rock wool board production line effectively solves the pain points of unstable product quality, low production efficiency, high labor cost and poor environmental protection effect in traditional production modes. It promotes the upgrading of the rock wool material manufacturing industry from extensive manual production to refined, intelligent and green standardized production. In the future, with the continuous progress of industrial intelligent technology, the fully automatic rock wool board production line will further realize intelligent parameter optimization, fault self-diagnosis and unmanned operation upgrading, providing more efficient, environmentally friendly and stable equipment support for the development of the new building material industry and the construction of green energy-saving buildings.
