sandwich panel machine
The essence of soundproof sandwich panels lies in their layered composite structure, which combines rigid outer protective layers and porous sound-absorbing core materials to achieve dual functions of structural support and noise attenuation. Unlike ordinary thermal insulation sandwich panels, soundproof-focused composite panels place higher requirements on core material density, composite bonding tightness, internal structural uniformity, and overall panel flatness. Any irregularity in the production process, including uneven core material filling, insufficient bonding strength between layers, or inconsistent curing degrees, will directly compromise the acoustic insulation effect, leading to noise leakage and reduced service durability. The soundproof sandwich panel machine is professionally optimized and upgraded for these core performance requirements, realizing precise control over every production link from raw material pretreatment to finished product molding, and fundamentally solving the performance instability problems existing in traditional manual and semi-automatic production modes.
The entire operating logic of the soundproof sandwich panel line follows a continuous, streamlined automated production mode, with all functional modules closely coordinated to form an integrated production closed loop. The production workflow starts with raw material feeding and pretreatment, covering outer layer metal coil uncoiling, leveling, surface cleaning, and preheating treatment. The outer layer materials commonly used for soundproof panels include galvanized steel sheets, color-coated steel sheets, and aluminum sheets, all of which feature high structural strength, excellent weather resistance, and strong surface adhesion. The uncoiling and leveling system of the equipment effectively eliminates material warping, wrinkles, and surface irregularities caused by long-term coil storage, ensuring the flatness of the outer layer foundation. Meanwhile, the surface pretreatment process removes dust, oil stains, and oxide layers on the material surface, creating optimal bonding conditions for subsequent glue coating and composite molding, and enhancing the long-term bonding stability between the outer layer and the core material.

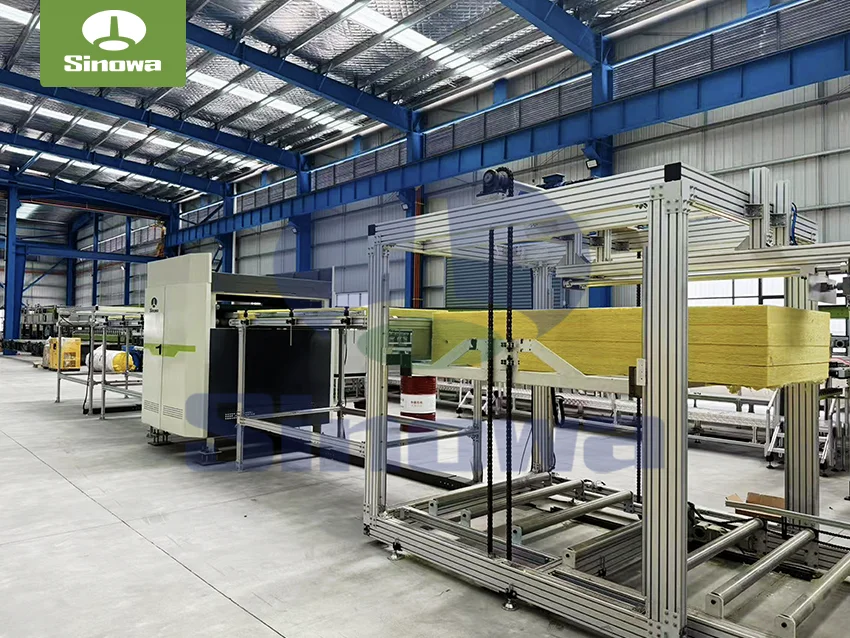

Following the pretreatment of outer layer materials, the sandwich panel equipment enters the core material laying and functional glue coating stage, which is the core link determining the sound insulation performance of the finished panel. Soundproof sandwich panels typically adopt high-performance sound-absorbing core materials such as polyurethane foam, polyisocyanurate foam, and rock wool. Different from ordinary thermal insulation core materials, these soundproof core materials have specially adjusted internal pore structures and density parameters, which can effectively absorb and isolate high-frequency and medium-frequency noise waves. The automated feeding system of the soundproof sandwich panel machine can adaptively adjust the core material laying thickness and paving density according to preset production parameters, ensuring uniform and gap-free laying of the core material in the panel body. In the glue coating link, the high-precision glue spraying system realizes uniform and quantitative glue output, avoiding local excessive or insufficient glue accumulation. This precise gluing technology not only improves the bonding fastness between the core material and the outer layer but also prevents the formation of internal gaps inside the panel, which is crucial to avoiding noise transmission through gap vibration.
After the completion of material compounding, the panel body enters the constant-pressure laminating and constant-temperature curing stage, which is a key process for shaping the overall structure and solidifying the acoustic performance of soundproof sandwich panels. The soundproof sandwich panel making machine is equipped with a double-belt constant-pressure conveying and pressing structure, which can provide continuous and uniform pressure for the composite panel body. This stable pressure environment ensures that the outer layer and the core material are tightly fitted without relative displacement or local depressions. Matching with the constant-temperature curing system, the equipment maintains a stable temperature environment in the curing area, enabling the adhesive to fully react and solidify, and the core material structure to form a stable integrated state. Sufficient and constant-pressure curing effectively enhances the overall structural compactness of the panel, eliminates internal loose structures, and further improves the sound insulation and vibration reduction capabilities of the finished product. Panels produced through this process feature consistent internal structure, uniform density, and stable acoustic performance, completely avoiding the performance differences between individual batches caused by artificial operation errors in traditional production.

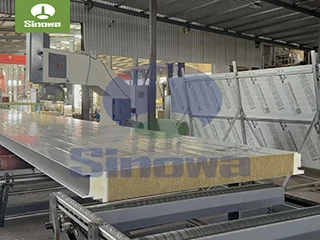

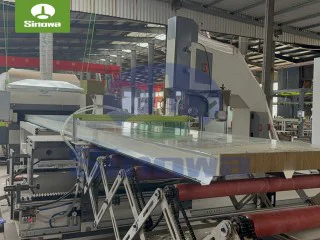

After curing and cooling shaping, the continuous integral panel enters the fixed-length cutting and edge finishing stage. The intelligent cutting system of the sandwich panel production equipment can automatically identify and adjust the cutting size according to production settings, realizing precise fixed-length cutting of the panel body. The high-speed cutting tool ensures flat and burr-free cutting sections, maintaining the integrity of the panel’s edge structure and avoiding local structural damage that may affect assembly and sound insulation effects. Meanwhile, the edge trimming and dust removal device of the machine automatically polishes panel edges and cleans residual debris generated during cutting, ensuring the neatness and flatness of the finished panel. Some advanced equipment models are also equipped with automatic film laminating functions, which can attach protective films to the panel surface to prevent scratches and corrosion during transportation and installation, further improving the finished product qualification rate and surface quality.

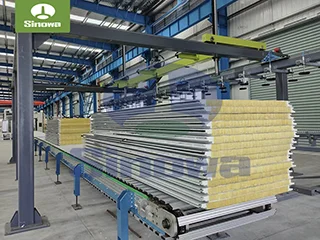

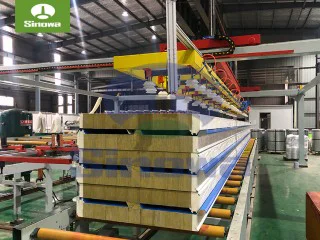

The final stage of the production process is automatic stacking and output. The finished soundproof sandwich panels that have completed all processing procedures are automatically conveyed to the stacking platform through the intelligent conveying system, and the mechanical stacking device realizes orderly arrangement and stacking of the panels. This fully automated output mode completely reduces manual handling links, reduces the risk of panel deformation and surface damage caused by manual operation, and greatly improves production efficiency and site management standardization. The entire production process from raw material input to finished product output realizes continuous unmanned operation, with all production parameters uniformly regulated and controlled by the central intelligent control system.
The core advantages of modern soundproof sandwich panel production line are reflected in their high automation, precise parameter control, strong production adaptability, and stable product quality. In terms of automation level, the equipment integrates intelligent sensing, automatic deviation correction, and real-time parameter monitoring technologies. During the continuous production process, the system can automatically monitor material feeding speed, pressing pressure, curing temperature, cutting accuracy and other key parameters, and realize real-time deviation correction and parameter adjustment. Once abnormal data such as uneven material feeding and excessive temperature fluctuation is detected, the system will automatically trigger early warning and fine-tune the operating state, ensuring the continuity and stability of the production process. This intelligent control mode effectively reduces manual intervention, lowers the technical threshold for production operation, and avoids quality fluctuations caused by human errors.
In terms of production adaptability, the soundproof sandwich panel production machine has flexible production capabilities and can meet the production requirements of sound insulation panels with different specifications, thicknesses, and sound insulation grades. By adjusting the equipment operating parameters, it can adapt to the production of different core material types and different outer layer thicknesses, realizing one machine with multiple functions. Whether it is thin sound insulation decorative panels for indoor buildings or thick high-strength sound insulation panels for industrial workshops and noise isolation barriers, the equipment can complete standardized production. This flexible production feature enables manufacturers to quickly respond to market demand changes, enrich product categories, and improve market competitiveness.
In terms of product performance guarantee, the mechanical integrated production mode of the soundproof sandwich panel manufacturing machine effectively optimizes the internal structure of soundproof panels. The uniform constant-pressure pressing and constant-temperature curing process makes the internal pore structure of the core material more regular, the bonding interface between layers more compact, and the overall structural integrity of the panel higher. This structural optimization directly improves the sound insulation performance of the panel, enabling it to effectively isolate low-frequency, medium-frequency and high-frequency noise generated by industrial equipment, urban traffic, and indoor activities. At the same time, the integrated composite structure also enhances the mechanical properties of the panel, including bending resistance, compression resistance and impact resistance, ensuring that the panel can maintain stable sound insulation effect and structural stability during long-term service, and reducing the maintenance cost of later use.
In addition to functional performance advantages, the soundproof sandwich panel machinery also has significant energy-saving and environmental protection characteristics, conforming to the current green development trend of the building materials industry. The optimized structural design of the equipment reduces energy consumption in the production process, and the precise quantitative feeding and glue spraying technology avoids raw material waste, improving the comprehensive utilization rate of production materials. At the same time, the closed production environment effectively reduces dust and volatile gas emissions during the production process, improving the production workshop environment and realizing clean production. The soundproof panels produced by the equipment are all green and environmentally friendly building materials, which do not produce harmful substances during use, and have the advantages of light weight, convenient installation, and recyclability, meeting the green building standards of modern construction projects.
With the continuous upgrading of urban construction standards and the increasingly stringent environmental noise control policies, the market demand for high-performance soundproof sandwich panels continues to expand, which also puts forward higher technical requirements for supporting production equipment. The future development of soundproof sandwich panel machines will focus on intelligent upgrading, high-efficiency production, multi-functional integration and green low-carbon optimization. On the basis of maintaining stable precision production, the equipment will further integrate digital twin technology and remote monitoring technology, realizing remote operation, real-time data statistics and intelligent fault diagnosis of production equipment, improving the intelligent management level of production lines. At the same time, the equipment will develop towards higher production speed and larger production capacity, while ensuring product precision, to meet the growing large-scale market demand.
In addition, with the diversification of application scenarios of soundproof sandwich panels, the sandwich panel manufacturing equipment will also realize multi-functional composite production, meeting the customized production requirements of panels with dual functions of sound insulation and fire prevention, sound insulation and heat preservation, and sound insulation and waterproofing. Through the optimization of mechanical structure and control system, the equipment can switch production parameters more efficiently and adapt to the customized production of differentiated products, providing more flexible production solutions for building materials manufacturers. In terms of environmental protection and energy saving, the new generation of soundproof sandwich panel machines will further optimize the energy consumption structure, adopt more energy-saving transmission systems and heating systems, reduce production energy consumption and carbon emissions, and help the building materials industry achieve green and low-carbon transformation.
In conclusion, the soundproof sandwich panel production machinery is a key core equipment supporting the industrialized production of high-performance sound insulation building materials. It integrates advanced mechanical manufacturing technology and material processing technology, and realizes standardized, efficient and stable production of soundproof sandwich panels through precise process control and integrated streamlined operation. Its excellent production performance not only ensures the stable acoustic function and structural quality of finished panels, but also promotes the standardized development of the sound insulation building materials industry. With the continuous progress of construction technology and the continuous improvement of public requirements for building comfort and environmental quality, the soundproof sandwich panel machine will continue to play an irreplaceable role in the field of building material production, and continuously iterate and upgrade with market demand and technological progress, providing more high-quality, efficient and green production solutions for modern noise insulation engineering and building construction.
