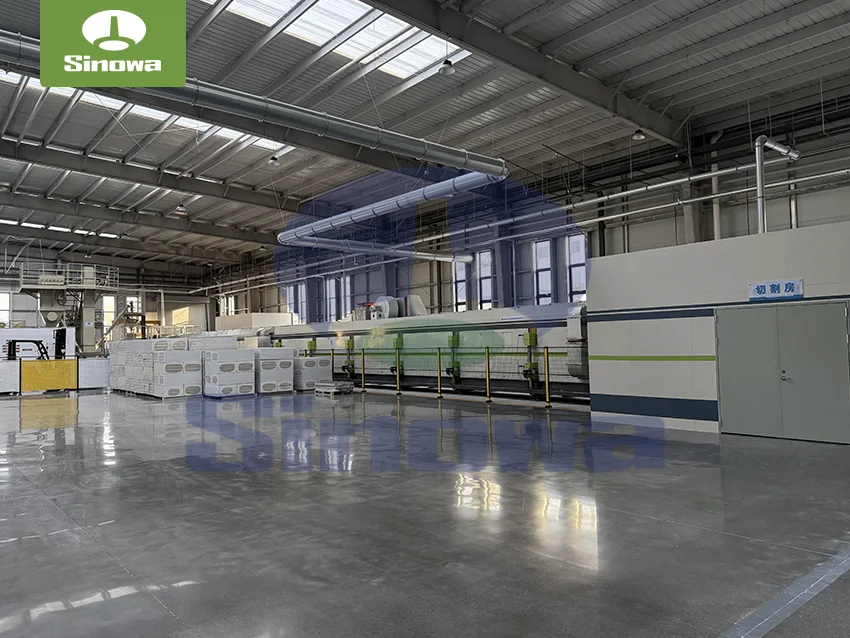

The entire manufacturing system developed and produced by high-tech PU sandwich panel machine factories is a highly integrated intelligent production unit that combines mechanical transmission, hydraulic control, pneumatic regulation, precise temperature control, and automatic electronic programming. Each functional module of the equipment is independently optimized and mutually coordinated to realize continuous and uninterrupted production of PU sandwich panels, fundamentally changing the intermittent and manual-assisted production mode of early panel manufacturing equipment. The complete production workflow starts with the raw material unwinding and pretreatment stage, where the equipment is equipped with a stable tension control unwinding system to process coiled surface materials including color-coated metal sheets, aluminum substrates, and flexible non-woven materials. This system effectively avoids material wrinkling, deformation, and uneven stretching during the unwinding process through real-time tension adjustment and synchronous speed control, ensuring that all surface materials enter the subsequent forming process in a flat and uniform state.
After unwinding, the surface materials go through a multi-stage leveling and cleaning process embedded in the production line. The high-precision leveling roller group corrects subtle structural deviations on the surface of coiled materials, while the automatic cleaning device removes surface dust, oil stains, and oxide impurities. This pretreatment process is crucial for enhancing the bonding performance between the surface material and the PU foam core layer, as clean and flat material surfaces can maximize the adhesion effect and avoid delamination and cracking of finished panels during long-term use. Following pretreatment, the materials enter the roll forming stage, where the equipment adopts progressive roller pressing technology. Through groups of precision-shaped forming rollers, the flat metal or composite materials are gradually pressed into customized profile structures that meet different architectural design requirements. The modular forming roller design enables flexible switching of panel specifications, allowing the equipment to adapt to the production of wall panels, roof panels, and special-shaped enclosure panels without major equipment transformation.
The core technological advantage of high-tech PU sandwich panel line lies in the precise PU raw material mixing, injection, and foaming control system, which is the key to determining the thermal insulation performance, structural stability, and service life of finished panels. The equipment is equipped with a fully automatic raw material proportional mixing unit that realizes accurate metering of polyurethane polyether and isocyanate raw materials through microelectronic flow control modules. The system can dynamically adjust the mixing ratio according to different production environments and product requirements, ensuring that the chemical reaction of raw materials is fully and uniformly completed. Different from traditional manual or semi-automatic mixing equipment that prone to ratio deviation and uneven mixing, the intelligent mixing system eliminates human intervention errors, making the foaming density, cell structure uniformity, and reaction activity of each batch of raw materials maintain a highly consistent standard.
After sufficient mixing, the liquid PU raw materials are evenly injected into the gap between the upper and lower surface materials through a high-pressure automatic injection device. The injection position, flow rate, and injection range are intelligently controlled by the system to ensure that the liquid raw materials can fully fill the entire interlayer space without overflow or empty gaps. Subsequently, the composite structural materials enter the constant-temperature curing and laminating section, which is equipped with a long-distance double-belt pressing and heating system. The closed constant-temperature heating environment provides stable reaction conditions for PU foam expansion and solidification, enabling the foam to complete uniform foaming and tight bonding with the surface materials under continuous pressure. The precision temperature control system can adjust the internal temperature of the curing section in real time according to the ambient temperature and production speed, avoiding insufficient curing caused by low temperature or foam aging and performance degradation caused by excessive high temperature.
In the curing and laminating stage, the synchronous operation of the double-belt system ensures that the composite panel maintains a constant thickness and flatness during the whole process of foaming and solidification. The pressure balance device inside the equipment can eliminate local pressure differences, preventing problems such as uneven panel thickness, surface bulging, and core layer hollowing that often occur in traditional production equipment. After completing curing and preliminary shaping, the panels enter the cooling and shaping link, where the gradual cooling system releases the internal stress of the panels generated during heating and pressing, effectively improving the structural stability and flatness of finished products and reducing the probability of later deformation and warping.
The final stage of the production process includes precision trimming, fixed-length cutting, and automatic stacking. The high-speed tracking cutting device adopts non-stop cutting technology, which can complete accurate fixed-length cutting of panels while the production line is running continuously, completely avoiding production stagnation caused by cutting operations and greatly improving overall production efficiency. The cutting tool is made of high-hardness wear-resistant materials, which can ensure smooth and burr-free cutting sections of panels, reducing subsequent secondary processing procedures. The automatically cut finished panels are transported to the stacking platform through the conveying system, and the intelligent stacking device realizes orderly arrangement and automatic stacking of panels according to set specifications, laying a foundation for subsequent packaging and transportation.
High-tech PU sandwich panel production line factories have always adhered to the concept of technological iteration and process upgrading, continuously optimizing every detail of equipment operation and production flow. In terms of energy consumption control, the equipment is equipped with an intelligent energy-saving operation system, which can automatically adjust the operating power of heating, power, and transmission modules according to real-time production load, effectively reducing invalid energy consumption in the production process. For material utilization, the precision metering injection system minimizes the residue and waste of PU raw materials, while the optimized trimming process reduces the loss of surface materials, greatly improving the overall material utilization rate compared with traditional equipment.
In terms of intelligent control, the polyurethane sandwich panel production line adopts centralized programmable control technology, with a human-machine interactive operation interface that integrates parameter setting, operation monitoring, fault diagnosis, and data statistics. Operators can complete the switching of different product specifications, adjustment of production speed, and calibration of process parameters through simple operations. The built-in fault self-diagnosis system can real-time monitor the operating status of each functional module of the equipment, automatically identify abnormal problems such as material blockage, parameter deviation, and equipment failure, and send prompt reminders while initiating protective measures, effectively reducing equipment failure rate and production downtime. In addition, the equipment supports production data recording and analysis, which can summarize production efficiency, material consumption, and product qualification rate data, providing effective data support for enterprise production management and process optimization.
The structural design of high-tech polyurethane sandwich panel line fully considers the stability and durability of long-term continuous operation. The main frame of the equipment is made of high-strength thickened steel materials, which undergoes strict stress relief treatment to ensure that the equipment will not produce structural deformation after long-term high-load operation. Key transmission and wearing parts adopt optimized structural designs and high-quality matching accessories, which improve the wear resistance and stability of the equipment and extend the overall service life of the production line. At the same time, the equipment adopts a modular assembly design, which facilitates daily maintenance, component replacement, and equipment upgrading, reducing the difficulty and cost of later equipment maintenance for users.
In terms of production adaptability, the high-tech polyurethane sandwich panel machine has strong flexible production capabilities. It can adapt to the production of panels with different thicknesses, different surface materials, and different foam densities, covering the production needs of thermal insulation panels for low-temperature cold storage, fire-retardant enclosure panels for industrial plants, lightweight decorative panels for prefabricated buildings, and energy-saving insulation panels for civil buildings. By adjusting the process parameters of the equipment, the performance indicators of finished panels such as thermal insulation, compression resistance, and bending resistance can be accurately controlled, enabling the products to adapt to diverse and complex application scenarios in the construction industry.
High-tech PU sandwich panel production machine factories not only focus on the technical performance optimization of single equipment but also pay attention to the overall matching and systematic upgrading of the production line. The supporting auxiliary systems such as automatic film covering, edge sealing, and waste recycling are perfectly integrated with the main production line, forming a one-stop intelligent production system from raw material input to finished product output. The fully automated production mode greatly reduces the dependence on manual labor, lowers the labor cost of panel production enterprises, and avoids product quality fluctuations caused by manual operation differences.
With the global construction industry accelerating towards energy conservation, environmental protection, and intelligence, the market demand for high-performance PU sandwich panels continues to rise, which also puts forward higher requirements for the performance and intelligence level of supporting production equipment. High-tech PU sandwich panel manufacturing machine factories keep pace with industrial development trends, continuously carrying out technical research and innovation in green production, intelligent manufacturing, and high-precision processing. By optimizing the foaming reaction process, the equipment reduces the emission of harmful substances in the production process and realizes green and environmentally friendly production. Through the upgrading of intelligent algorithms, the equipment’s automatic adaptation ability to different raw materials and production environments is further improved, and the stability and consistency of product quality are continuously enhanced.
In practical industrial applications, the high-tech PU sandwich panel production equipment developed and manufactured by professional factories has obvious comprehensive advantages over traditional equipment. Its efficient continuous production capacity can meet the large-scale and centralized production needs of modern panel manufacturers, while the stable product quality effectively reduces the rate of defective products and rework costs. The diversified production flexibility enables enterprises to quickly respond to market order changes and meet personalized customization needs, improving the market competitiveness of downstream production enterprises. At the same time, the equipment’s excellent energy-saving and consumption-reducing performance helps enterprises reduce long-term production operating costs and achieve sustainable production and operation.
In the future development process, high-tech PU sandwich panel making machine factories will continue to take technological innovation as the core driving force, further deepen the integration of artificial intelligence, digital control, and mechanical manufacturing technology. They will continuously optimize the equipment’s intelligent scheduling capability, remote monitoring function, and unmanned production level, and develop more efficient, energy-saving, and intelligent production solutions for the PU sandwich panel manufacturing industry. By continuously improving the technical level and product performance of production equipment, these factories will continue to empower the upgrading of the global construction thermal insulation material industry and promote the high-quality development of the prefabricated building and energy-saving insulation industries.
