sandwich panel line
The overall structural design and working logic of the steel structure rock wool sandwich panel line are based on the physical characteristics of raw materials and the composite molding principle of sandwich panels. The entire production process relies on coordinated operation of multiple functional units, with each link precisely matched in speed and process parameters to ensure the overall consistency of panel performance. The main raw materials involved in production include continuous steel coils for surface decoration and structural protection, high-density rock wool core materials for thermal insulation and fire resistance, and environment-friendly polymer adhesives for bonding and compounding. Each raw material has strict process adaptation requirements: steel sheets need to maintain flatness and uniform tensile properties after leveling and forming to ensure the surface rigidity and weather resistance of finished panels; rock wool core materials rely on internal fiber structural optimization to guarantee long-term thermal insulation, sound absorption and fire resistance; adhesives need to maintain stable bonding activity in a specific temperature and pressure environment to avoid delamination and cracking of composite panels during long-term use. The production line realizes intelligent adjustment of process parameters according to raw material characteristics, ensuring that different batches of raw materials can produce panels with stable and uniform performance.
The complete production flow of the steel structure rock wool sandwich panel production line starts with raw material preparation and pretreatment, which is the foundation for ensuring subsequent composite quality. The steel coil raw materials are installed on the automatic uncoiling device, which realizes continuous and stable discharging through mechanical tension control, avoiding material deviation and stretching deformation during conveying. After uncoiling, the steel sheet enters the leveling and trimming unit, where multiple groups of precision rollers eliminate the internal stress of the steel sheet generated during coiling and storage, correcting subtle warping and unevenness on the sheet surface. The trimming device accurately cuts the edge of the steel sheet according to the preset panel width specification, removing irregular burrs and uneven edges to ensure the neatness of the subsequent composite interface. In order to improve the surface durability and anti-corrosion performance of the panel, the production line is equipped with an automatic film coating unit, which covers a layer of protective film on the surface of the formed steel sheet, effectively isolating dust, scratches and chemical corrosion during production, transportation and construction. This series of pretreatment processes standardizes the state of steel sheet raw materials, laying a foundation for tight composite bonding with rock wool core materials.
The core material processing and shaping process is a key link that determines the thermal insulation and fireproof performance of finished panels. Rock wool, as a porous inorganic fiber material, has the advantages of non-combustibility, low thermal conductivity and excellent sound absorption, but its loose fiber structure requires professional shaping treatment to adapt to automated composite production. The rock wool sandwich panel machine is equipped with a special rock wool fiber adjusting device, which adjusts the arrangement direction of internal rock wool fibers to make the fibers vertically distributed relative to the panel surface. This structural adjustment significantly improves the compressive resistance and structural stability of the rock wool core layer, avoiding core layer collapse and deformation under external pressure, and effectively enhancing the overall mechanical strength of the sandwich panel. After fiber adjustment, the rock wool core material is cut into continuous strip structures matching the panel width through a precision cutting system, and the surface is smoothed to ensure the flatness of the bonding interface. The processed rock wool core material has uniform density and stable structural performance, which can maintain consistent thermal insulation and fireproof effects in different temperature and humidity environments, and avoid performance attenuation caused by uneven internal structure.
Glue spraying and composite pressing are the core molding processes of the entire rockwool sandwich panel production line, directly determining the bonding firmness and overall structural integrity of the sandwich panel. The production line adopts an automatic precise glue spraying system, which evenly coats the environment-friendly adhesive on the bonding surfaces of the steel sheet and rock wool core material with accurate dosage control. The uniform glue layer distribution ensures that every contact interface can form a tight bonding structure, avoiding local hollowing and weak bonding. Different from traditional manual glue application with uneven dosage, the automatic glue spraying mode realizes dynamic matching of glue amount according to production speed and material area, ensuring the stability of bonding effect while avoiding adhesive waste. After glue application, the steel sheet and rock wool core material are accurately aligned and preliminarily compounded through the conveying positioning system, and then enter the constant-temperature double-belt pressing unit for integral pressing and curing. The pressing unit maintains stable pressure and temperature environment during operation, enabling the adhesive to fully react and solidify, forming a high-strength integrated composite structure between the steel sheet and the rock wool core layer. The constant-temperature curing environment eliminates the problem of incomplete adhesive reaction caused by temperature fluctuation, effectively improving the bonding durability and peeling resistance of the panel, and ensuring that the composite layer will not delaminate or separate during long-term service.

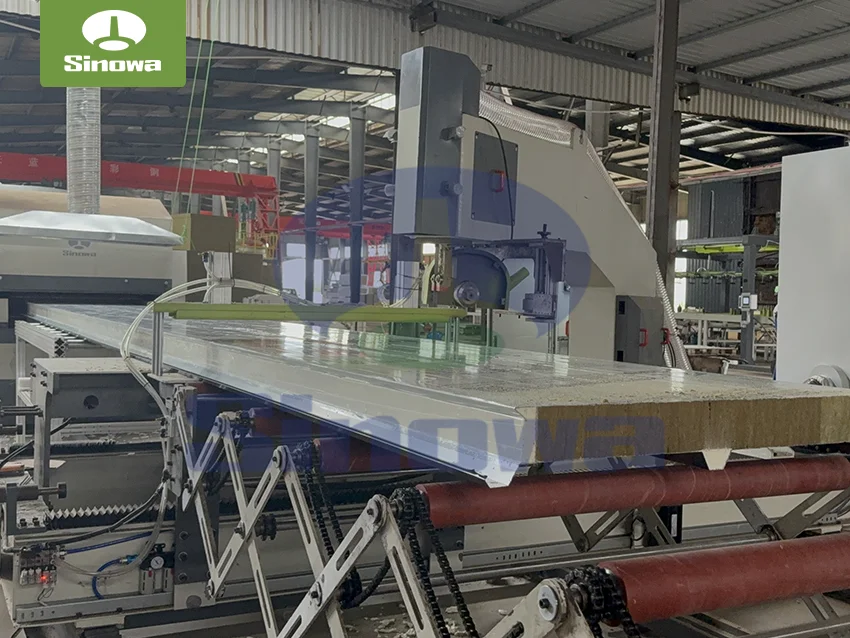

After composite pressing and curing, the semi-finished continuous panel enters the fixed-length cutting and edge finishing stage. The intelligent length measuring system of the rock wool board production line conducts real-time monitoring of the conveying length of the panel, and automatically starts the cutting device when reaching the preset specification size. The high-precision cutting mechanism adopts stable mechanical transmission structure to ensure flat and neat cutting sections without burrs, cracks and edge collapse, maintaining the integrity of the panel structure and appearance. For the edge parts of the panel, the special finishing device carries out sealing and trimming treatment, optimizing the edge tightness of the panel, effectively preventing external moisture, dust and humid air from penetrating into the core layer, and avoiding mildew, damp and performance degradation of the rock wool core material. The edge finishing process also improves the assembly compatibility of the panel, making the on-site splicing and installation of subsequent building envelopes more tight and convenient, reducing the gap heat transfer and air leakage problems of the building enclosure structure.
The final stage of the production process is automatic detection, stacking and finished product output. The continuous sandwich panel production line is equipped with an online real-time detection module, which continuously monitors the thickness flatness, surface uniformity and overall structural tightness of the formed panel during operation. The detection system can automatically identify subtle defects such as uneven thickness, local hollowing and surface scratches, and feed back data to the control system for real-time parameter adjustment, realizing closed-loop production control and effectively reducing the defective rate of products. The qualified finished panels are automatically conveyed to the stacking platform through the transmission system, and the mechanical stacking device realizes orderly stacking and arrangement according to the preset stacking specifications, avoiding panel collision and extrusion deformation during stacking. The integrated setting of detection and stacking realizes the automation of the whole production process from raw material feeding to finished product output, greatly reducing manual intervention and improving production consistency and efficiency.
The technological advantages of the steel structure rockwool sandwich panel line are fully reflected in production efficiency, product performance stability and production flexibility. In terms of production efficiency, the fully continuous automated production mode breaks through the speed limit of traditional intermittent production. The coordinated operation of each functional unit realizes uninterrupted production, greatly improving the single-line output capacity, which can meet the large-scale material supply needs of industrial parks, public buildings, cold storage facilities and other large engineering projects. In terms of product performance, the precise parameter control system of the production line ensures that the density, thickness, bonding strength and thermal insulation performance of each batch of panels are highly consistent. The vertical fiber structure of rock wool and high-strength composite bonding process make the finished panels have excellent fire resistance, thermal insulation, sound insulation and compressive resistance, which can adapt to complex and changeable building use environments. In terms of production flexibility, the production line can adjust process parameters and cutting specifications according to different user needs, realizing flexible production of panels with different thicknesses and sizes, and meeting the personalized construction needs of different building types.
In terms of equipment operation and maintenance design, the steel structure rock wool sandwich panel manufacturing line adopts modular structural layout, with each functional unit relatively independent and coordinated with each other. This modular design facilitates daily inspection, maintenance and partial component replacement, effectively reducing equipment failure rate and maintenance cost. The core transmission and pressing components are made of high-strength wear-resistant materials, which can maintain stable operation state under long-term high-load production conditions and extend the overall service life of the equipment. The intelligent control system adopts visualized operation interface, which can realize one-key setting of production parameters, real-time monitoring of equipment operation status and automatic alarm of abnormal faults. The simple and efficient operation mode reduces the professional threshold for equipment operation, enabling production personnel to quickly master the production adjustment and daily operation management work.
From the perspective of industry application and market value, the popularization and application of steel structure rock wool sandwich panel production machine have greatly promoted the standardized development of the building energy-saving material industry. The high-performance panels produced by the line have become the preferred enclosure material for modern steel structure buildings, widely used in industrial workshops, logistics warehouses, clean workshops, public facility buildings and low-carbon energy-saving buildings. Compared with traditional building wall and roof materials, the panels produced by this production line have lighter self-weight, higher structural strength and better comprehensive energy-saving effect, which can effectively reduce the structural load of buildings, shorten the construction cycle and reduce the overall construction cost of projects. At the same time, the rock wool core material has excellent inorganic fireproof performance, which can significantly improve the fire safety level of buildings, while its efficient thermal insulation performance can reduce the energy consumption of building heating and cooling, and contribute to the energy-saving and low-carbon transformation of the construction industry.
With the continuous improvement of building energy-saving standards and building safety specifications, the market has put forward higher requirements for the performance diversity and production precision of rock wool sandwich panels. The steel structure rock wool sandwich panel line is also constantly upgrading and iterating in technology, developing towards higher intelligence, higher precision and more energy-saving production. The upgraded production system realizes more refined parameter control, can adapt to the production of new composite materials, and further optimize the structural performance and service life of finished panels. At the same time, the intelligent data management function of the new generation production line can record and analyze production data in real time, realize predictive maintenance of equipment and statistical analysis of product quality, help enterprises optimize production processes, improve production efficiency and product qualification rate, and enhance the core competitiveness of enterprises in the market.
In conclusion, the steel structure rock wool sandwich panel production line as an efficient and intelligent integrated production equipment for modern building energy-saving materials, covers the whole process of raw material pretreatment, core material shaping, composite pressing, precise cutting and finished product sorting, with advanced production technology, stable operation performance and flexible production capacity. It not only solves many pain points in traditional panel production, such as low efficiency, unstable quality and single product type, but also provides high-quality, high-performance and standardized building envelope materials for the construction industry. With the continuous development of building industrialization and green building concepts, this type of sandwich panel machinery will be more widely used in the field of building material manufacturing, and continuously drive the upgrading of supporting technologies for green, energy-saving and safe modern buildings, laying a solid equipment foundation for the high-quality development of the construction industry.
