sandwich panel line
The overall structure of the rock wool sandwich panel production line adopts a modular integrated design, with a complete and coherent production layout covering raw material processing, surface material molding, core material arrangement, composite bonding, constant temperature curing, fixed-length cutting and finished product stacking. The whole production process realizes streamlined operation, and all links are coordinated and matched to ensure the continuity and stability of production. The basic configuration of the production line includes an automatic unwinding unit, precision roll forming unit, preheating treatment unit, rock wool core material conveying and finishing unit, glue spraying and composite lamination unit, double-belt constant temperature molding unit, numerical control cutting unit and automatic stacking unit. Each functional unit is independently optimized in structure and coordinated in operation, which can adapt to the production requirements of different panel thicknesses, widths and structural specifications, and meets the personalized material needs of different building engineering projects.
Raw material pretreatment is the primary link to ensure the excellent performance of finished panels, and the rock wool sandwich panel line has set up standardized processing procedures for both surface protective materials and internal rock wool core materials. The surface materials used for building sandwich panels are mostly metal sheet materials with good weather resistance and structural strength. The unwinding system of the production line can stably release coiled sheet materials at a uniform speed, and is equipped with a deviation correction structure to avoid material deviation during transmission, ensuring the flatness and dimensional accuracy of subsequent molding. After unwinding, the sheet materials enter the roll forming unit, through multi-group precision roller sequential pressing, bending and shaping, the flat sheet is processed into the required plate structure with edge closing and connecting structures. This cold roll forming process avoids the structural damage of materials caused by high-temperature processing, maintains the mechanical strength and surface integrity of the sheet, and lays a foundation for the overall structural stability of the composite panel.
The treatment process of rock wool core materials determines the core functional performance of the sandwich panel, including fire resistance, thermal insulation and sound absorption. The rock wool raw materials used in the production line are made of natural basalt and other mineral raw materials through high-temperature melting and centrifugal fiber forming. Before composite molding, the rock wool sandwich panel machine is equipped with special core material sorting, slitting and arranging equipment, which can cut the bulk rock wool wool into uniform strip core materials according to production specifications, and complete automatic flipping and dense arrangement. This processing method effectively solves the problems of loose core material arrangement and uneven internal density of traditional panels, ensures that the rock wool core layer is fully filled without gaps, and maximizes the thermal insulation and fire resistance performance of rock wool materials. At the same time, the core material conveying system is equipped with a dust removal structure, which can clean the floating fibers and impurities on the surface of the rock wool core material, improve the bonding tightness between the core material and the surface material, and avoid hollowing and delamination of the finished panel during long-term use.
Gluing composite and constant temperature lamination are the key processes to realize the integrated molding of sandwich panels. The rock wool board production line adopts an automatic circulating glue spraying system, which can evenly spray high-performance adhesive on the inner surfaces of the upper and lower surface materials and the contact surface of the rock wool core material. The intelligent glue spraying system can automatically adjust the glue amount and spraying range according to different plate thicknesses and production speeds, ensuring uniform glue layer distribution and moderate thickness, which not only guarantees the bonding strength of the composite structure, but also avoids excessive glue accumulation leading to material waste and panel surface defects. After the completion of glue spraying and core material laying, the semi-finished plates enter the double-belt composite lamination unit. Through precise pressure control and constant temperature heating treatment, the upper and lower surface materials and the rock wool core material are closely bonded as a whole.
The constant temperature curing environment in the lamination process is precisely regulated by the production line's internal temperature control system, which can maintain a stable temperature range in the molding area, so that the adhesive can fully react and solidify, forming a high-strength integrated composite structure. The double-belt transmission mode ensures that the stress on the plate surface is uniform during the lamination process, effectively preventing plate deformation, warping and uneven thickness. The whole composite process does not require manual intervention, and the matching degree of pressure, temperature and transmission speed is intelligently matched, which greatly improves the bonding consistency and overall flatness of batch products. Compared with the traditional room-temperature natural bonding process, the integrated thermocompression molding process shortens the curing cycle, improves production efficiency, and significantly enhances the structural stability and service life of the finished panel.

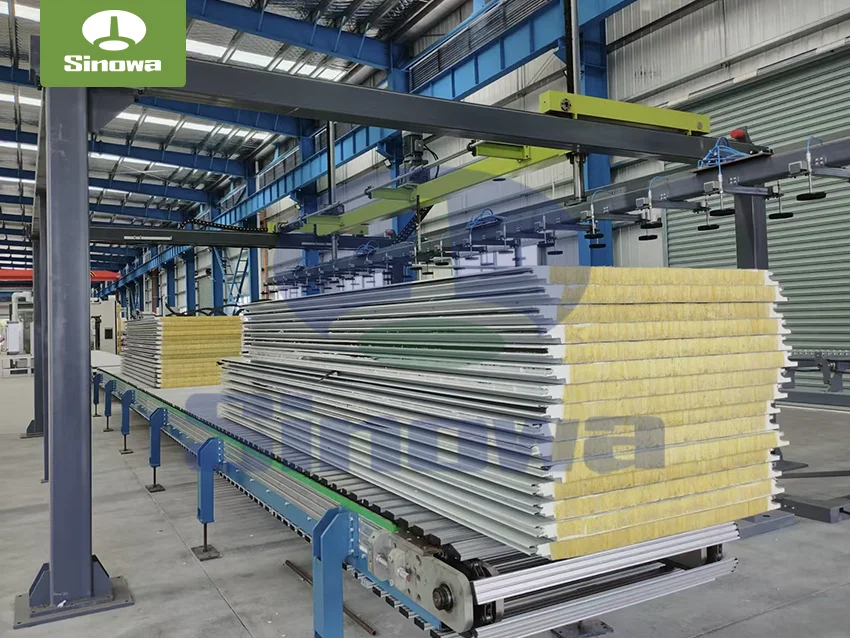

The fixed-length cutting and post-processing system of the rockwool sandwich panel production line realizes the precise finalization of finished products. After the integrated thermocompression molding, the continuous plate body is transmitted to the numerical control cutting unit. The high-precision cutting system can automatically identify the set dimensional parameters, complete fixed-length cutting and edge trimming operations, and ensure that the length, width and edge flatness of each finished panel meet unified production standards. The cutting equipment adopts a stable mechanical cutting structure, which can realize smooth cutting sections without burrs, avoiding secondary processing procedures. After cutting, the finished panels are automatically transmitted to the stacking unit, which completes orderly stacking and arrangement through mechanical clamping and lifting structures, realizing seamless connection from raw material input to finished product output.
In terms of production performance, the fully automated operation mode of the rock wool sandwich panel production machine greatly optimizes the production efficiency and product quality stability of building insulation panels. The whole production process is controlled by an integrated programmable system, which can realize automatic operation of all links from raw material unwinding to finished product stacking. The production speed can be adjusted according to production demands, meeting the batch production requirements of large-scale construction projects. The modular structural design makes the production line occupy a reasonable space, and the equipment layout is compact and orderly, which is convenient for daily maintenance and workshop management. In addition, the production line has a flexible production capacity, which can quickly switch production specifications according to different building needs, and produce wall panels, roof panels and partition panels with different thicknesses and structural types, adapting to the diverse application scenarios of modern buildings.
The building rock wool sandwich panels produced by this professional production line have outstanding comprehensive performance, which perfectly fits the development needs of modern green and safe buildings. Relying on the excellent high-temperature resistance and non-combustible characteristics of rock wool core materials, the panels have excellent fire resistance, which can effectively block the spread of flame and heat flow in case of building fire, reduce fire hazards, and improve the overall fire safety level of buildings. The porous fibrous structure of rock wool materials gives the panels excellent thermal insulation performance, which can effectively isolate indoor and outdoor heat transfer, reduce the energy consumption of building heating and cooling, and achieve the effect of energy saving and emission reduction. At the same time, the internal fiber structure can absorb and weaken sound waves, forming a good sound insulation and noise reduction effect, creating a quiet and comfortable indoor environment for commercial buildings, office buildings, industrial workshops and public service buildings.
In terms of structural performance, the composite structure formed by the metal surface layer and rock wool core layer makes the panel have high overall strength and impact resistance. The surface metal layer has good weather resistance, corrosion resistance and anti-aging ability, which can resist the erosion of external wind, rain, ultraviolet rays and other natural environments, and maintain stable structural performance and beautiful appearance for a long time. The integrated composite structure avoids the problem of easy separation and damage of traditional assembled building materials, and the overall structural stability is strong, which can adapt to different climatic environments and building structural stress requirements. In addition, the lightweight characteristics of the sandwich panel reduce the self-weight of the building enclosure structure, reduce the load pressure of the building foundation and main structure, and effectively reduce the overall construction cost and structural design difficulty of the project.
In the field of construction application, rock wool sandwich panels produced by professional production lines have extremely high construction adaptability. The finished panels have standardized sizes and neat structures, which are convenient for on-site assembly and installation. The modular installation method greatly simplifies the construction process, shortens the construction cycle of building enclosure and insulation projects, and improves the overall construction efficiency. Compared with traditional on-site insulation laying and wall building processes, the factory prefabricated production mode of the production line realizes standardized production of building materials, avoids the quality instability caused by on-site manual operation, and improves the overall construction quality of buildings. These panels are widely used in the enclosure and insulation systems of industrial workshops, logistics warehouses, commercial complexes, medical and educational buildings, and also suitable for the functional transformation and energy-saving renovation of old buildings, with extremely wide market application space.
From the perspective of environmental protection and sustainable development, the rock wool sandwich panel making machine conforms to the development trend of green building materials industry. The main raw material rock wool is made of natural mineral materials, which is non-toxic and harmless, and will not produce harmful substances during production and use. The production line is optimized in terms of energy consumption and material utilization. The intelligent glue spraying and precise cutting technologies reduce material waste in the production process, and the closed production structure reduces dust and pollutant emission in the processing process, realizing clean production. In the later use stage of the product, the excellent energy-saving performance can effectively reduce the long-term energy consumption of the building, and the material can be recycled and reused after the end of the service life, which has good environmental protection benefits and meets the dual requirements of modern buildings for functional performance and ecological environmental protection.
With the continuous upgrading of construction industry standards and the increasing demand for high-performance green building materials, the rockwool sandwich panel machinery is also constantly evolving in technological optimization. The modern production line is developing towards higher automation, more precise control and more diversified production. The intelligent monitoring system can realize real-time collection and analysis of production parameters, automatically adjust equipment operating status according to production conditions, predict and eliminate potential equipment faults, and ensure the continuity and stability of batch production. The optimized composite process further improves the bonding fastness and durability of the panel structure, and the upgraded forming technology makes the product surface more flat and the dimensional accuracy higher, which can meet the higher standard requirements of high-end buildings and special functional buildings for enclosure materials.
In conclusion, the rockwool sandwich panel manufacturing line for buildings is a highly efficient, intelligent and environmentally friendly professional production system, which integrates advanced mechanical manufacturing technology and building material performance optimization technology. It realizes standardized, large-scale and high-quality production of rock wool sandwich panels through streamlined and automated production processes. The produced building panels have outstanding advantages in fire safety, thermal insulation, sound insulation, structural stability and construction convenience, and can fully meet the diverse application needs of modern construction engineering. As an important technical equipment supporting the development of green buildings, this production line not only improves the production level of building insulation enclosure materials, but also promotes the upgrading of the overall performance and construction quality of modern buildings, and plays an important role in promoting the high-quality development of the construction industry.
